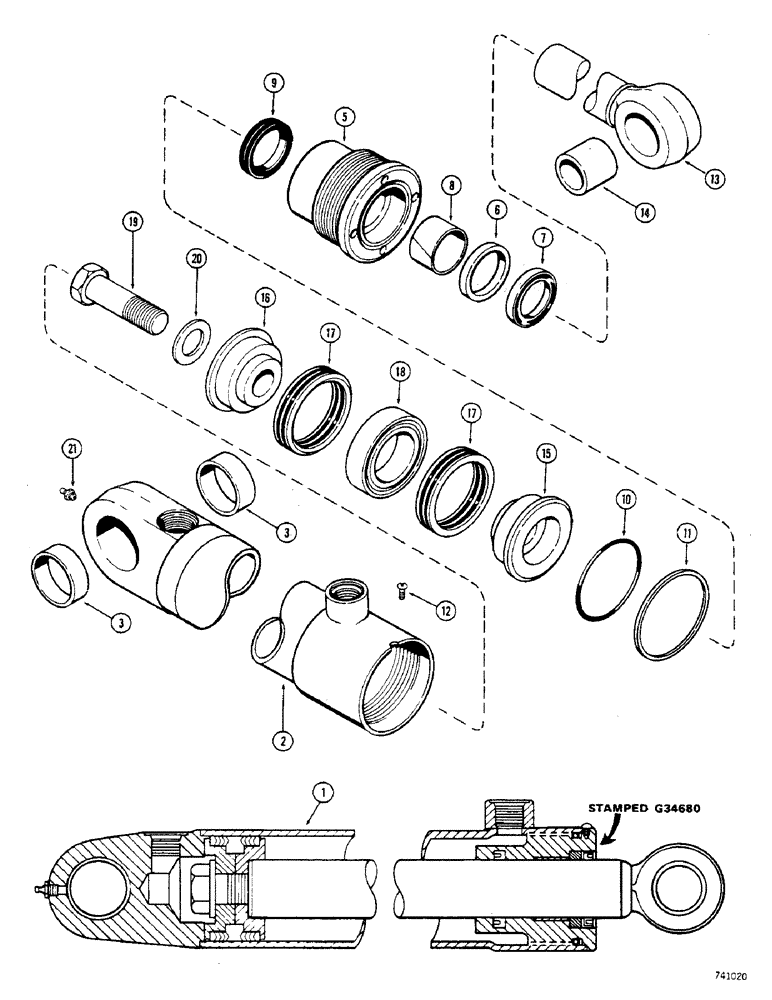

Запчасти Case 32 (135C) - G34680 BACKHOE STABILIZER CYLINDER, GLAND IS STAMPED WITH CYLINDER PART NUMBER

1

G34680

CYLINDER BLOCK

CYLINDER ASSY. - stabilizer (3-1/2" dia. x 11-1/2" stroke), Includes: Ref. 2 - 21

2шт.

2

D36680

TUBE

ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

G34623

GLAND

ASSY. - (Hand stamp for identification), Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod (1-3/4" x 2-1/4" x 5/16")

1шт.

Part of seal kit P/N G34655

1шт.

8

G34621

BUSHING

BEARING - center

1шт.

Part of seal kit P/N G34655

1шт.

9

D36970

CUP

SEAL - piston rod (1-3/4" x 2-1/4" x 7/16")

1шт.

Part of seal kit P/N G34655

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2" x 3-3/4" x 1/8")

1шт.

Part of seal kit P/N G34655

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G34655

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

13

G34678

ROD

ASSY. - piston (1-3/4" dia.), Includes: Ref. 14

1шт.

14

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- piston rod

1шт.

15

G33520

PISTON

- split (Rod end)

1шт.

16

D28367

PISTON

- split (Bolt end)

1шт.

17

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" type)

2шт.

Part of seal kit P/N G34655

1шт.

18

D47208

RING

- center bearing

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/8" x 1-7/8" x 1/8")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

G34655

SEAL

KIT - cylinder repair, Includes Refs. 7 - 11 and 17

1шт.
