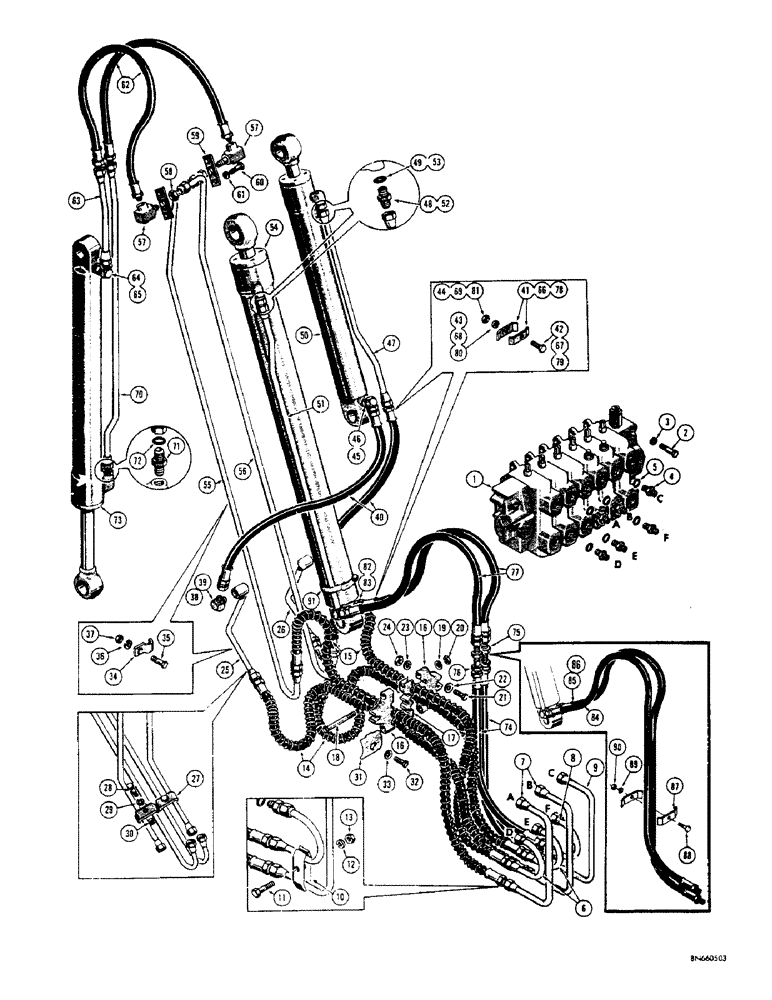

Запчасти Case 32 (132) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS, (BACKHOE S/N 4101401 AND AFTER)

1

D30776

VALVE - basic 32 backhoe control, used before backhoe s/n 4102456 (When stock is exhausted use D36122) Parts list Figure 110

1шт.

D36122

VALVE - basic 32 backhoe control, used on backhoe s/n 4102456 and after (Parts list Figure 118)

1шт.

D36658

VALVE - model 32-S backhoe control (Parts list Figure 125-A)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4" (Use on basic 32 backhoe model)

3шт.

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2" (Use on model 32-S backhoe)

3шт.

3

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - str. (3/4" JIC), Incl. Ref. 5

6шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, 218-5064

1шт.

6

D30771

TUBE

- from lower valve port

3шт.

7

D30773

TUBE

- from uppper valve port

3шт.

8

36923

CHAIN

TUBE - from lower valve port to boom cylinder (Use on model 32-S backhoe)

1шт.

9

D36654

TUBE

- from upper valve port to boom cylinder (Use on model 32-S backhoe)

1шт.

10

D20045

PLATE ASSY.

CLAMP - D30771 and D30773 tubes

6шт.

11

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

3шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- med. sect. lock (5/16")

3шт.

13

131-4

LOCK NUT,5/16"-18, GB

NUT - lock (5/16" - 18 NC)

3шт.

14

D30786

HOSE

- valve to crowd cyl. (1/2" I.D. x 1" O.D. x 40" long)

2шт.

15

D30788

HOSE

- valve to bucket cyl. (1/2" I.D. x 1" O.D. x 49" long)

2шт.

16

D26125

CLAMP

- hoses at tower, ends

2шт.

17

D26124

HOSE

CLAMP - hoses at tower, center

1шт.

18

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

HHCS - 5/16" - 18 NC x 3-1/4"

2шт.

19

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

20

131-351

LOCK NUT,5/16"-18, GA

NUT - hex., lock (5/16" - 18 NC)

2шт.

21

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

22

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16")

2шт.

23

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

24

131-351

LOCK NUT,5/16"-18, GA

NUT - hex., lock (5/16" - 18 NC)

2шт.

25

D30781

TUBE - intermediate, to crowd cyl. (L.H.)

1шт.

26

D30782

TUBE - intermediate, to crowd cyl. (R.H.)

1шт.

27

32978

PLATE ASSY.

CLAMP - plate, bucket and crowd intermediate tube

4шт.

28

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

29

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16")

2шт.

30

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16")

2шт.

31

D30779

CLAMP

- hose, on bottom of boom

1шт.

32

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

1шт.

33

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

34

D30604

CLAMP

- crowd and bucket cyl. tubes

4шт.

35

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

36

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

4шт.

37

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

4шт.

38

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º (3/4" JIC), Incl. Ref. 39

2шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, 218-5108 elbow

1шт.

40

D31794

HOSE ASSY.

HOSE - to crowd cyl. (3/4" I.D. x 1-1/4" O.D. x 29" long)

2шт.

41

D20045

PLATE ASSY.

CLAMP - plate, at crowd cyl.

2шт.

42

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

HHCS - 5/16" - 18 NC x 2-3/4"

1шт.

43

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

44

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

45

D25567

ELBOW

- 90 degrees (3/4" JIC x 5/8" JIC), Includes: Ref. 46

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25567 elbow

1шт.

47

D29026

TUBE

- crowd cyl.

1шт.

48

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - 3/4" JIC x 5/8" JIC, Includes: Ref. 49

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, connector

1шт.

50

D27752

CYLINDER ASSY.

CYLINDER - crowd (Parts list Figure 139A)

1шт.

51

D34254

TUBE

- boom cyl.

1шт.

52

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - 3/4" JIC x 5/8" JIC, Includes: Ref. 53

1шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 connector

1шт.

54

D35435

CYLINDER

- boom (Parts list Figure 138)

1шт.

55

D30798

TUBE

- intermediate, to bucket cyl. bottom port

1шт.

56

D30800

TUBE

- intermediate, to bucket cyl. top port

1шт.

57

D25568

ELBOW UNION

ELBOW - 90 degree special, on boom

2шт.

58

D26231

NUT

- jam, elbow (1-1/16" - 12 NF)

2шт.

59

D25585

PLATE - spacer

2шт.

60

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

61

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

4шт.

62

D28705

HOSE

- to bucket cyl. (3/4" I.D. x 1-1/4" O.D. x 40" long)

2шт.

63

D28701

TUBE

- to upper cyl. port

1шт.

64

D29620

ELBOW

- upper port, Includes: Ref. 65

1шт.

65

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D29620 elbow

1шт.

66

D20045

PLATE ASSY.

CLAMP - plate, bucket cyl. tubes

2шт.

67

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

68

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16")

1шт.

69

131-4

LOCK NUT,5/16"-18, GB

NUT - lock (5/16" - 18 NC)

1шт.

70

D29022

TUBE

- to lower cyl. port

1шт.

71

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - 3/4" JIC x 5/8" JIC, Includes: Ref. 72

1шт.

72

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 connector

1шт.

73

D30769

HYDRAULIC CYLINDER

CYLINDER - bucket (Parts list Figure 139C)

1шт.

74

D35902

HOSE ASSY.

HOSE - from valve (1/2" I.D. x 18" long), boom cylinder hyd (early production)

2шт.

75

D34246

UNION - bulkhead (5/8" JIC), boom cylinder hyd (early production)

2шт.

76

50875

NUT

- lock (7/8" - 14 NF), boom cylinder hyd (early production)

2шт.

77

D34248

HOSE ASSY.

HOSE - to cylinder (1/2" I.D. x 36-1/2" long), boom hyd (early production)

2шт.

78

D20045

PLATE ASSY.

CLAMP - plate, boom cyl. hoses, hyd (early production)

2шт.

79

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Boom cylinder hyd (Early production) Hex, 5/16"-18 x 2 1/4", G5

1шт.

80

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16"), boom cylinder hyd (early production)

1шт.

81

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), boom cylinder hyd (early production)

1шт.

82

D34247

CONNECTOR, ELEC

CONNECTOR - 3/4" JIC x 5/8" JIC, boom cylinder hyd (early production)

1шт.

83

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D34247 connector, boom cylinder hyd (early production)

1шт.

84

D38124

HOSE

- to boom cyl. tube (1/2" I.D. x 57-1/4" long), hyd (late production)

1шт.

85

D38125

HOSE

- to boom cyl. port (1/2" I.D. x 58-1/2" long), hyd (late production), Includes: Ref. 86

1шт.

86

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D38125 hose, boom cylinder hyd (late production)

1шт.

87

R15257

CLAMP

- plate, boom cyl. hoses, hyd (late production)

2шт.

88

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC 1-1/2", Boom cylinder hyd (Late production)

1шт.

89

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16"), boom cylinder hyd (late production)

1шт.

90

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16"), boom cylinder hyd (late production)

1шт.

91

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - cyl. tube, boom hyd (late production)

1шт.
