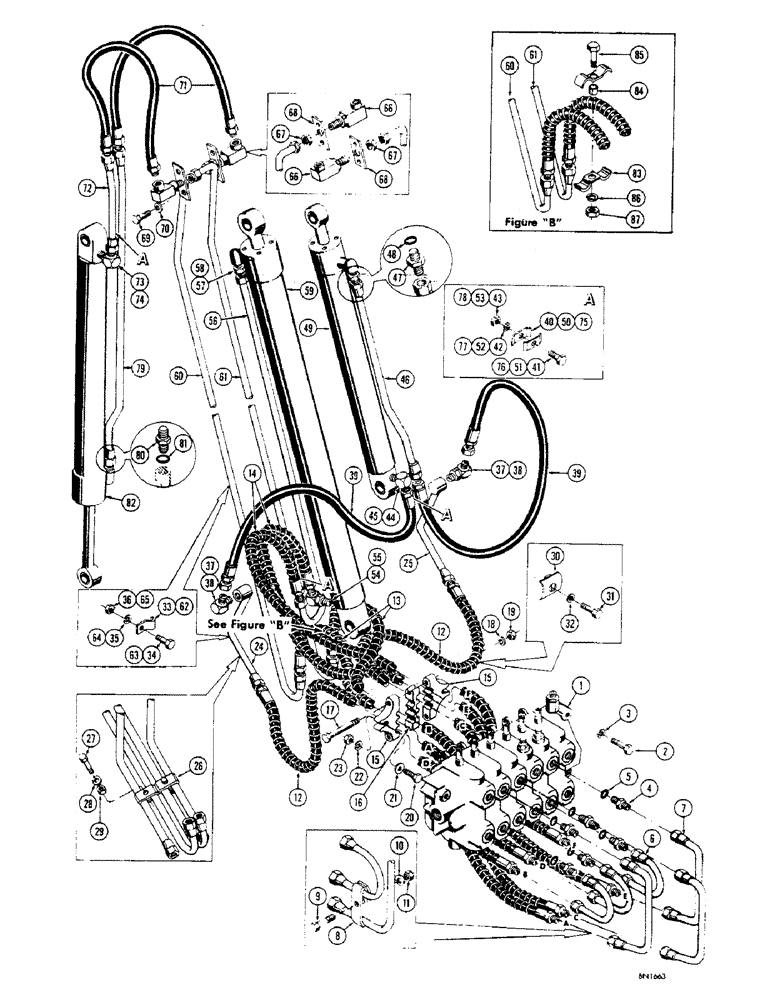

Запчасти Case 32 (128) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS, (BEFORE BACKHOE S/N 4101401

1

D30776

VALVE - control (Parts list Figure110) When stock is exhausted, use D36122 (See Figure 118)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

3

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - str. (3/4" JIC x 3/4" JIC), Incl. Ref. 5

6шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, 218-5064 con.

1шт.

6

D30771

TUBE

- from lower valve ports

3шт.

7

D30773

TUBE

- from upper valve ports

3шт.

8

D20045

PLATE ASSY.

CLAMP - plate, tubes from valve

6шт.

9

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

3шт.

10

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

3шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

3шт.

12

D30786

HOSE

- valve to crowd cyl. (1/2" I.D. x 1" O.D. x 40" long)

2шт.

13

D30788

HOSE

- valve to bucket cyl. (1/2" I.D. x 1" O.D. x 49" long)

2шт.

14

D30790

HOSE

- valve to boom cyl. (1/2" I.D. x 1" O.D. x 50" long)

2шт.

15

D26125

CLAMP

- at tower, ends

2шт.

16

D26124

HOSE

CLAMP - at tower, center

1шт.

17

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

HHCS - 5/16" - 18 NC x 3-1/4"

2шт.

18

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

19

131-351

LOCK NUT,5/16"-18, GA

NUT - hex., lock (5/16" - 18 NC)

2шт.

20

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16")

2шт.

22

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

23

131-351

LOCK NUT,5/16"-18, GA

NUT - hex., lock (5/16" - 18 NC)

2шт.

24

D30781

TUBE - in boom, to crowd cyl. (L.H.)

1шт.

25

D30782

TUBE - in boom, to crowd cyl. (R.H.)

1шт.

26

32978

PLATE ASSY.

CLAMP - plate, tubes in boom

4шт.

27

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

28

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

30

D30779

CLAMP

- hose, on bottom of boom

1шт.

31

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

1шт.

32

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

33

D30604

CLAMP

- tube to crowd cyl.

2шт.

34

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

2шт.

36

25-106

NUT,3/8"-16, G5

- hex., (3/8" - 16 NC)

2шт.

37

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º (3/4" JIC x 3/4" JIC), Incl. Ref. 38

2шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, 218-5108 elbow

1шт.

39

D31794

HOSE ASSY.

HOSE - elbow to crowd cyl. (3/4" I.D. x 1-1/4" O.D. x 29" long)

2шт.

40

D20045

PLATE ASSY.

CLAMP - plate, D30784 hoses

4шт.

41

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

42

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

1шт.

43

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

44

D25567

ELBOW

- 90 degree (3/4" JIC x 5/8" JIC), Includes: Ref. 45

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25567 elbow

1шт.

46

D29026

TUBE

- crowd cyl.

1шт.

47

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - tube to cyl. (3/4" JIC x 5/8" JIC), Includes: Ref. 48

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 connector

1шт.

49

D27752

CYLINDER ASSY.

CYLINDER - crowd hyd. (Parts list Figure 139A)

1шт.

50

D20045

PLATE ASSY.

CLAMP - plate, boom cyl. hoses

2шт.

51

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

52

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

1шт.

53

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

54

D25567

ELBOW

- 90 degree (3/4" JIC x 5/8" JIC), Includes: Ref. 55

1шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25567 elbow

1шт.

56

D29020

TUBE

- boom cyl.

1шт.

57

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - tube to cyl. (3/4" JIC x 5/8" JIC), Includes: Ref. 58

1шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 connector

1шт.

59

D27751

CYLINDER ASSY.

CYLINDER - boom (Parts list Figure 138)

1шт.

60

D30798

TUBE

- in boom, to bucket cyl. (L.H.)

1шт.

61

D30800

TUBE

- in boom, to bucket cyl. (R.H.)

1шт.

62

D30604

CLAMP

- bucket cyl. tubes

2шт.

63

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

64

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

2шт.

65

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

66

D25568

ELBOW UNION

ELBOW - 90 degree special, on boom

2шт.

67

D26231

NUT

- jam, elbow (1-1/16" - 12 NF)

2шт.

68

D25585

PLATE - spacer

2шт.

69

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

70

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

4шт.

71

D28705

HOSE

- elbow to bucket cyl. (3/4" I.D. x 1-1/4" O.D. x 40" long)

2шт.

72

D28701

TUBE

- to upper cyl. port

1шт.

73

D29620

ELBOW

- upper cyl. port, Includes: Ref. 74

1шт.

74

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25566 elbow

1шт.

75

D20045

PLATE ASSY.

CLAMP - plate, bucket cyl. tubes

2шт.

76

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

77

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

1шт.

78

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

79

D29022

TUBE

- to lower cyl. port

1шт.

80

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - lower cyl. port (3/4" JIC x 5/8" JIC), Includes: Ref. 81

1шт.

81

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 connector

1шт.

82

D30769

HYDRAULIC CYLINDER

CYLINDER - bucket (Parts list Figure 139C)

1шт.

83

R15257

CLAMP

- plate, plastic coated (Bucket cyl. hoses in boom)

2шт.

84

O5652HT

SPACER - clamp spacing

1шт.

85

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

86

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

1шт.

87

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.
