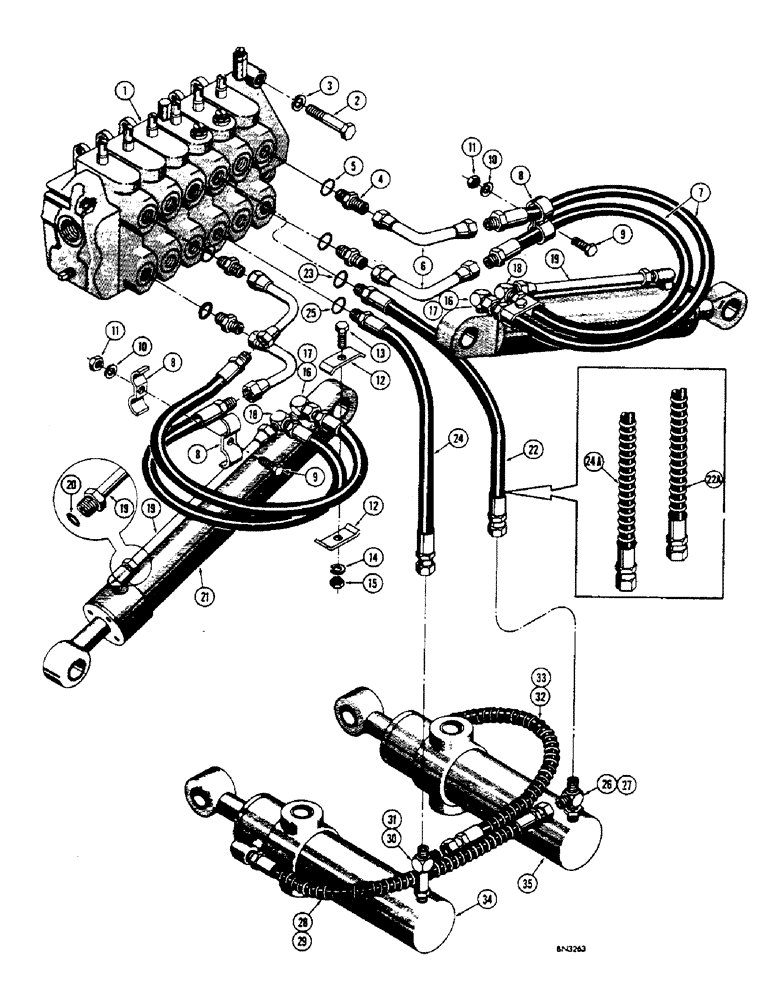

Запчасти Case 32 (126) - SWING AND STABILIZER CYLINDER HYDRAULICS

1

D30776

VALVE - backhoe control (Parts list Figure 110) Used before backhoe sn. 4102456 (When stock is exhausted, use D36122)

1шт.

DE36122

VALVE - backhoe control (Parts list Figure 118) Used on backhoe sn. 4102456 and after

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC - 3-3/4"

3шт.

3

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

3шт.

4

D31544

CONNECTOR - str. (3/4" JIC x 1/2" JIC), stabilizer cyl hyd's, Includes: Ref. 5

4шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D31544 connector, stabilizer cyl hyd's

1шт.

6

D31538

TUBE

from valve, stabilizer cyl hyd's

4шт.

7

D31540

HOSE

to stab cyl. (3/8" I.D. x 7/8" O.D. x 21-1/8"), stabilizer cyl hyd's

4шт.

8

R15257

CLAMP

plate, rubberized, stabilizer cyl hyd's

4шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hHCS - 5/16" - 18 NC x 1-1/4", stabilizer cyl hyd's

2шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

std. wrot (5/16"), stabilizer cyl hyd's

2шт.

11

131-4

LOCK NUT,5/16"-18, GB

hex., lock (5/16" - 18 NC), stabilizer cyl hyd's

2шт.

12

32978

PLATE ASSY.

CLAMP - plate, at cyl., stabilizer cyl hyd's

4шт.

13

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4", stabilizer cyl hyd's

2шт.

14

95-5

WASHER,3/8" x 7/8" x .083"

std. wrot (5/16"), stabilizer cyl hyd's

2шт.

15

131-4

LOCK NUT,5/16"-18, GB

hex., lock (5/16" - 18 NC), stabilizer cyl hyd's

2шт.

16

D23974

ELBOW

adj., 90 degree street (3/8" NPT x 5/8" JIC) Rear cyl. port, stabilizer cyl hyd's, Includes: Ref. 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - D29313 elbow, stabilizer cyl hyd's

1шт.

18

D26361

FITTING

ELBOW - 90 degree, hose to tube on cyl. (3/8" NPT x 5/8" JIC), stabilizer cyl hyd's

2шт.

19

D27859

TUBE

to front cyl. port, stabilizer cyl hyd's, Includes: Ref. 20

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - D27859 tube, stabilizer cyl hyd's

1шт.

21

D27754

CYLINDER

stabilizer (Parts list Figure 136), hyd's

2шт.

22

D30796

HOSE ASSY.

R.H. to upper valve port (1/2" I.D. x 1" O.D. x 22" long), swing cyl hyd

1шт.

22a

D32646

HOSE ASSY.

R.H. . to upper valve port (1/2" I.D. x 1" O.D. x 22" long) Used on units with Draft-O-Matic only, swing cyl hyd, Includes: Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - D30796 and D32646 hose, swing cyl hyd

1шт.

24

D30792

HOSE ASSY.

L.H. to lower valve port (1/2" I.D. x 1" O.D. x 23" long), swing cyl hyd

1шт.

24a

D32647

HOSE ASSY.

- L.H. . to lower valve port (1/2" I.D. x 1" O.D. x 23" long) Used on units with Draft-O-Matic only, swing cyl hyd, Includes: Ref. 25

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - D30792 and D32647 hose, swing cyl hyd

1шт.

26

D25137

TEE

adj. male, R.H. cyl. (5/8" JIC), swing cyl hyd, Includes: Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - D25137 tee, swing cyl hyd

1шт.

28

D30793

HOSE ASSY.

tee at R.H. . to front port of L.H. . (1/2" I.D. x 1" O.D. x 23" long), swing cyl hyd, Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - D30793 hose, swing cyl hyd

1шт.

30

D24568

TEE

adj. male, L.H. l. (5/8" JIC), swing cyl hyd, Includes: Ref. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - D24568 tee, swing cyl hyd

1шт.

32

D30795

HOSE

tee at L.H. . to front port of R.H. (1/2" I.D. x 1" O.D. x 23" long), swing cyl hyd, Includes: Ref. 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - D30795 hose, swing cyl hyd

1шт.

34

D30746

CYLINDER

L.H. (Parts list Figure 137C), swing hyd

1шт.

35

D30745

CYLINDER

R.H. (Parts list Figure 137C), swing hyd

1шт.
