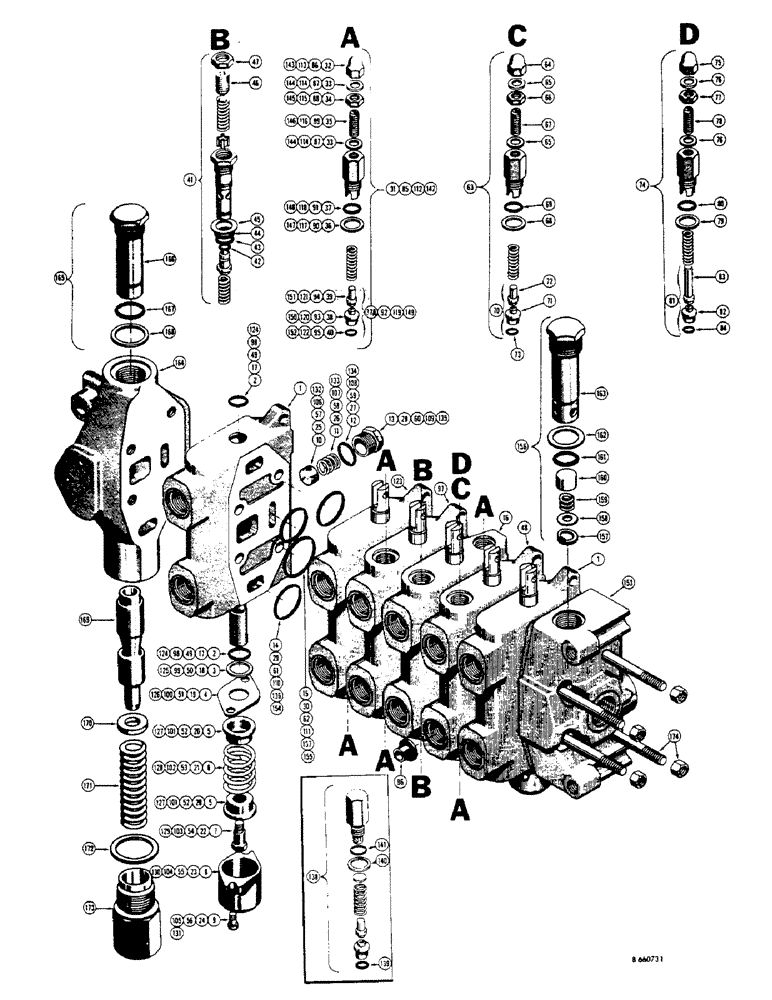

Запчасти Case 32 (118) - D36122 BACKHOE CONTROL VALVE

D36122

VALVE - control, backhoe, Includes: Ref. 1 - 174

1шт.

1

D26842

ELEMENT

SECTION - valve, stabilizer, Includes: Ref. 2 - 15

2шт.

2

O8416AB

X

SEAL - "O" ring, spool (For service of upper "O" ring, use D36830)

2шт.

D36830

RING

SEAL - quad ring

1шт.

3

D26829

RING

- backup

1шт.

4

D26830

PLATE

- retaining

1шт.

5

D26831

GUIDE

- spring

2шт.

6

D26832

SPRING

- centering

1шт.

7

D26833

BOLT

- stripper

1шт.

8

D26823

CAP

- valve

1шт.

9

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- mach., sltd. fill. hd. (1/4" - 20 NC x 3/4")

2шт.

10

D26824

SPOOL

POPPET - check valve

1шт.

11

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

12

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap

1шт.

13

D30696

CYLINDER END CAP

CAP - check valve

1шт.

14

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

QUAD RING - section

3шт.

15

905952R1

COTTER PIN,M3.2 x 50

QUAD RING - section

1шт.

16

D36597

X

SECTION - valve, swing, Includes: Ref. 17 - 47

1шт.

17

O8416AB

X

SEAL - "O" ring, spool (For service of upper "O" ring, use D36830)

2шт.

D36830

RING

SEAL - quad ring

1шт.

18

D26829

RING

- backup

1шт.

19

D26830

PLATE

- retaining

1шт.

20

D26831

GUIDE

- spring

2шт.

21

D26832

SPRING

- centering

1шт.

22

D26833

BOLT

- stripper

1шт.

23

D26823

CAP

- valve

1шт.

24

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- mach. sltd. fill. hd. (1/4" - 20 NC x 3/4")

2шт.

25

D26824

SPOOL

POPPET - check valve

1шт.

26

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

27

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap

1шт.

28

D30696

CYLINDER END CAP

CAP - check valve

1шт.

29

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

QUAD RING - section

3шт.

30

L35522

O-RING

QUAD RING - section

1шт.

31

D32557

CARTRIDGE

- secondary relief, adjustable, Includes: Ref. 32 - 40

1шт.

32

129-526

CROWN NUT,Low, 3/8" - 24

- cap, 3/8" - 24 NF

1шт.

33

D32560

X

GASKET - copper-lead

2шт.

34

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" - 24 NF

1шт.

35

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set, 3/8" - 24 NF x 1"

1шт.

36

D31450

WASHER

- gasket

1шт.

37

D26872

O-RING

SEAL - "O" ring, outer

1шт.

D39188

PACKAGE

KIT - seat and poppet, Includes: Ref. 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

SEAT - cartridge

1шт.

39

NSS

NOT SOLD SEPARAT

POPPET - cartridge

1шт.

40

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

41

D26838

FILTER

CARTRIDGE - relief, cross-over (Color code - brown) 1300 P.S.I. preset at factory, Includes: Ref. 42 - 47

2шт.

42

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, poppet

1шт.

43

D31412

O-RING

SEAL - "O" ring, shell (Lower)

1шт.

44

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

SEAL - "O" ring, shell (Upper)

1шт.

45

D26870

GASKET

WASHER - gasket

1шт.

46

D26878

X

SCREW - set, adjusting

1шт.

47

D26879

LOCK NUT

NUT - lock

1шт.

48

D39457

SECTION - valve, boom, Includes: Ref. 49 - 73

1шт.

49

O8416AB

X

SEAL - "O" ring, spool (For service of upper "O" ring use D36830)

2шт.

D36830

RING

SEAL - quad ring

1шт.

50

D26829

RING

- backup

1шт.

51

D26830

PLATE

- retaining

1шт.

52

D26831

GUIDE

- spring

2шт.

53

D26832

SPRING

- centering

1шт.

54

D26833

BOLT

- stripper

1шт.

55

D26823

CAP

- valve

1шт.

56

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- mach., sltd. fill. hd. (1/4" - 20 NC x 3/4")

2шт.

57

D26824

SPOOL

POPPET - check valve

1шт.

58

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

59

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap

1шт.

60

D30696

CYLINDER END CAP

CAP - check valve

1шт.

61

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

QUAD RING - section

3шт.

62

905952R1

COTTER PIN,M3.2 x 50

QUAD RING - section

1шт.

63

D32556

CARTRIDGE

- boom down pressure, relief adj. (Early production) Order D39454 cartridge for service, Includes: Ref. 64 - 73

1шт.

64

129-526

CROWN NUT,Low, 3/8" - 24

- cap (3/8" - 24 NF)

1шт.

65

D32560

X

GASKET - copper-lead

2шт.

66

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam (3/8" - 24 NF)

1шт.

67

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set, 38" - 24 NF x 1"

1шт.

68

D31450

WASHER

- gasket

1шт.

69

D26872

O-RING

SEAL - "O" ring, outer

1шт.

70

D40191

X

KIT - seat and poppet, Includes: Ref. 71 - 73

1шт.

71

NSS

NOT SOLD SEPARAT

SEAT - cartridge

1шт.

72

NSS

NOT SOLD SEPARAT

POPPET - cartridge

1шт.

73

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

74

D39454

CARTRIDGE

- boom down pressure, relief adj. (Late production) See D32556 cartridge, Includes: Ref. 75 - 95

1шт.

75

129-526

CROWN NUT,Low, 3/8" - 24

- cap (3/8" - 24 NF)

1шт.

76

23150

WASHER

GASKET - copper-lead

2шт.

77

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam (3/8" - 24 NF)

1шт.

78

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, 3/8" - 24 NF x 1"

1шт.

79

D31450

WASHER

GASKET - copper

1шт.

80

D26872

O-RING

SEAL - "O" ring

1шт.

81

D40189

PACKAGE

KIT - seat and poppet, Includes: Ref. 82 - 84

1шт.

82

NSS

NOT SOLD SEPARAT

SEAL - cartridge

1шт.

83

NSS

NOT SOLD SEPARAT

POPPET - cartridge

1шт.

84

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

85

D32557

CARTRIDGE

- secondary relief, adjustable, Includes: Ref. 86 - 95

1шт.

86

129-526

CROWN NUT,Low, 3/8" - 24

- cap (3/8" - 24 NF)

1шт.

87

D32560

X

GASKET - copper-lead

2шт.

88

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" - 24 NF

1шт.

89

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set, 3/8" - 24 NF x 1"

1шт.

90

D31450

WASHER

- gasket

1шт.

91

D26872

O-RING

SEAL - "O" ring, outer

1шт.

92

D39188

PACKAGE

KIT - seat and poppet, Includes: Ref. 93 - 95

1шт.

93

NSS

NOT SOLD SEPARAT

SEAT - cartridge

1шт.

94

NSS

NOT SOLD SEPARAT

POPPET - cartridge

1шт.

95

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

96

D27565

VALVE

CHECK - restrictor (7/32" dia. orifice)

1шт.

97

D36812

SECTION - valve, crowd, Includes: Ref. 98 - 122

1шт.

98

O8416AB

X

SEAL - "O" ring, spool (For service of upper "O" ring, use D36830)

2шт.

D36830

RING

SEAL - quad ring

1шт.

99

D26829

RING

- backup

1шт.

100

D26830

PLATE

- retaining

1шт.

101

D26831

GUIDE

- spring

2шт.

102

D26832

SPRING

- centering

1шт.

103

D26833

BOLT

- stripper

1шт.

104

D26823

CAP

- valve

1шт.

105

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- mach., sltd. fill. hd. (1/4" - 20 NC x 3/4")

2шт.

106

D26824

SPOOL

POPPET - check valve

1шт.

107

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

108

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap

1шт.

109

D30696

CYLINDER END CAP

CAP - check valve

1шт.

110

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

QUAD RING - section

3шт.

111

L35522

O-RING

QUAD RING - section

1шт.

112

D32557

CARTRIDGE

- secondary relief, adjustable, Includes: Ref. 113 - 122

2шт.

113

129-526

CROWN NUT,Low, 3/8" - 24

- cap (3/8" - 24 NF)

1шт.

114

D32560

X

GASKET - copper-lead

2шт.

115

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam (3/8" - 24 NF)

1шт.

116

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set, 3/8" - 24 NF x 1"

1шт.

117

D31450

WASHER

- gasket

1шт.

118

D26872

O-RING

SEAL - "O" ring, outer

1шт.

119

D39188

PACKAGE

KIT - seat and poppet, Includes: Ref. 120 - 122

1шт.

120

NSS

NOT SOLD SEPARAT

SEAL - cartridge

1шт.

121

NSS

NOT SOLD SEPARAT

POPPET - cartridge

1шт.

122

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

123

D36823

SECTION - valve, bucket, Includes: Ref. 124 - 152

1шт.

124

O8416AB

X

SEAL - "O" ring, spool (For service of upper "O" ring, use D36830)

2шт.

D36830

RING

SEAL - quad ring

1шт.

125

D26829

RING

- backup

1шт.

126

D26830

PLATE

- retaining

1шт.

127

D26831

GUIDE

- spring

2шт.

128

D26832

SPRING

- centering

1шт.

129

D26833

BOLT

- stripper

1шт.

130

D26823

CAP

- valve

1шт.

131

171-412

SCREW - mach. sltd. fill. hd. (1/4" - 20 NC x 3/4")

2шт.

132

D26824

SPOOL

POPPET - check valve

1шт.

133

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

134

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap

1шт.

135

D30696

CYLINDER END CAP

CAP - check valve

1шт.

136

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

QUAD RING - section

3шт.

137

905952R1

COTTER PIN,M3.2 x 50

QUAD RING - section

1шт.

138

D31448

CARTRIDGE - relief, secondary (2-1/16" long) Color code - green (2750 P.S.I. present at factory) Used on some early production valves (Use D32557), Includes: Ref. 139 - 141

1шт.

D31449

CARTRIDGE - relief, secondary (2-3/4" long) Color code - green (2750 P.S.I. present at factory) When stock is exhausted, use D32557, Includes: Ref. 139 - 141

1шт.

139

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

140

D31450

WASHER

- gasket

1шт.

141

D26872

O-RING

SEAL - "O" ring, outer

1шт.

142

D32557

CARTRIDGE

- secondary relief, adjustable, Includes: Ref. 143 - 152

1шт.

143

129-526

CROWN NUT,Low, 3/8" - 24

- cap (3/8" - 24 NF)

1шт.

144

D32560

X

GASKET - copper-lead

2шт.

145

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam (3/8" - 24 NF)

1шт.

146

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set, 3/8" - 24 NF x 1"

1шт.

147

D31450

WASHER

- gasket

1шт.

148

D26872

O-RING

SEAL - "O" ring, outer

1шт.

149

D39188

PACKAGE

KIT - seat and poppet, Includes: Ref. 150 - 152

1шт.

150

NSS

NOT SOLD SEPARAT

SEAT - cartridge

1шт.

151

NSS

NOT SOLD SEPARAT

POPPET - cartridge

1шт.

152

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

153

D36595

X

SECTION - valve, inlet, Includes: Ref. 154 - 163

1шт.

154

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

QUAD RING - section

3шт.

155

L35522

O-RING

QUAD RING - section

1шт.

156

D31416

LOCK VALVE

VALVE - check, complete, Includes: Ref. 157 - 163

1шт.

157

D26858

RING, SNAP

RING - spirolox

1шт.

158

D31420

RING

RETAINER - spring

1шт.

159

D31419

SPRING

- check valve

1шт.

160

D31418

VALVE POPPET

POPPET - check valve

1шт.

161

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

162

D30681

GASKET

WASHER - gasket

1шт.

163

D31417

CARTRIDGE

- check valve

1шт.

164

D36598

SECTION - outlet, Includes: Ref. 165 - 173

1шт.

165

D36806

PLUG

ASSEMBLY - complete, Includes: Ref. 166 - 168

1шт.

166

NSS

NOT SOLD SEPARAT

PLUG - section

1шт.

167

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

168

D30681

GASKET

- copper-lead

1шт.

169

D36599

SPOOL

1шт.

170

D36807

SPACER

1шт.

171

D36600

VALVE SPRING

SPRING

1шт.

172

D36808

GASKET

- cap

1шт.

173

D36805

CAP - valve

1шт.

174

D26846

STUD

ASSEMBLY - valve

1шт.
