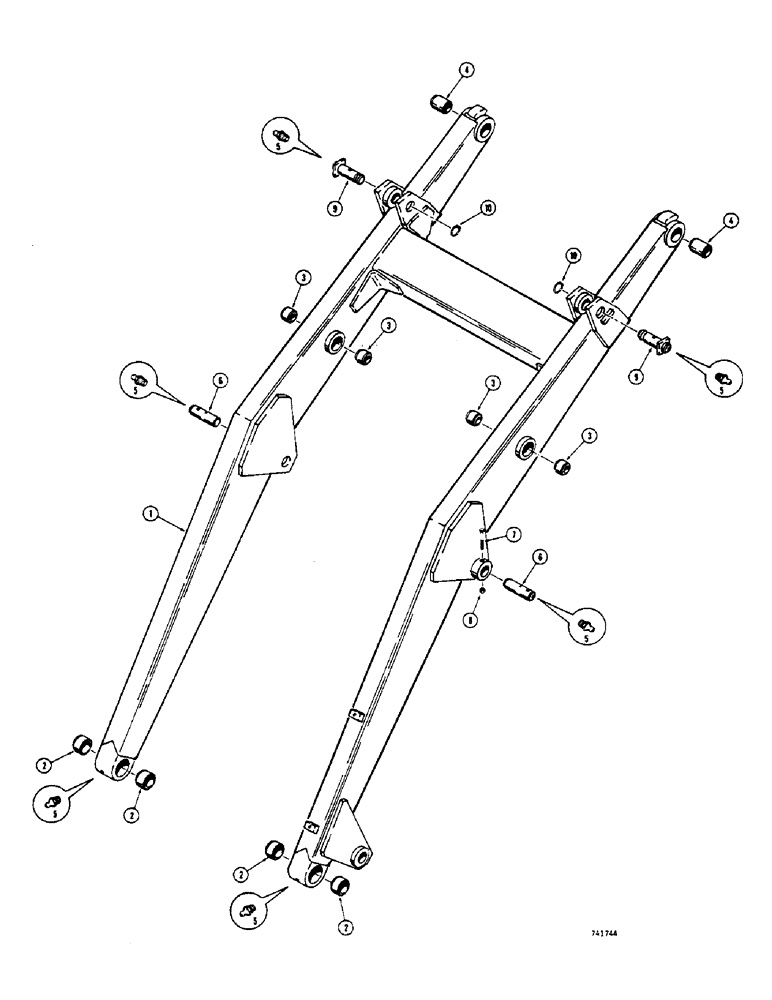

Запчасти Case 32 (009A) - LOADER LIFT FRAME AND PINS, SERVICE REPLACEMENT

1

D45005

ARM - loader lift, Includes: Ref. 2 - 4

1шт.

2

D30935

BUSHING,47.85mm ID x 57.15mm OD x 33.27mm L

- at frame

4шт.

3

D37763

BUSHING

- at dump linkage

4шт.

4

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

- at bucket

2шт.

5

219-9

FITTING - grease, straight (1/8" NPT)

6шт.

6

D44983

PIN

- cylinder mounting, lift

2шт.

7

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

2шт.

8

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

2шт.

9

D45001

PIN

- cylinder retaining, tilt

2шт.

10

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.
