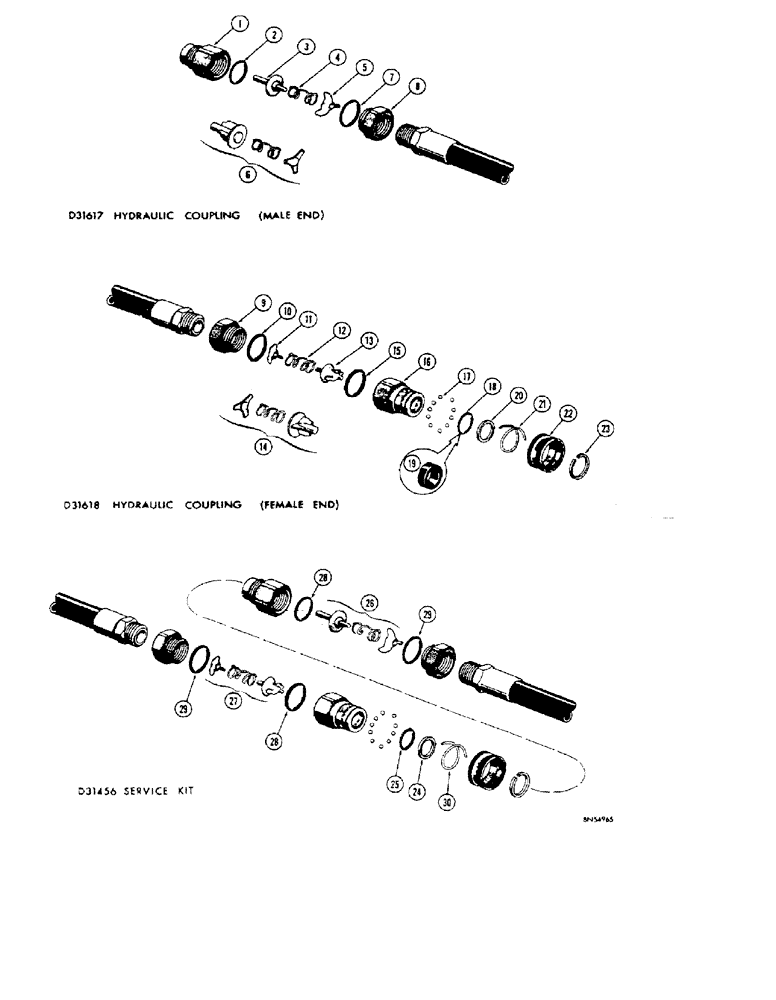

Запчасти Case 32 (108) - D31617 AND D31618 HYDRAULIC COUPLINGS, D31617 HYDRAULIC COUPLING

D31617

COUPLING, BREAK AWAY

male (Snap-Tite), Includes: Ref. 1 - 8

1шт.

1

D31971

BODY

male coupling

1шт.

2

D31984

SEAL

valve

1шт.

3

D31972

early production (When stock is exhausted, use D35658)

1шт.

4

D31973

HOSE

SPRING - early production (When stock is exhausted, use D35658)

1шт.

5

D31974

RETAINER - early production (When stock is exhausted, use D35658)

1шт.

6

D35658

VALVE

ASSEMBLY - male coupling (Late production)

1шт.

7

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

end fitting

1шт.

8

D31975

FITTING

end

1шт.

D31618

COUPLING, BREAK AWAY

female (Snap-Tite), Includes: Ref. 9 - 23

1шт.

9

D31975

FITTING

end

1шт.

10

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

end fitting

1шт.

11

D31974

RETAINER - early production (When stock is exhausted, use D35659)

1шт.

12

D31973

HOSE

SPRING - early production (When stock is exhausted, use D35659)

1шт.

13

D31972

early production (When stock is exhausted, use D35659)

1шт.

14

D35659

LOCK VALVE

ASSEMBLY - female (Late production)

1шт.

15

D31984

SEAL

valve

1шт.

16

D31976

BODY - female coupling

1шт.

17

D31982

KIT

BALL - includes 10 balls

1шт.

18

D31983

O-RING

SEAL - internal, type

1шт.

19

D31977

SEAL

internal, "U" packer type (Use D31983)

1шт.

20

D31978

RING

backup

1шт.

21

D31979

VALVE SPRING

sleeve

1шт.

22

D31980

SLEEVE CYLINDER

ball retaining

1шт.

23

D31981

RING

retaining

1шт.

D31456

KIT

- service, Includes: Ref. 24 - 30

1шт.

24

D31978

RING

backup

1шт.

25

D31983

O-RING

SEAL - internal, type

1шт.

26

D35658

VALVE

ASSEMBLY - male coupling

1шт.

27

D35659

LOCK VALVE

ASSEMBLY - female coupling

1шт.

28

D31984

SEAL

valve, service kit for hyd coupling

2шт.

29

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

end fitting, service kit for hyd coupling

2шт.

30

D31979

VALVE SPRING

sleeve, service kit for hyd coupling

1шт.
