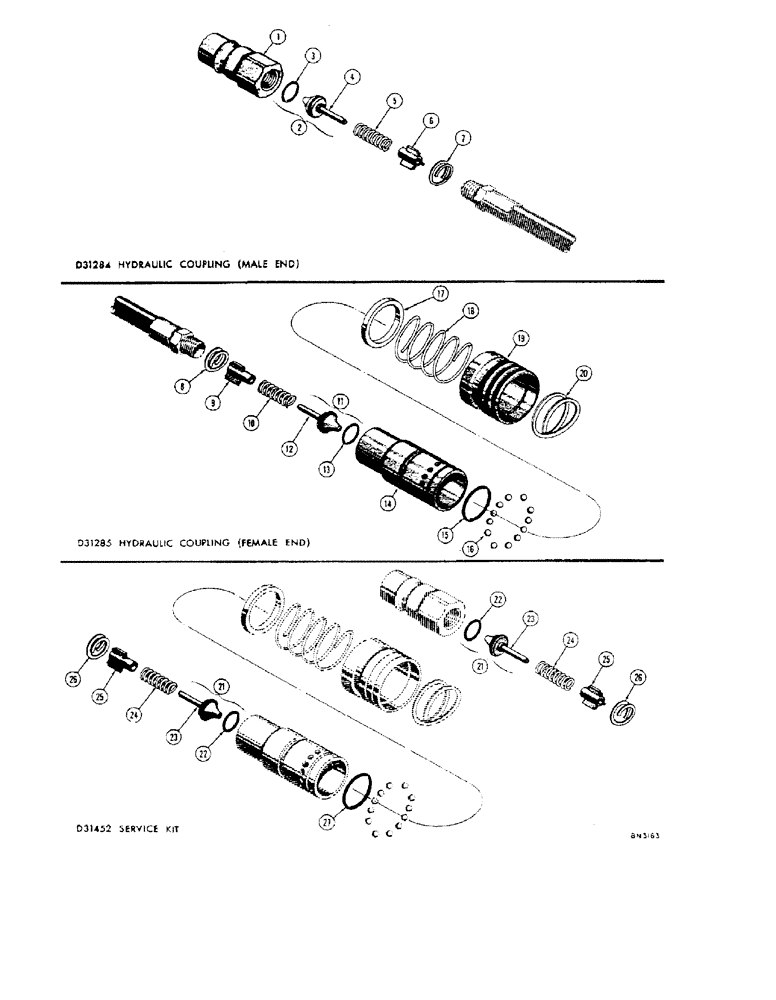

Запчасти Case 32 (106) - D31284 AND D31285 HYDRAULIC COUPLINGS, D31284 HYDRAULIC COUPLING

D31284

SPARE PART

COUPLING - male (Bruning), Includes: Ref. 1 - 7

1шт.

1

D31959

BODY - male coupling

1шт.

2

D32224

POPPET ASSEMBLY, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - poppet

1шт.

4

NSS

NOT SOLD SEPARAT

POPPET

1шт.

5

D31962

SPRING - poppet

1шт.

6

D31963

GUIDE - spring

1шт.

7

D31964

RING

1шт.

D31285

COUPLING

female (Bruning), Includes: Ref. 8 - 20

1шт.

8

D31964

1шт.

9

D31963

GUIDE - spring

1шт.

10

D31962

SPRING - poppet

1шт.

11

D32224

Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

POPPET

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - poppet

1шт.

14

D31969

BODY - female coupling

1шт.

15

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

SEAL - , inside body

1шт.

16

211-7

BALL,1/4" Dia

- steel 1/4" Dia

12шт.

17

D31970

RETAINER - spring

1шт.

18

D31967

SPRING - collar

1шт.

19

D31966

COLLAR - ball retaining

1шт.

20

D31965

RING

lock

1шт.

D31452

COUPLING

Includes: Ref. 21 - 27

1шт.

21

D32224

Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - poppet

2шт.

23

NSS

NOT SOLD SEPARAT

POPPET - male and female couplings

2шт.

24

D31962

SPRING - poppet

2шт.

25

D31963

GUIDE - spring

2шт.

26

D31964

2шт.

27

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

SEAL - inside body

1шт.
