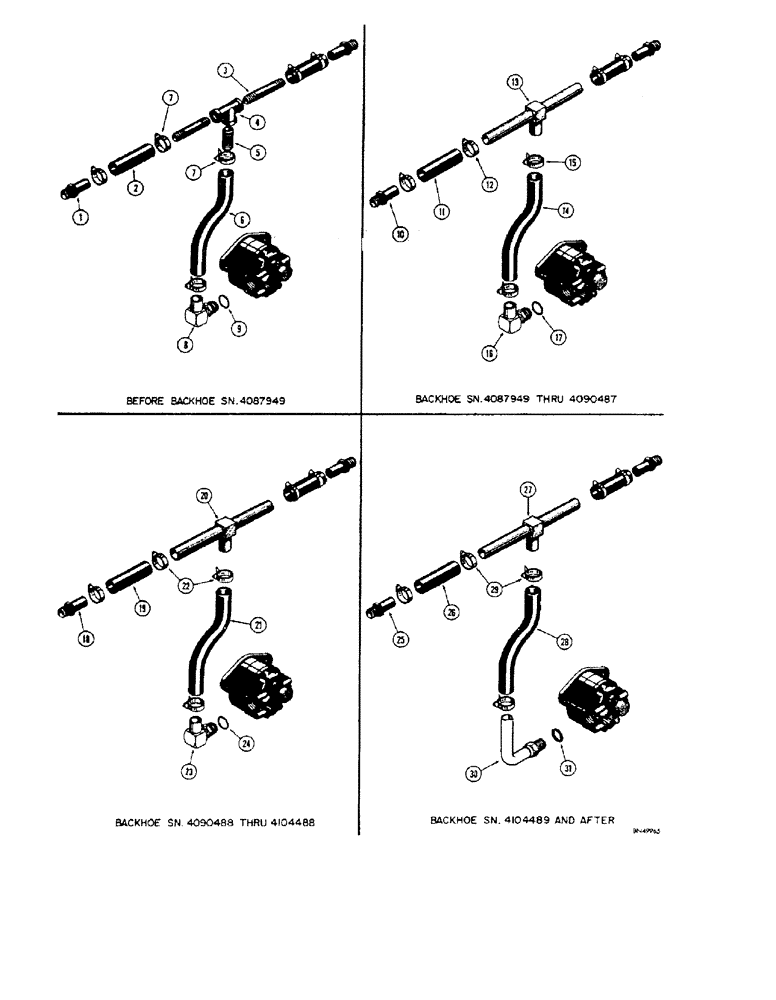

Запчасти Case 32 (102) - RESERVOIR TO PUMP HYDRAULICS, BEFORE BACKHOE SN. 4087949

1

R14353

CONNECTOR, ELEC

CONNECTOR - reservoir (3/4" NPT x 1" O.D. tube)

2шт.

2

R14171

HOSE

- suction (1" I.D. x 1-1/2" O.D. x 4" long)

2шт.

3

221-223

BALL

NIPPLE - 3/4" NPT x 6"

2шт.

4

221-425

FITTING,3/4" NPT

TEE - female, 3/4" NPT

1шт.

5

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - 3/4" NPT x 2"

1шт.

6

D31467

HOSE ASSY.

HOSE - suction (1" I.D. x 1-1/2" O.D. x 12-1/2" long)

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - suction hoses

6шт.

8

D31349

ELBOW

- 90 degree adj. (1-5/8" thread x 1" O.D. tube), Includes: Ref. 9

1шт.

9

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, D30511 elbow

1шт.

10

R14353

CONNECTOR, ELEC

CONNECTOR - reservoir (3/4" NPT x 1" O.D. tube)

2шт.

11

R14171

HOSE

- suction (1" I.D. x 1-1/2" O.D. x 4" long)

2шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - R14171 hose

4шт.

13

D32773

TEE - special (1" O.D. tube x 1-1/4" O.D. tube)

1шт.

14

D32772

X

HOSE - suction (1-1/4" I.D. x 1-3/4" O.D. x 14-1/4" long)

1шт.

15

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- D32772 hose #28, 1.31/2.25 Type F Worm

2шт.

16

D30511

FITTING

ELBOW - 90 degree adj. (1-5/8" thread x 1-1/4" O.D. tube), Includes: Ref. 17

1шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, D30511 elbow

1шт.

18

D33363

FITTING

CONNECTOR - reservoir (1" NPT x 1-1/4" O.D. tube)

2шт.

19

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

20

D33820

TEE

- special (1-1/4" O.D. tube)

1шт.

21

D32772

X

HOSE - suction (1-1/4" I.D. x 1-3/4" O.D. x 14-1/4" long)

1шт.

22

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- suction hoses #28, 1.31/2.25 Type F Worm

6шт.

23

D30511

FITTING

ELBOW - 90 degree adj. (1-5/8" - 12 x 1-1/4" O.D. tube), Includes: Ref. 24

1шт.

24

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, D30511 elbow

1шт.

25

D33363

FITTING

CONNECTOR - reservoir (1" NPT x 1-1/4" O.D. tube)

2шт.

26

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

27

D33820

TEE

- special (1-1/4" O.D. tube)

1шт.

28

D35463

HOSE

- suction (1-1/4" I.D. x 1-3/4" O.D. x 13-5/8" long)

1шт.

29

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- suction hoses #28, 1.31/2.25 Type F Worm

6шт.

30

D36747

STEM

CONNECTOR - hose (1-1/4" JIC x 1-1/4" O.D. tube), Includes: Ref. 31

1шт.

31

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - D36747 connector

1шт.
