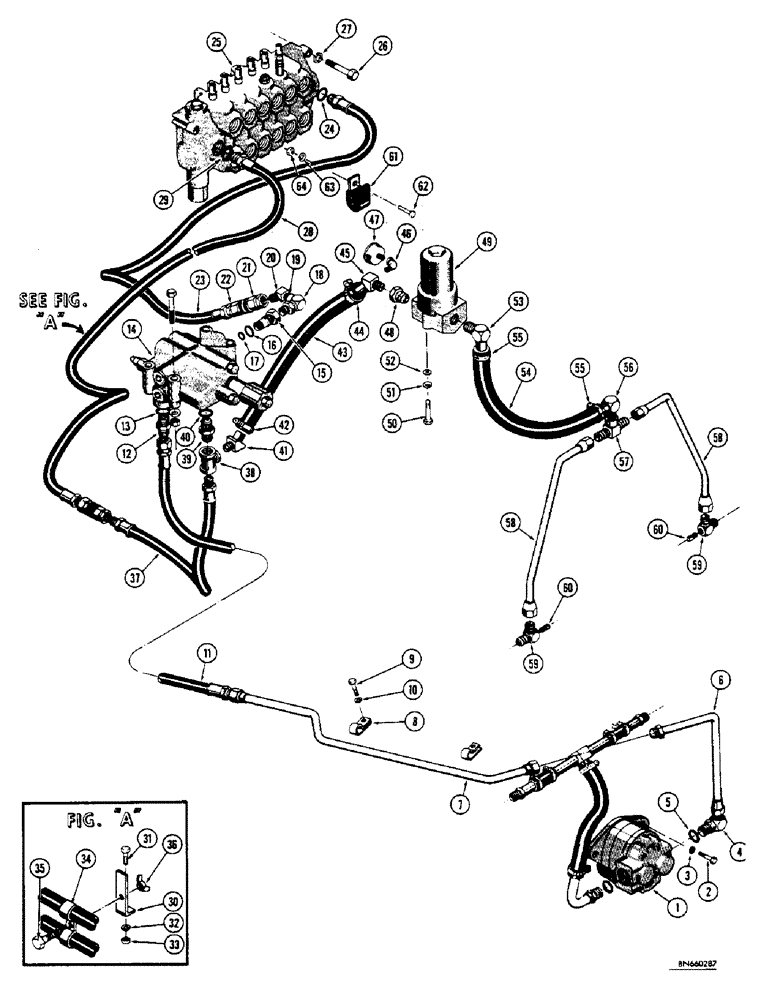

Запчасти Case 32 (101A) - BASIC BACKHOE HYDRAULICS (MODEL 32-S)

1

D31254

X

PUMP - hydraulic (Parts list Figure 34)

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

3

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

4

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, 1" JIC, Incl. Ref. 5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, 218-5110 elbow

1шт.

6

D30563

TUBE ASSY.

TUBE - from pump, short

1шт.

7

D33579

TUBE

- to loader valve, long

1шт.

8

R11405

CLAMP

- D33579 tube

2шт.

9

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

10

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

11

D24646

HOSE ASSY.

HOSE - to loader valve (3/4" I.D. x 1-5/32" O.D. x 25" long)

1шт.

12

D28890

CONNECTOR, ELEC

CONNECTOR - at valve (3/4" JIC x 1" JIC), Includes: Ref. 13

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D28890 connector

1шт.

14

D36725

CONTROL VALVE

VALVE - loader control (Parts list Figures 36-46)

1шт.

15

D35401

FITTING

- special, power beyone, Includes: Ref. 16 and 17

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, outer (Large)

1шт.

17

A25590

O-RING,15" ID x 1 1" OD x 3/32"

SEAL - "O" ring, inner (Small)

1шт.

18

D25354

ELBOW

- 90 degree adj. (3/4" JIC x 3/4" NPT), Includes: Ref. 19

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D25354 elbow

1шт.

20

D36909

ELBOW - 45 degree male (3/4" NPT)

1шт.

21

D31617

COUPLING, BREAK AWAY

COUPLING - male (Snap Tite) Parts list Figure 108

2шт.

22

D31618

COUPLING, BREAK AWAY

COUPLING - female (Snap Tite) Parts list Figure 108

2шт.

23

D36646

HOSE

- pressure, to backhoe valve (3/4" I.D. x 1-1/4" O.D. x 102" long), Includes: Ref. 24

1шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D36644 hose

1шт.

25

D36658

VALVE - backhoe control (Parts list Figure 125A)

1шт.

26

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

27

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

3шт.

28

D36647

HOSE ASSY.

HOSE - return, from backhoe valve (3/4" I.D. x 1-1/4" O.D. x 69-1/2" long), Includes: Ref. 29

1шт.

29

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D36647 hose

1шт.

30

D31392

CLAMP

BRACKET - hose

1шт.

31

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

32

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

33

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

34

R15257

CLAMP

- plate, rubberized

1шт.

35

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

- Clamp to bracket Hex, 5/16"-18 x 2", G5

1шт.

36

129-419

WING NUT,5/16"-18

NUT - wing (5/16" - 18 NC)

1шт.

37

D32178

HOSE

- return, to loader valve (3/4" I.D. x 1-1/4" O.D. x 24" long")

1шт.

38

221-425

FITTING,3/4" NPT

TEE - female () 3/4" NPT

1шт.

39

D31393

ROD, CONNECTING

CONNECTOR - 3/4" NPT x 3/4" JIC, Includes: Ref. 40

1шт.

40

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D31393 connector

1шт.

41

R11626

CONNECTOR, ELEC

ELBOW - 45 degree, 3/4" NPT x 1" O.D. tube

1шт.

42

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D36798 hose

1шт.

43

D36798

HOSE

- to filter (1" I.D. x 1-1/2" O.D. x 10-5/8" long)

1шт.

44

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D36798 hose

1шт.

45

D33588

ELBOW - to filter, 45 degrees (1" O.D. tube x 3/4" JIC)

1шт.

46

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

47

D29650

ELECTRICAL GAUGE

GAUGE - hyd. oil pressure

1шт.

48

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducing, 1" NPT to 3/4" NPT

1шт.

49

D32254

FILTER ASSY

- hyd. (Parts list Figure 70[1])

1шт.

50

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

51

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

52

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

53

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- 90 degrees (1" NPT x 1" O.D. tube)

1шт.

54

D31469

HOSE

- return (1" NPT x 1" O.D. tube)

1шт.

55

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D32678 hose

2шт.

56

D33589

X

ELBOW - 90 degrees (3/4" NPT x 1" O.D. tube)

1шт.

57

218-576

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- to equalizer tubes (3/4" NPT)

1шт.

58

D31354

TUBE - to reservoir (Std. models)

2шт.

D32656

TUBE - to reservoir (With Draft-O-Matic or remote hyd.)

2шт.

59

D28485

ELBOW UNION

ELBOW - 90 degrees (3/4" JIC x 3/4" NPT)

2шт.

60

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, sq. hd. (1/2" NPT)

2шт.

61

D31391

BRACKET - hose, mtg. frame

1шт.

62

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

63

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

64

131-4

LOCK NUT,5/16"-18, GB

NUT - hex. lock (5/16" - 18 NC)

1шт.
