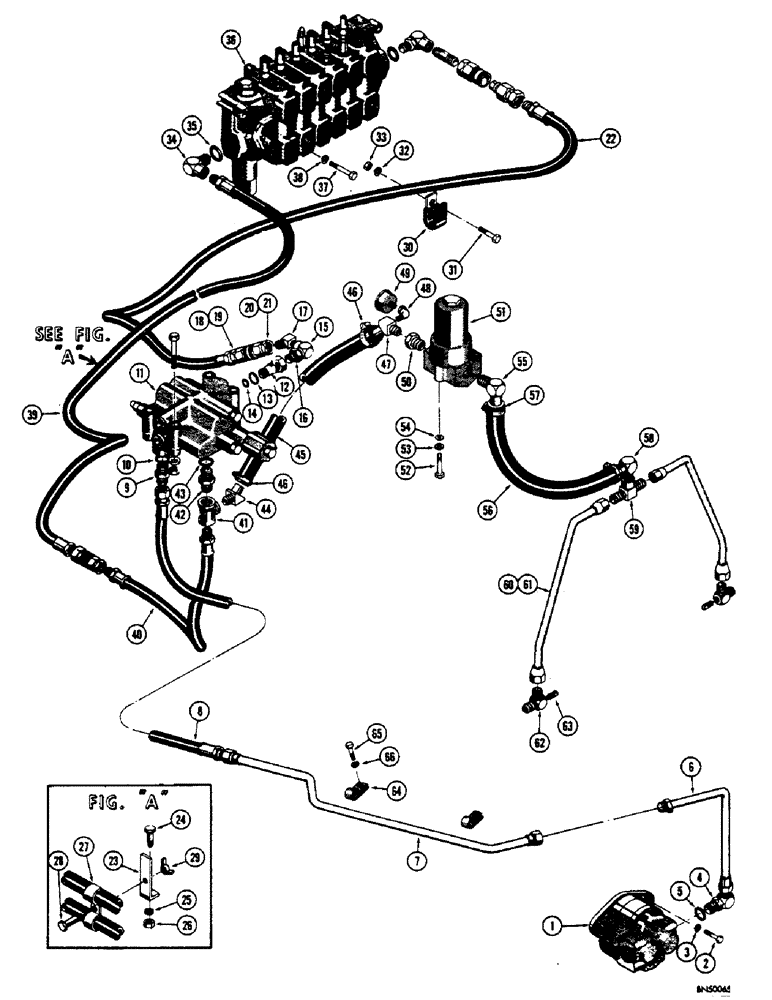

Запчасти Case 32 (098) - BASIC BACKHOE HYDRAULICS, (BACKHOE SN. 4103863 AND AFTER)

1

D31254

X

PUMP - hydraulic (Parts list. Figure 34)

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

3

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

4

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, 1" JIC, Incl. Ref. 5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, 218-5110 elbow

1шт.

6

D30563

TUBE ASSY.

TUBE - from pump, short

1шт.

7

D33579

TUBE

- to valve, long

1шт.

8

D24646

HOSE ASSY.

HOSE - to valve (3/4" I.D. x 1-1/4" O.D. x 25" long)

1шт.

9

D28890

CONNECTOR, ELEC

CONNECTOR - straight, Includes: Ref. 10

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D28890 connector

1шт.

11

REF

INSTRUCTION

VALVE - loader control (See page 38)

1шт.

12

D35401

FITTING

- power beyond type, Includes: Ref. 13 and 14

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, large

1шт.

14

A25590

O-RING,15" ID x 1 1" OD x 3/32"

SEAL - "O" ring, small

1шт.

15

D25354

ELBOW

- 90 degree, 3/4" JIC x 3/4" NPT, Includes: Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D25354 elbow

1шт.

17

D36909

ELBOW - 3/4" NPT

1шт.

18

D36935

COUPLING - male, Lear Siefler (Use 1-D31617 and 1-D31618)

2шт.

19

D31617

COUPLING, BREAK AWAY

COUPLING - male, Snap-Tite (parts list Figure 108)

2шт.

20

D36936

COUPLING - female, Lear Siegler (Use 1-D31617 and 1-D31618)

2шт.

21

D31618

COUPLING, BREAK AWAY

COUPLING - female, Snap Tite (Parts list Figure 108)

2шт.

22

D31472

HOSE

- backhoe pressure (3/4" I.D. x 1-1/4" O.D. x 83" long)

1шт.

23

D31392

CLAMP

BRACKET - hose

1шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

25

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

26

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

27

R15257

CLAMP

- plate, rubberized

1шт.

28

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

- Clamp to bracket Hex, 5/16"-18 x 2", G5

1шт.

29

129-419

WING NUT,5/16"-18

NUT - wing (5/16" - 18 NC)

1шт.

30

D31391

BRACKET - hose, mtg. frame

1шт.

31

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(If used) Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

32

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16") If used

1шт.

33

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC) If used

1шт.

34

D26463

FITTING

ELBOW - 90 degree adj. (3/4" NPT x 1" JIC), Includes: Ref. 35

2шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D26463 elbow

1шт.

36

D36122

VALVE - backhoe control (Parts list Figure 118)

1шт.

37

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

38

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

3шт.

39

D31476

HOSE ASSY.

HOSE - from valve (3/4" I.D. x 1-1/4" O.D. x 41" long)

1шт.

40

D32178

HOSE

- to ldr. valve (3/4" I.D. x 1-1/4" O.D. x 24" long)

1шт.

41

221-425

FITTING,3/4" NPT

TEE - female, 3/4" NPT

1шт.

42

D31393

ROD, CONNECTING

CONNECTOR - 3/4" JIC x 3/4" NPT, Includes: Ref. 43

1шт.

43

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D313936 connector

1шт.

44

R11626

CONNECTOR, ELEC

ELBOW - 45 degree, 3/4" NPT x 1" O.D. tube

1шт.

45

D36798

HOSE

- to filter (1" I.D. x 1-1/2" O.D. x 10-5/8")

1шт.

46

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D36798 hose

2шт.

47

D33588

ELBOW - 45 degrees (1" O.D. tube x 3/4" NPT)

1шт.

48

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

49

D29650

ELECTRICAL GAUGE

GAUGE - hyd. oil pressure

1шт.

50

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducing, 1" NPT to 3/4" NPT

1шт.

51

D32254

FILTER ASSY

- hyd. oil, parts list p. 71

1шт.

52

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

53

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

54

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

55

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- 90 degree, 1" NPT x 1" O.D. tube

1шт.

56

D31469

HOSE

- 1" I.D. x 1-1/2" O.D. x 19" long

1шт.

57

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D31469 hose

2шт.

58

D33589

X

ELBOW - special, 90 degrees (3/4" JIC x 3/4" JIC x 3/4" NPT)

1шт.

59

218-576

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- special (3/4" JIC x 3/4" JIC x 3/4" NPT)

1шт.

60

D31354

TUBE - to reservoir (Standard models)

2шт.

61

D32656

TUBE - to reservoir (Used with Draft-O-Matic or remote hyd.)

2шт.

62

D28485

ELBOW UNION

ELBOW - 90 degree male (3/4" JIC x 3/4" NPT)

2шт.

63

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" NPT

2шт.

64

R11405

CLAMP

- tube

2шт.

65

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

66

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.
