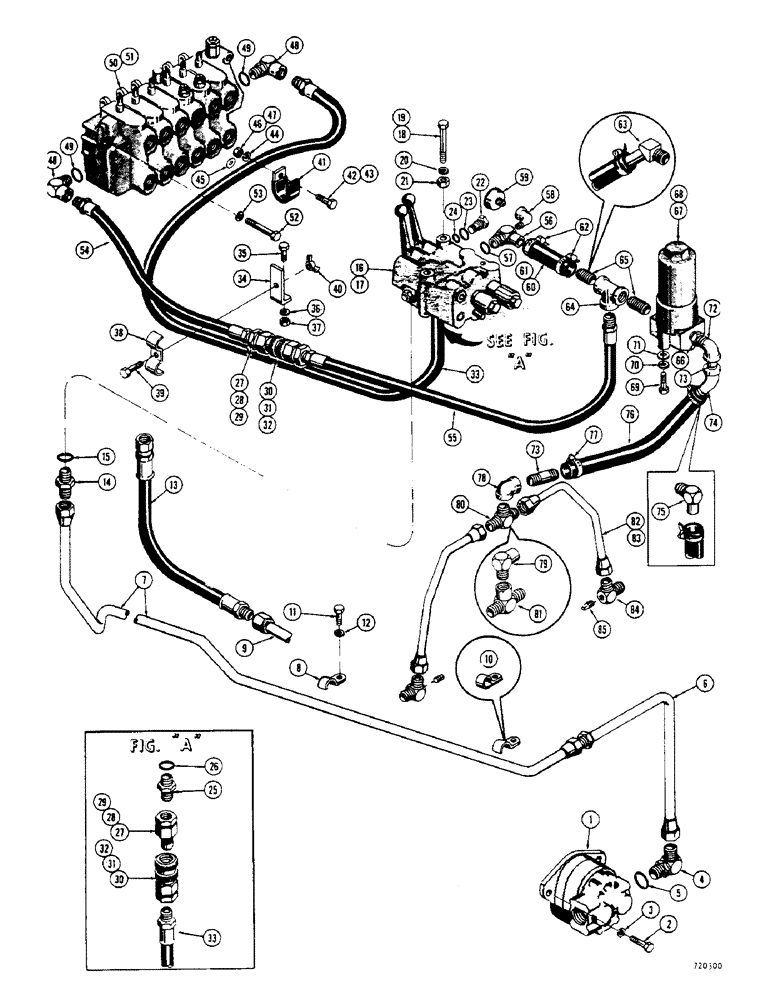

Запчасти Case 32 (094) - BASIC BACKHOE HYDRAULICS, (BEFORE BACKHOE SERIAL NUMBER 4103863)

1

D31254

X

PUMP - hydraulic (Parts list Figure 34)

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

3

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

4

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, 1" JIC, Incl. Ref. 5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, 218-5110 elbow

1шт.

6

D30563

TUBE ASSY.

TUBE - from pump

1шт.

7

D30513

TUBE ASSY.

TUBE - to valve long (Early production) When stock is exhausted, use D33579 tube and D24646 hose

1шт.

8

D31513

CLAMP - D30513 tube (Use R11405)

2шт.

9

D33579

TUBE

- to valve, long (Late production) Used with D24646 hose

1шт.

10

R11405

CLAMP

- D30513 or D33579 tubes

2шт.

11

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

12

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

13

D24646

HOSE ASSY.

HOSE - D33579 tube to valve (3/4" I.D. x 1-1/4" O.D. x 25" long)

1шт.

14

D28890

CONNECTOR, ELEC

CONNECTOR - male (3/4" JIC x 1" JIC), Includes: Ref. 15

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D28890 connector

1шт.

16

D31264

VALVE - loader control, early production (Parts list Figure 39) When stock is exhausted, use D32769

1шт.

17

D32769

CONTROL VALVE

VALVE - loader control (Parts list Figure 41)

1шт.

18

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(Inside) Hex, 3/8"-16 x 4", G5

2шт.

19

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC - 3-3/4" (Outside)

1шт.

20

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

3шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

22

D25783

PLUG - special, power beyond type

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, large

1шт.

24

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL - "O" ring, small

1шт.

25

D31393

ROD, CONNECTING

CONNECTOR - 3/4" JIC x 3/4" NPT, Includes: Ref. 26

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D31393 connector

1шт.

27

D31284

SPARE PART

COUPLING - male, Bruning (Parts list Figure 106)

2шт.

28

D31617

COUPLING, BREAK AWAY

COUPLING - male, Snap-Tite (Parts list Figure 108)

2шт.

29

D36935

COUPLING - male, Lear Siegler (Use 1-D31617 and 1-D31618)

2шт.

30

D31285

COUPLING

- female, Bruning (Parts list Figure 106)

2шт.

31

D31618

COUPLING, BREAK AWAY

COUPLING - female, Snap-Tite (Parts list Figure 108)

2шт.

32

D36936

COUPLING - female, Lear Siegler (Use 1-D31617 and 1-D31618)

2шт.

33

D31472

HOSE

- backhoe pressure (3/4" I.D. x 1-1/4" O.D. x 83" long)

1шт.

34

D31392

CLAMP

BRACKET - hose

1шт.

35

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

36

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

37

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

38

R15257

CLAMP

- plate, rubberized

1шт.

39

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

- Clamp to bracket Hex, 5/16"-18 x 2", G5

1шт.

40

129-419

WING NUT,5/16"-18

NUT - wing (5/16" - 18 NC)

1шт.

41

D31391

BRACKET - hose, mtg. frame

1шт.

42

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2" (If used)

1шт.

43

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(If used) Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

44

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, , if used 5/16"

1шт.

45

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16") If used

1шт.

46

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC) If used

1шт.

47

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC) If used

1шт.

48

D26463

FITTING

ELBOW - 90 degree adj., 3/4" NPT x 1" tube (15/16" - 12 "O" ring), Includes: Ref. 49

2шт.

49

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D26463 elbow

1шт.

50

D30776

VALVE - backhoe control, used before backhoe sn. 4102456 (When stock is exhausted use D36122)

1шт.

51

D36122

VALVE - backhoe control, used on backhoe sn. 4102456 and after

1шт.

52

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

53

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

3шт.

54

D31476

HOSE ASSY.

HOSE - from valve (3/4" I.D. x 1-1/4" O.D. x 41" long)

1шт.

55

D33709

FLEXIBLE HOSE

HOSE - to filter (3/4" I.D. x 1-1/4" O.D. x 38" long)

1шт.

56

D31363

ELBOW - 90 degree adj. (3/4" JIC x 1" O.D. tube), Includes: Ref. 57

1шт.

57

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D31363 elbow

1шт.

58

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

59

D29650

ELECTRICAL GAUGE

GAUGE - hyd. oil pressure

1шт.

60

D25759

HOSE

- ldr. valve to nipple (1" I.D. x 1-1/2" O.D. x 7" long) If used

1шт.

61

D36798

HOSE

- ldr. valve to R11626 elbow (1" I.D. x 1-1/2" O.D. x 6" long") If used

1шт.

62

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

63

R11626

CONNECTOR, ELEC

ELBOW - special, 45 degree (1" O.D. tube x 3/4" NPT) If used

1шт.

64

221-425

FITTING,3/4" NPT

TEE - female, 3/4" NPT

1шт.

65

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - 3/4" NPT x 1-3/8"

2шт.

66

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducing (1" NPT x 3/4" NPT) If used

2шт.

67

D31338

X

FILTER - hyd. oil, early production (Parts list Figure 70[1]) Use D32254 and 2-221-65

1шт.

68

D32254

FILTER ASSY

- hyd. oil, late production (Parts list Figure 70[1])

1шт.

69

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

70

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

71

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

72

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, If used 90º, 3/4"-14, NPT

1шт.

73

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - 3/4" NPT x 2" (If used)

2шт.

74

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- 45 degree street (3/4" NPT) If used

1шт.

75

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- special, 90 degree (1" NPT x 1" O.D. tube) If used

1шт.

76

D31469

HOSE

- to reservoirs (1" I.D. x 1-1/2" O.D. x 17" long)

1шт.

77

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D31469 hose

2шт.

78

221-378

ELBOW,90 Degree, 3/4" NPT

- 90 degree (3/4" NPT) If used

1шт.

79

D33589

X

ELBOW - special, 90 degrees (3/4" NPT x 1" O.D. tube) If used

1шт.

80

218-556

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

- special male (3/4" JIC x 3/4" JIC x 3/4" NPT) If used

1шт.

81

218-576

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- 3/4" NPT x 3/4" JIC (If used)

1шт.

82

D31354

TUBE - to reservoir (Standard models)

2шт.

83

D32656

TUBE - to reservoir (Used with Draft-O-Matic or remote hyd.)

2шт.

84

D28485

ELBOW UNION

ELBOW - 90 degree male (3/4" JIC x 3/4" NPT)

2шт.

85

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" NPT

2шт.
