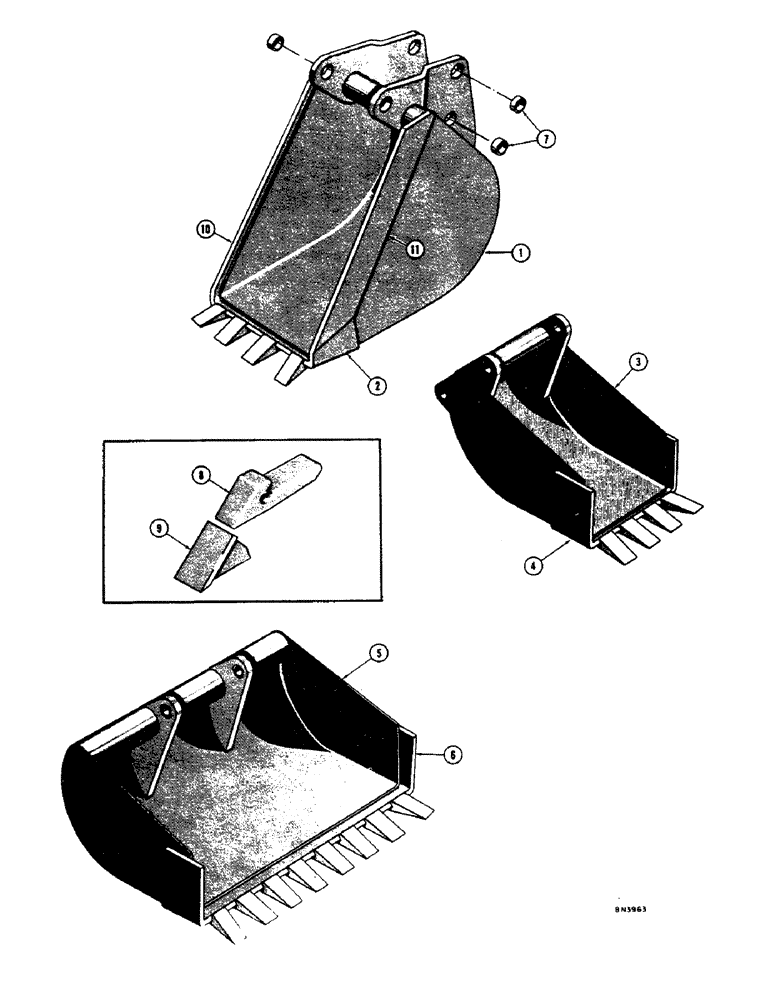

Запчасти Case 32 (092) - BACKHOE BUCKETS, TRENCHING BUCKETS

1

D30907

BUCKET - tenching, 12" (Mach. item), Includes: Ref. 2

1шт.

2

D23227

EDGE

BLADE - cutting, center

1шт.

1

D30909

BUCKET - trenching, 18" (Mach. item), Includes: Ref. 2

1шт.

2

D23226

BLADE - cutting, center

1шт.

1

D30910

BUCKET - tenching, 24" (Mach. item), Includes: Ref. 2

1шт.

2

35277

KNIFE

BLADE - cutting, center

1шт.

1

D30912

BUCKET - trenching, 30" (Mach. item), Includes: Ref. 2

1шт.

2

35294

BLADE - cutting, center

1шт.

1

D30914

BUCKET - tenching, 36" (Mach. item), Includes: Ref. 2

1шт.

2

D29121

PLUG

BLADE - cutting, center

1шт.

3

D30906

BUCKET - bellhole, 12" (Mach. item), Includes: Ref. 4

1шт.

4

D23107

cutting, bellhole bucket

1шт.

3

D30908

BUCKET - bellhole, 16" (Mach. item), Includes: Ref. 4

1шт.

4

37696

BLADE - cutting, bellhole bucket

1шт.

3

D30911

BUCKET - bellhole, 30" (Mach. item), Includes: Ref. 4

1шт.

4

37448

BLADE - cutting, bellhole bucket

1шт.

5

D30913

BUCKET - combination bellhole and graveyard, 36" (Mach. item), Includes: Ref. 6

1шт.

6

D20453

BLADE - cutting, combination bellhole and graveyard bucket

1шт.

7

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

bucket, parts for

6шт.

8

D26368

SUPPORT

SHANK - tooth, parts for buckets

8шт.

9

D27748

TOOTH

POINT , parts for buckets

8шт.

D36720

TOOTH

POINT - heavy duty (Optional), parts for buckets

8шт.

10

D21605

EDGE, CUTTING

BLADE - side (L.H.) All trenching buckets except 12" (See D29423), parts for buckets

1шт.

D29423

EDGE, CUTTING

BLADE - side (L.H.) D30907 bucket only, parts for buckets

1шт.

11

D21606

EDGE, CUTTING

BLADE - side (R.H.) All trenching except 12" (See D29424), parts for buckets

1шт.

D29424

EDGE, CUTTING

BLADE - side (R.H.) D30907 only, parts for buckets

1шт.
