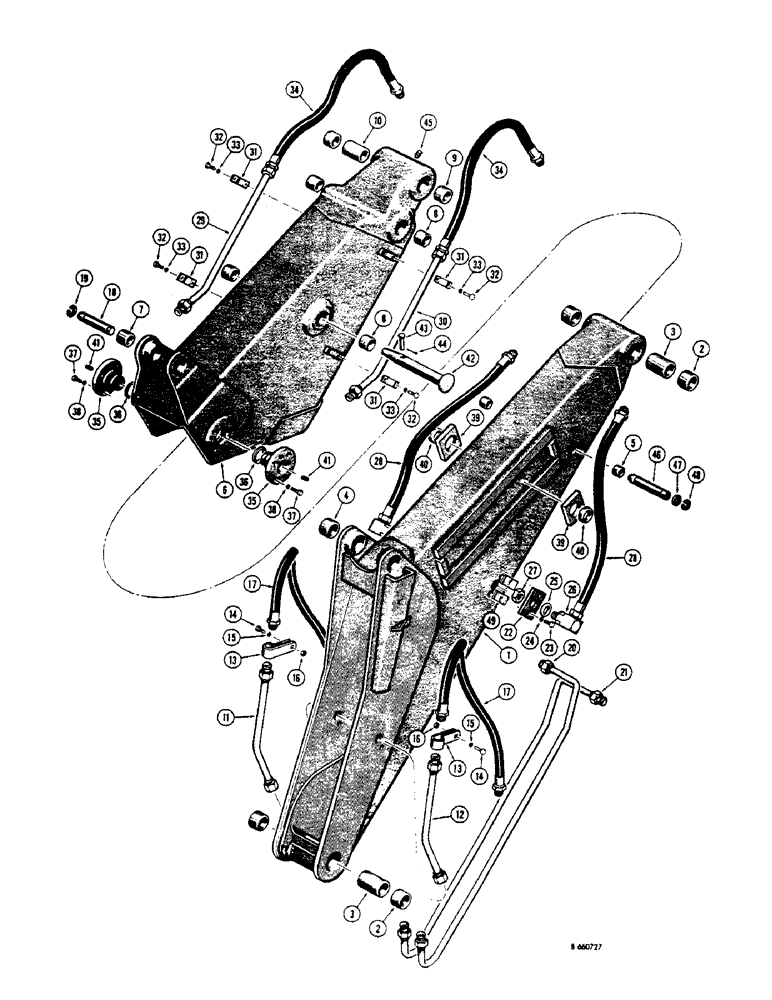

Запчасти Case 32 (090) - EXTENDABLE BOOM

1

D34130

BOOM - lower, Includes: Ref. 2 - 5

1шт.

2

36121

BUSHING

- boom at swing tower and boom at extension lock

4шт.

3

D33184

SPACER

- bushing

2шт.

4

D25029

BUSHING

- lower boom at crowd cylinder (When stock is exhausted, use D34109 bushing for service)

2шт.

D34109

BUSHING

- lower boom at crowd cylinder

2шт.

5

D25258

BUSHING

- boom at boom cylinder (When stock is exhausted, use D35071 bushing for service)

2шт.

D35071

BUSHING

- boom at boom cylinder

2шт.

6

D34100

BOOM - upper extension, Includes: Ref. 7 - 10

1шт.

7

D34109

BUSHING

- upper boom at crowd cylinder

2шт.

8

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- boom extenshion, upper and lower locking pin hole

2шт.

9

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- boom at dipper arm

2шт.

10

D33184

SPACER

- bushing

1шт.

11

D36617

TUBE - elbow at boom to crowd cylinder, L.H.

1шт.

12

D36618

TUBE - elbow at boom to crowd cylinder, R.H.

1шт.

13

D30488

CLAMP - hose

2шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(D30488 mounting) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

17

D36622

HOSE ASSY.

HOSE - crowd cylinder (3/4" I.D. x 40-1/2" long)

2шт.

18

D34132

PIN - crowd, Serial Range: cylinder-boom

1шт.

19

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

20

D34153

TUBE - to bucket cylinder, lower R.H.

1шт.

21

D34151

TUBE - to bucket cylinder, lower L.H.

1шт.

22

D25585

PLATE - spacer

2шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(D25585 mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

4шт.

25

VB1652

SPACER - fitting

2шт.

26

D25568

ELBOW UNION

ELBOW - 90 degrees special, on boom

2шт.

27

D26231

NUT

- jam, elbow (1-1/16" - 12 NF)

2шт.

28

D28705

HOSE

- to bucket cylinder, lower (3/4" I.D. x 40" long)

2шт.

29

D36620

TUBE - to bucket cylinder, upper L.H.

1шт.

30

D36621

TUBE - to bucket cylinder, upper R.H.

1шт.

31

D36624

CLAMP - tube

4шт.

32

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

(Clamp mounting) Hex, 5/16"-18 x 5/8", G5, Full Thd

8шт.

33

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

8шт.

34

D36622

HOSE ASSY.

HOSE - to bucket cylinder, upper (3/4" I.D. x 40-1/2" long)

2шт.

35

D30724

PIN

- slide plate mounting

2шт.

36

D39137

BUSHING

SPACER

2шт.

37

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(D30724 mounting) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

38

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

8шт.

39

D34118

SLIDE PLATE - boom extension, Includes: Ref. 40

2шт.

40

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- slide plate

1шт.

41

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, sq. hd. (1/8" NPT)

2шт.

42

D34097

PIN - boom extension locking

1шт.

43

A10123

PIN - clevis

1шт.

44

136-109

SPLIT PIN

PIN - cotter

1шт.

45

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

46

D23522

AXLE PIN

PIN - boom, Serial Range: cylinder-boom

1шт.

47

195-2165

WASHER,1 13/16" x 2 3/4" x .134"

- flat steel

2шт.

48

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

49

D39367

SHIM - spacer plate

4шт.
