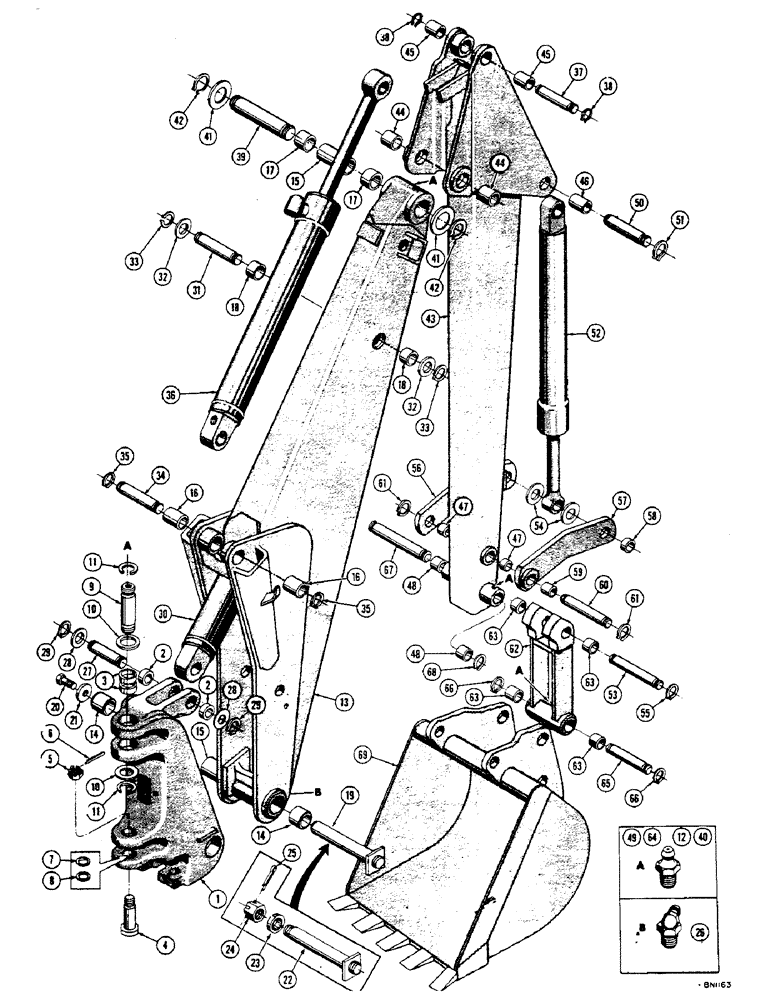

Запчасти Case 32 (086) - BACKHOE MECHANICAL PARTS

1

D30748

LATHE

TOWER - swing, Includes: Ref. 2 and 3

1шт.

2

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- at boom cyl.

2шт.

3

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at mtg. frame

2шт.

4

D30760

STEP BOLT

BOLT - mounting (Special)

1шт.

5

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - slotted shear hex. (1-1/2" - 12 NF)

1шт.

6

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

7

D23907

SPACER

- brg., 5/16" thick

1шт.

8

D26991

BEARING

SPACER - brg., 1/4" thick

1шт.

9

D30763

PIN

- at mtg. frame, upper

1шт.

10

D25509

WASHER

- D30763 pin (2-1/64" I.D. x 3" O.D. x 7/64" thick)

2шт.

11

D26919

SNAP RING,#200, Ext

Ring, Snap, , D30763 pin #200, Ext

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT)

1шт.

13

D30840

BOOM - backhoe, Includes: Ref. 14 - 18

1шт.

14

36121

BUSHING

- at swing tower

2шт.

15

D33184

SPACER

- 36121 bushings (If used)

1шт.

16

D25029

BUSHING

- at crowd cyl. (When stock is exhausted, use D34109)

2шт.

D34109

BUSHING

- at crowd cyl.

2шт.

17

36121

BUSHING

- at dipper arm

2шт.

18

D25258

BUSHING

- at boom cyl. (When stock is exhausted, use D35071)

2шт.

D35071

BUSHING

- at boom cyl.

2шт.

19

D30758

PIN

- pivot, tower to boom (Used before backhoe serial no. 4082790) See D32337

1шт.

20

113-900

BOLT,Locking, 1" - 8 x 2", Gr 5

- nylock, self-locking (1" - 8 NC x 2") Used with D30758 pin

1шт.

21

D25991

WASHER - 113-900 bolt (1-1/32" I.D. x 2-1/2" O.D. x 1/2" thick)

1шт.

22

D32337

PIN

- pivot, tower to boom (Used on backhoe serial no. 4082790 and after)

1шт.

23

D32338

WASHER

- D32337 pin

1шт.

24

25-2420

X

NUT - castle (1-1/4" - 7 NC)

1шт.

25

132-80

HARDWARE

PIN - cotter (5/32" x 2-1/2")

1шт.

26

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

1шт.

27

D23523

PIN

- boom, Serial Range: cyl.-tower

1шт.

28

195-2165

WASHER,1 13/16" x 2 3/4" x .134"

- D23523 pin (1-13/16" I.D. x 2-3/4" O.D. x 9/64" thick)

2шт.

29

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23523 pin #175, Ext

2шт.

30

D27751

CYLINDER ASSY.

CYLINDER - boom (Parts list Figure 138) Used before backhoe sn. 4101401

1шт.

D35435

CYLINDER

- boom (Parts list Figure 138) Used on backhoe sn. 4101401 and after

1шт.

31

D23522

AXLE PIN

PIN - boom cyl. at boom

1шт.

32

195-2165

WASHER,1 13/16" x 2 3/4" x .134"

- D23522 pin (1-13/16" I.D. x 2-3/4" O.D. x 9/64" thick)

2шт.

33

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23522 pin #175, Ext

2шт.

34

D23521

AXLE PIN

PIN - crowd cyl. at boom

1шт.

35

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23521 pin #175, Ext

2шт.

36

D27752

CYLINDER ASSY.

CYLINDER - crowd (Parts list Figure 139A)

1шт.

37

D23441

AXLE PIN

PIN - crowd cyl. at dipper arm

1шт.

38

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23441 pin #175, Ext

2шт.

39

D23517

PIN

- boom to dipper arm

1шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT)

1шт.

41

D25509

WASHER

- D23517 pin (2-1/64" I.D. x 3" O.D. x 7/64" thick)

2шт.

42

D26919

SNAP RING,#200, Ext

Ring, Snap, , D23517 pin, Includes: Ref. 44 - 48 #200, Ext

2шт.

43

D30632

ARM - dipper

1шт.

44

D23203

BUSHING

- at boom

2шт.

45

D25029

BUSHING

- at crowd cyl. (When stock is exhausted use D34109)

2шт.

D34109

BUSHING

- at crowd cyl.

2шт.

46

D25029

BUSHING

- at bucket cyl. (When stock is exhausted use D34109)

2шт.

D34109

BUSHING

- at bucket cyl.

2шт.

47

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- at bucket linkage

2шт.

48

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- at bucket

2шт.

49

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT)

2шт.

50

D23441

AXLE PIN

PIN - bucket cyl. at dipper arm

1шт.

51

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23441 pin #175, Ext

2шт.

52

D30769

HYDRAULIC CYLINDER

CYLINDER - bucket (Parts list Figure 139C)

1шт.

53

D30759

PIN

- bucket cyl. at link

1шт.

54

D30042

WASHER

- D30759 pin (1-9/16" I.D. x 3" O.D. x 3/16" thick)

2шт.

55

D25279

SNAP RING,M35, Int

- D30759 pin

2шт.

56

NLS

NO LONGER SERVICED

LINK - bucket, L.H., Includes: Ref. 58 and 59

1шт.

57

D30755

DRAG LINK

LINK - bucket, R.H., Includes: Ref. 58 and 59

1шт.

58

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- at cyl.

2шт.

59

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- at dipper

2шт.

60

D30759

PIN

- bucket link at dipper arm

1шт.

61

D25279

SNAP RING,M35, Int

- D30759 pin

2шт.

62

D29991

X

LINK - dump, bucket, Includes: Ref. 63

1шт.

63

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- dump link

4шт.

64

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT), Includes: Ref. 65

1шт.

65

D30898

PIN

- dump link at bucket

1шт.

66

D25279

SNAP RING,M35, Int

- D30898 pin

2шт.

67

D30899

PIVOT PIN,38.1mm OD x 338.14mm L

PIN - bucket at dipper arm

1шт.

68

D25279

SNAP RING,M35, Int

- 30899 pin

2шт.

69

REF

INSTRUCTION

BUCKET - backhoe (See figure 92) Machinery item

1шт.
