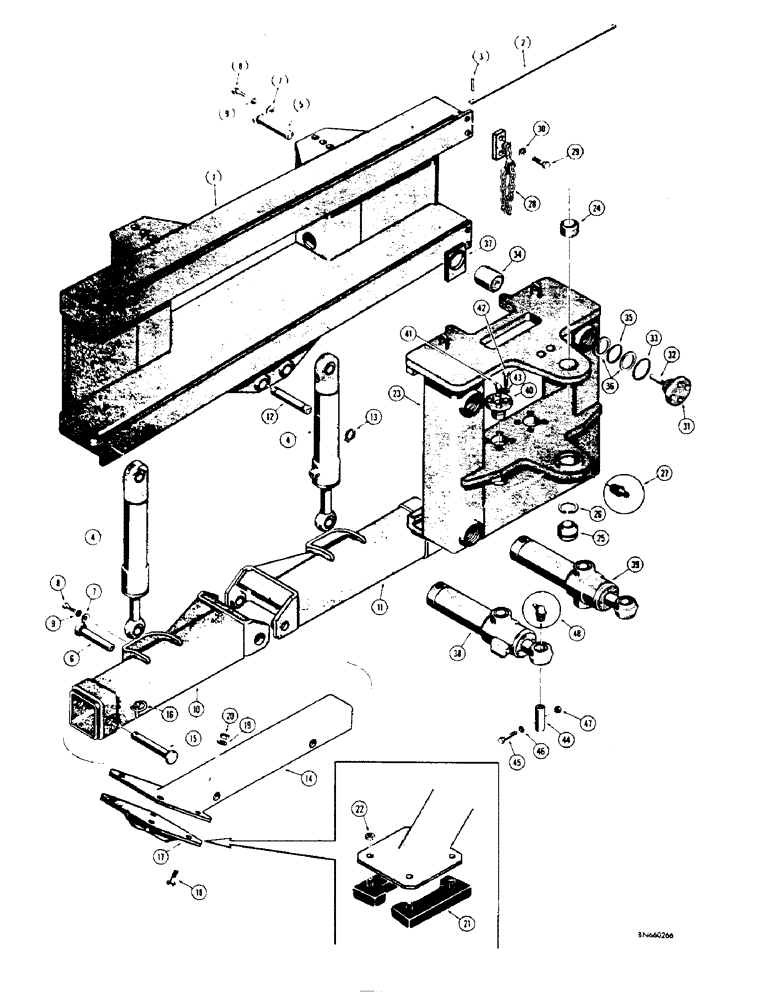

Запчасти Case 32 (081A) - MOUNTING FRAME AND STABILIZERS, FOR MODEL 32-S BACKHOE

1

D35604

FRAME - main

1шт.

2

D36801

ROD

- support

1шт.

3

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

4

D35683

CYLINDER ASSY.

CYLINDER - stabilizer (Parts list Figure 137A)

2шт.

5

D35675

AXLE PIN

PIN - cylinder at frame

2шт.

6

D36710

PIN

- cylinder at stabilizer leg

2шт.

7

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- retaining

4шт.

8

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

D35582

LEG - stabilizer, R.H.

1шт.

11

D35583

LEG - stabilizer, L.H.

1шт.

12

D35680

AXLE PIN

PIN - stabilizer leg

2шт.

13

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

14

D35572

EXTENSION - stabilizer leg

2шт.

15

D35569

AXLE PIN

PIN - stabilizer leg extension

2шт.

16

D33805

PIN

- special locking

2шт.

17

D35563

PAD

FOOT - stabilizer

2шт.

18

14-724

SCREW,Hex, 7/16" - 20 x 1 1/2", Gr 5

HHCS - 7/16" - 20 NF x 1-1/2"

8шт.

19

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

8шт.

20

25-117

NUT,7/16"-20, G5

- hex, (7/16" - 20 NF)

8шт.

21

32838

SHOE (ASSY)

PAD - rubber, optional

4шт.

22

D29712

SPECIAL NUT

- hex., special (7/16" - 20 NF)

8шт.

23

D35601

FRAME - sliding, Includes: Ref. 24 - 26

1шт.

24

D21927

BUSHING,51.03mm ID x 63.45mm OD x 50.8mm L

- upper swing

1шт.

25

D23601

HOUSING

BUSHING - pivotal ball type

1шт.

26

D24431

RING

- retaining, lower bushing

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT)

1шт.

28

D37183

CHAIN (AG)

CHAIN AND BLOCK - locking

2шт.

29

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31

D35580

COVER - locking cylinder

4шт.

32

138-210

LOCK PIN,1/2" x 3", Slotted

Pin, , D35580 cover 1/2" x 3", Slotted

4шт.

33

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, cover

4шт.

34

D35523

PISTON ASSY.

PISTON - locking cylinder

4шт.

35

R13774

O-RING,0.21" Thk x 2.975" ID, -337, Cl 5, 75 Duro

-337, 70 Duro, 2.975" ID x .210" Thk, Tube

4шт.

36

D35889

SEAL,76.2mm ID x 85.72mm OD x 2.39mm Thk

- leather back-up, tube seal

8шт.

37

D35540

SHOE

- locking

4шт.

38

D36878

HYDRAULIC CYLINDER

CYLINDER - swing, R.H. (Parts list Figure 137E)

1шт.

39

D36879

HYDRAULIC CYLINDER

CYLINDER - swing, L.H. (Parts list Figure 137E)

1шт.

40

D30724

PIN

- swing cylinder

4шт.

41

219-39

FITTING

- grease, 45 degrees (1/8" NPT)

4шт.

42

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

16шт.

43

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

44

D30761

PIN

- swing cylinder at tower

2шт.

45

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS - 5/8" - 11 NC x 4"

2шт.

46

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

47

25-1010

NUT,5/8"-11, G5

2шт.

48

219-39

FITTING

- grease, 45 degrees (1/8" NPT)

2шт.
