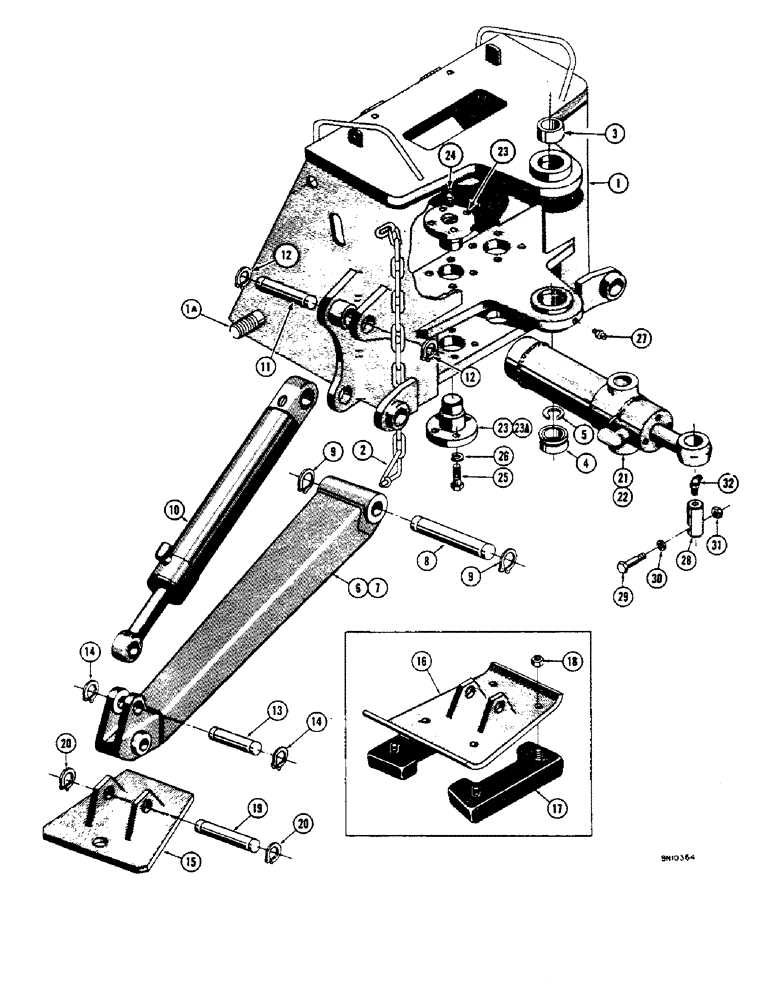

Запчасти Case 32 (080) - MOUNTING FRAME AND STABILIZERS
№
Артикул
Название
Примечание
Количество
1
D30703
FRAME - mounting, Includes: Ref. 1A - 5
1шт.
1a
D30661
STUD
- backhoe mounting
2шт.
2
D30078
CHAIN - lock
2шт.
3
D21927
BUSHING,51.03mm ID x 63.45mm OD x 50.8mm L
- upper swing
1шт.
4
D23601
HOUSING
BUSHING - pivotal ball type
1шт.
5
D24431
RING
SNAP RING - D23601 bushing
1шт.
6
D26908
SUPPORT
LEG - stabilizer, L.H.
1шт.
7
D26909
HOSE
LEG - stabilizer, R.H.
1шт.
8
D27187
AXLE PIN
PIN -, Serial Range: leg-frame
2шт.
9
D25280
SNAP RING,#175, Ext
Ring, Snap, , D27187 pin #175, Ext
4шт.
10
D27754
CYLINDER
- stabilizer (Parts list Figure 136)
2шт.
11
D25079
AXLE PIN,44.45mm OD x 157.2mm L
PIN -, Serial Range: cyl.-frame
2шт.
12
D25280
SNAP RING,#175, Ext
Ring, Snap, , D25079 pin #175, Ext
4шт.
13
D28037
AXLE PIN
PIN -, Serial Range: cyl.-leg
2шт.
14
D25279
SNAP RING,M35, Int
- D28037 pin
4шт.
15
D23313
FOOT
- cleated pad
2шт.
16
D23326
FOOT
- street or cemetary pad (Optional)
2шт.
17
D40469
SHOE (ASSY)
PAD - rubber (Optional)
4шт.
Replaced by D40469, which subs to R31222
1шт.
18
D29712
SPECIAL NUT
- hex., 7/16" - 20 NF (Special)
8шт.
19
D26104
PIN
- foot (Includes snap rings), Includes: Ref. 20
2шт.
20
D26918
SNAP RING,#125, Ext
Ring, Snap, , D26104 pin #125, Ext
2шт.
21
D30745
CYLINDER
- swing, R.H. (Parts list Figure 137C)
1шт.
22
D30746
CYLINDER
- swing, L.H. (Parts list Figure 137C)
1шт.
23
D30724
PIN
- swing cyl. (Two used on early production models)
4шт.
23a
D30725
X
PIN - swing cyl., lower (Early production only) Use 1-D30724 pin and 1-219-39 fitting
2шт.
24
219-39
FITTING
- grease, 45 degrees (1/8" NPT)
4шт.
25
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
16шт.
26
92-8
LOCK WASHER,1/2"
16шт.
27
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, str. (1/8" NPT)
1шт.
28
D30761
PIN
- swing cyl. at tower
2шт.
29
13-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 5
HHCS - 5/8" - 11 NC x 4"
2шт.
31
25-1010
NUT,5/8"-11, G5
2шт.
32
219-39
FITTING
- grease, 45 degrees (1/8" NPT)
2шт.
Выбрано товаров: 35
