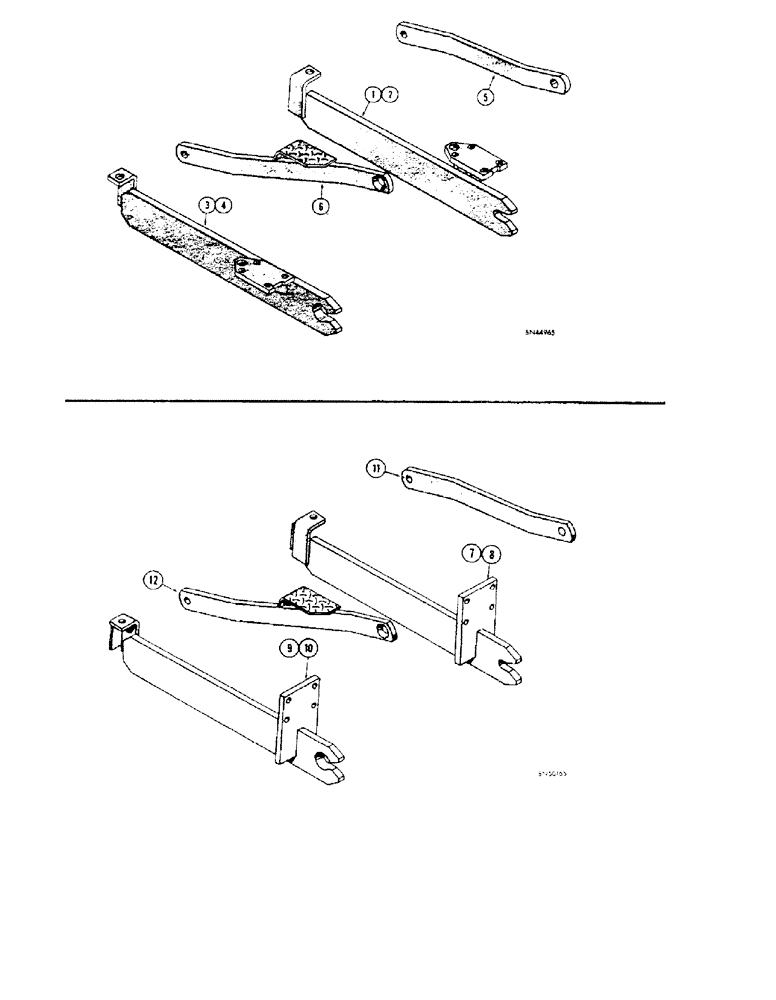

Запчасти Case 32 (078) - SPECIAL MOUNTING PARTS, (FOR USE ON W-3 OR 530SL LOADER)

1

D31162

ARM - support, R.H. (Used with cone washer and wrench and hammer nut) See Figure 74 (When stock is exhausted, use 1-D37545 and 1-D34027)

1шт.

2

D37545

ARM - support, R.H. (Used with star nut) See Figure 74

1шт.

3

D31161

ARM - support, L.H. (Use with cone washer and wrench and hammer nut) See Figure 74 (When stock is exhausted, use 1-D37544 and 1-D34027)

1шт.

4

D37544

ARM - support, L.H. (Used with star nut) See Figure 74

1шт.

5

D31163

BRACE - stabilizer, R.H. (For hardware see Figure 74)

1шт.

6

D31165

BRACE

- stabilizer, L.H. (For hardware see Figure 74)

1шт.

7

D31158

SUPPORT

ARM - Support, R.H. (Used with cone washer and wrench and hammer nut) See Figure 74 (When stock is exhausted, use 1-D37542 and 1-D34027)

1шт.

8

D37542

SUPPORT

ARM - support, R.H. (Used with star nut) See Figure 74

1шт.

9

D31159

SUPPORT

ARM - support, L.H. (Used with cone washer and wrench and hammer nut) See Figure 74 (When stock is exhausted, use 1-D37543 and 1-D34027)

1шт.

10

D37543

SUPPORT

ARM - support, L.H. (Used with star nut) See Figure 74

1шт.

11

D31163

BRACE - stabilizer, R.H. (For hardware see Figure 74)

1шт.

12

D31165

BRACE

- stabilizer, L.H. (For hardware see Figure 74)

1шт.
