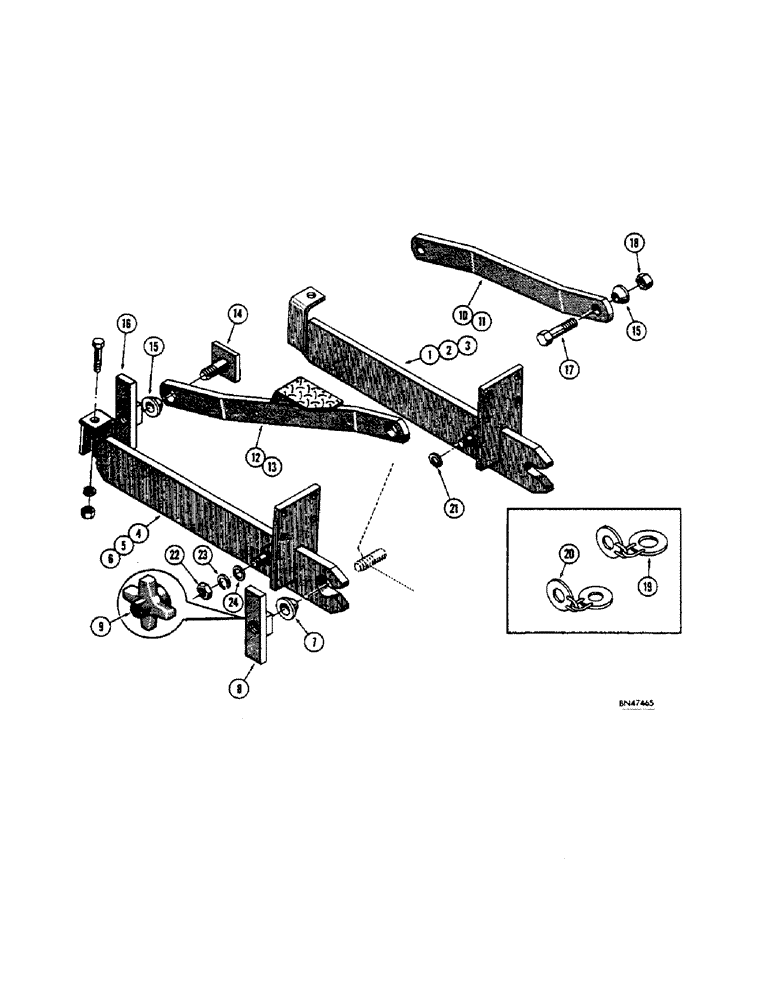

Запчасти Case 32 (076) - MOUNTING PARTS (WITH DRAFT-O-MATIC), MOUNTING PARTS (WITH P.T.O.)

1

D31721

X

ARM - support, R.H. (Draft-O-Matic only) Used before backhoe sn. 4103251 (When stock is exhausted, use 1-D35943 and 1-D34027)

1шт.

D32735

X

ARM - support, R.H. (PTO) Used before backhoe sn. 4103251 (When stock is exhausted, use 1-D36044 and 1-D34027)

1шт.

2

D35943

ARM - support, R.H. (Draft-O-Matic only) Used on backhoe sn. 4103251 thru 4104526

1шт.

D36044

SPLIT PIN/SAFETY PIN

ARM - support, R.H. (PTO) Used on backhoe sn. 4103251 thru 4104526

1шт.

3

D37081

ARM - support, R.H. (Draft-O-Matic only) Used on backhoe sn. 4104527 and after

1шт.

D36980

ARM - support, R.H. (PTO) Used on backhoe sn. 4104527 and after

1шт.

4

D31722

X

ARM - support, L.H. (Draft-O-Matic only) Used before backhoe sn. 4103251 (When stock is exhausted use 1-D35944 and 1-D34027)

1шт.

D32734

X

ARM - support, L.H. (PTO) Used before backhoe sn. 4103251 (When stock is exhausted use 1-D36045 and 1-D34027)

1шт.

5

D35944

ARM - support, L.H. (Draft-O-Matic) Used on backhoe sn. 4103251 thru 4104526

1шт.

D36045

BRACKET

ARM - support, L.H. (PTO) Used on backhoe sn.4103251 thru 4104526

1шт.

6

D37082

ARM - support, L.H. (Draft-O-Matic only) Used on backhoe sn. 4104527 and after

1шт.

D36981

ARM - support, L.H. (PTO) Used on backhoe sn. 4104527 and after

1шт.

7

D30714

WASHER

- cone (Used before backhoe sn. 4103251)

2шт.

8

D31495

BLOCK

NUT - wrench and hammer (Used before backhoe sn. 4103251)

2шт.

9

D34027

NUT

- star (Use on loader sn. 4103251 and after)

2шт.

10

D31725

BRACE - stabilizer, R.H. (Draft-O-Matic)

1шт.

11

D32731

BRACE - stabilizer, R.H. (PTO)

1шт.

12

D31726

BRACE - stabilizer, L.H. (Draft-O-Matic)

1шт.

13

D32732

SCREW

BRACE - stabilizer, L.H. (PTO)

1шт.

14

D32520

STUD

ASSEMBLY - in ldr. frame

2шт.

15

D30717

WASHER

- cone

4шт.

16

D31496

SPECIAL NUT

NUT - wrench and hammer

2шт.

17

D30716

BOLT

HHCS - 1-1/4" - 7 NC x 4-1/2"

2шт.

18

25-1620

NUT,1 1/4"-7, G5, Hvy

3NUT - hex. (1-1/4" - 7 NC)

2шт.

19

D31718

LINK - transport, R.H.

1шт.

20

D31720

PIPE

LINK - transport, L.H.

1шт.

21

B18206

SNAP RING,#87, Ext

Ring, Snap, , support studs #87, Ext

2-4шт.

22

25-1010

NUT,5/8"-11, G5

If used 5/8"-11, G5

2шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , If used 5/8"

2шт.

24

95-10

WASHER,5/8"

- std. wrot () If used 5/8"

2шт.
