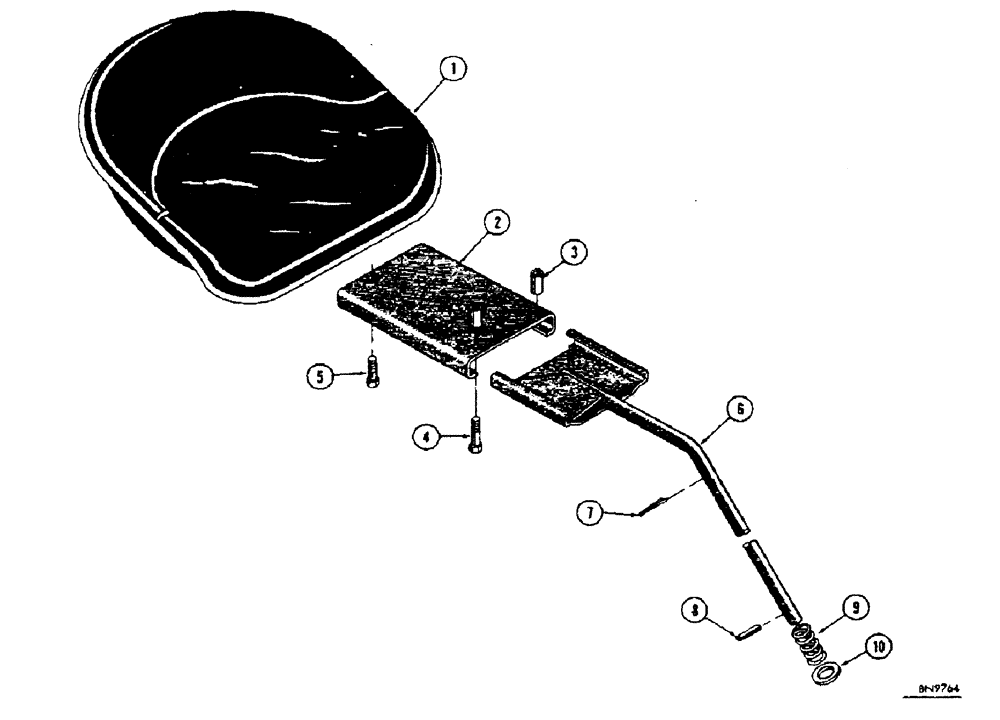

Запчасти Case 32 (074) - BACKHOE SEAT

D31309

SEAT

ASSEMBLY, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SEAT - padded pan

1шт.

2

D31308

ADJUSTER

SLIDE - upper

1шт.

3

D31306

SPACER

2шт.

4

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - front (5/16" - 18 NC x 1-3/4")

2шт.

5

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Rear Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

6

D32380

SEAT

ROD ASSEMBLY - support

1шт.

7

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

8

138-207

LOCK PIN,1/2" x 2 1/4", Slotted

roll (1/2" dia. x 2-1/2" long)

1шт.

9

D25773

SPRING

seat lock

1шт.

10

B18275

WASHER

1-1/32" I.D. x 1-1/2" O.D. x 7/32" thick

1шт.
