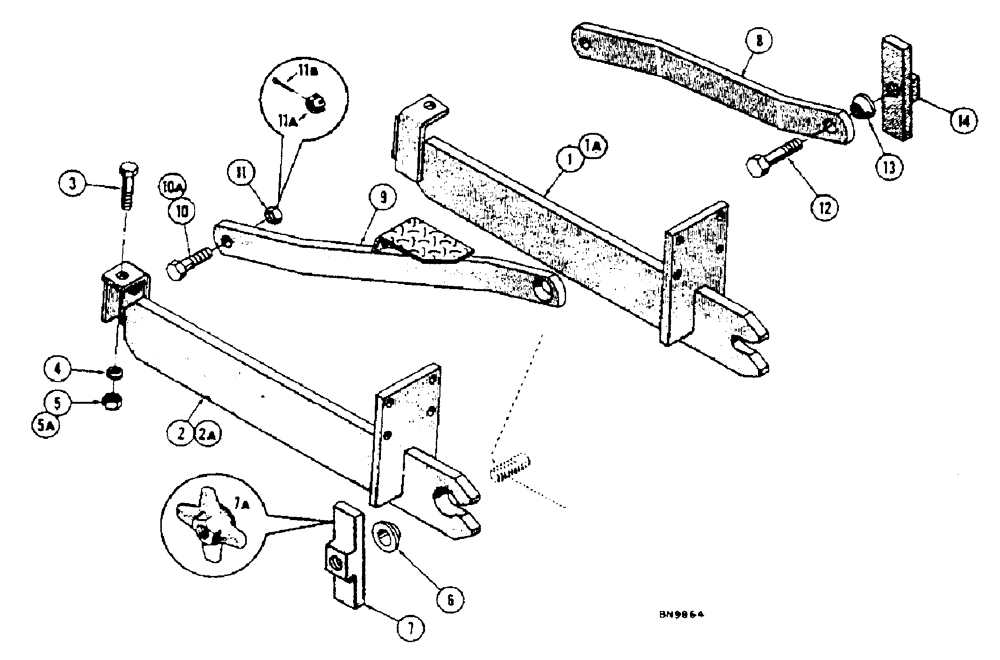

Запчасти Case 32 (074[1]) - MOUNTING PARTS (STANDARD)

1

D30723

X

ARM - support, R.H. (Used before backhoe sn. 4103251) When stock is exhausted, use 1-D35940 and 1-D34027

1шт.

1a

D35940

ARM

- support, R.H. (Used on backhoe sn. 4103251 and after)

1шт.

2

D30722

X

ARM - support, L.H. (Used before backhoe sn. 4103251) When stock is exhausted, use 1-D35941 and 1-D34027

1шт.

2a

D35941

ARM

- support L.H. (Used on backhoe sn. 4103251 and after)

1шт.

3

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

4

192-167

LOCK WASHER,3/4"

WASHER, LOCK, , If used 3/4"

2шт.

5

25-1012

NUT,3/4"-10, G5

If used 3/4"-10, G5

2шт.

5a

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC) If used

2шт.

6

D30714

WASHER

- cone (Used before backhoe sn. 4103251)

2шт.

7

D31495

BLOCK

NUT - wrench and hammer (Used before backhoe sn. 4103251)

2шт.

7a

D34027

NUT

- star (Used on backhoe sn. 4103251 and after)

2шт.

8

D30726

ARM

BRACE - stabilizer, R.H.

1шт.

9

D30730

BRACE

- stabilizer, L.H.

1шт.

10

D24476

X

HHCS - 1-1/4" - 7 NC x 3-1/4" (When stock is exhausted, use refs 10A, 11A and 11B)

2шт.

10a

D37615

BOLT

HHCS - 1-1/4" - 7 NC x 3-1/4" (Special)

2шт.

11

25-1620

NUT,1 1/4"-7, G5, Hvy

- hex. (1-1/4" - 7 NC) If used

2шт.

11a

25-1220

SLOTTED NUT,1 1/4"-12, G5

NUT - slotted (1-1/4" - 7 NC) If used

2шт.

11b

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

12

D30716

BOLT

HHCS - 1-1/4" - 7 NC x 4 1/2"

2шт.

13

D30717

WASHER

- cone

2шт.

14

D31496

SPECIAL NUT

NUT - wrench and hammer

2шт.
