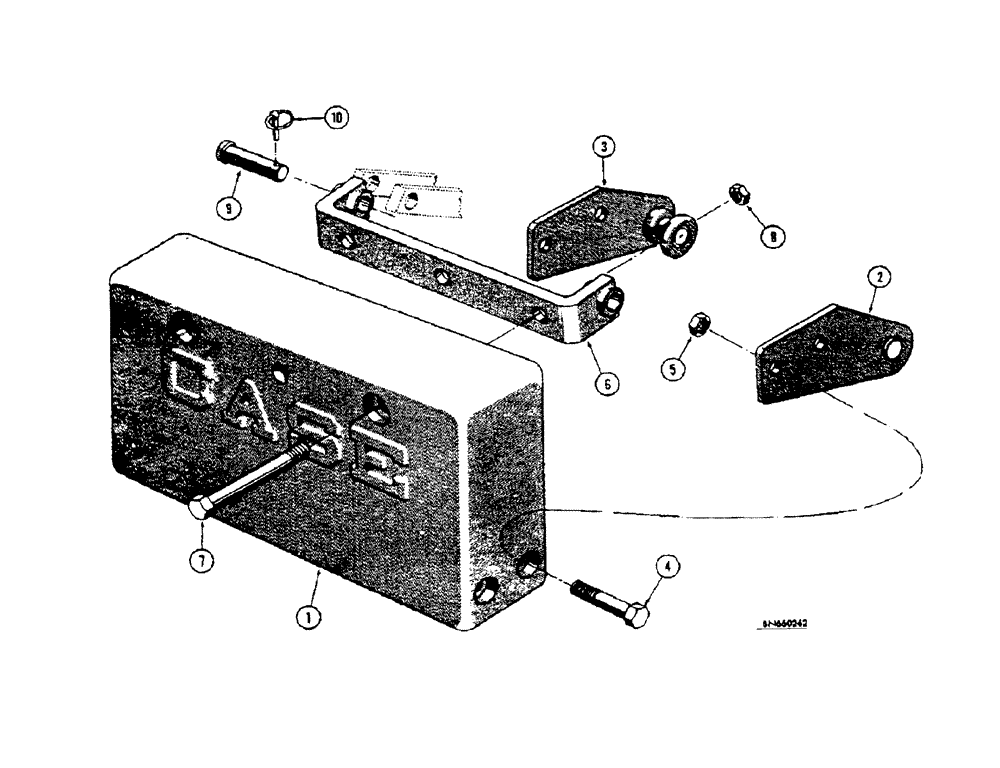

Запчасти Case 32 (072[1]) - 1400 LB. REAR COUNTERWEIGHT (BACKHOE REMOVED)

1

D31204

BALANCER

COUNTERWEIGHT - 1400 lbs.

1шт.

2

D37134

ARM

- support, R.H.

1шт.

3

D37135

ARM

- support, L.H.

1шт.

4

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

5

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

4шт.

6

D37534

BRACKET - attaching top

1шт.

7

13-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

2шт.

8

230-41116

NUT,1"-8, GA

NUT - hex. lock (1" - 8 NC)

2шт.

9

NLS

NO LONGER SERVICED

- attaching

2шт.

10

D33805

PIN

- klick

2шт.
