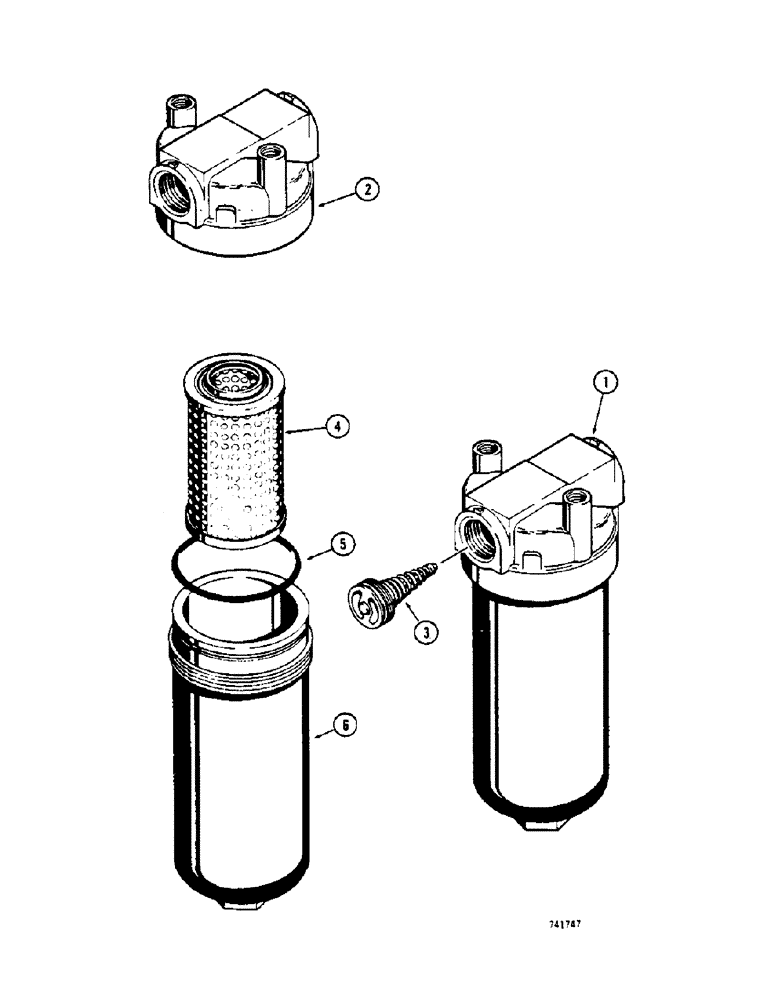

Запчасти Case 32 (071A) - D43567 HYDRAULIC OIL FILTER, SERVICE REPLACEMENT

1

D43567

FILTER ASSY

- hydraulic oil, Includes: Ref. 2 - 6

1шт.

D42440

FILTER HEAD

HEAD ASSEMBLY - filter, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

3

D49377

LOCK VALVE

VALVE - oil, by-pass (25 P.S.I.)

1шт.

D43800

FILTER, ELEMENT

ELEMENT KIT - filter, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

5

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

6

D42439

HOUSING

- filter

1шт.
