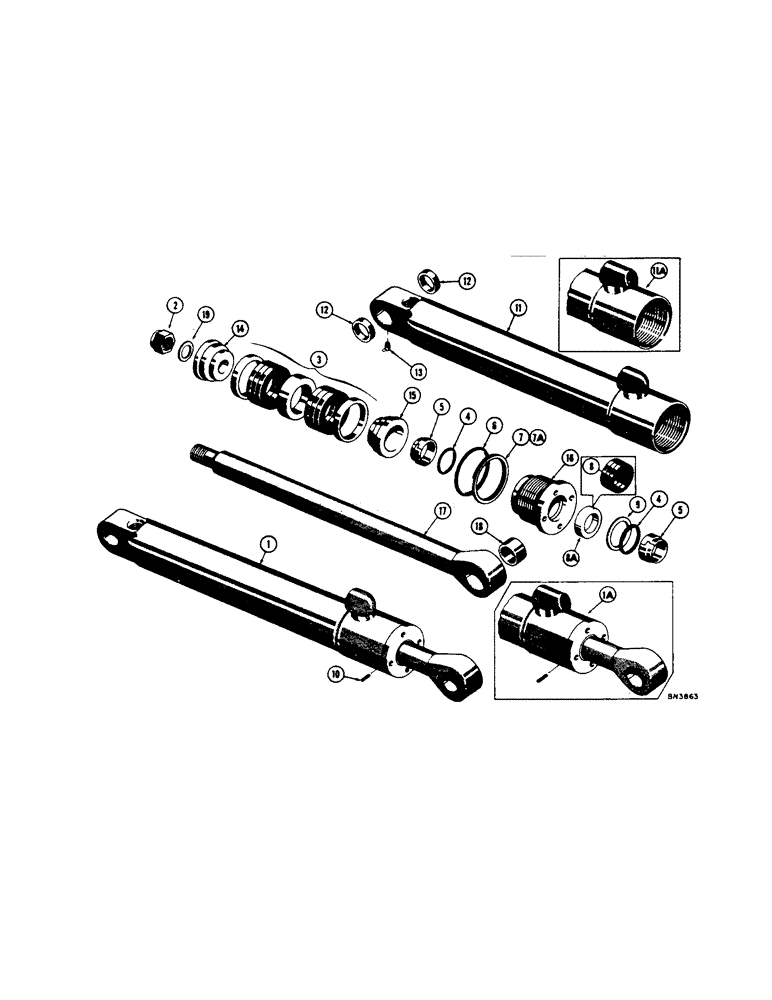

Запчасти Case 32 (070) - HYDRA-LEVELING CYLINDER

1

D31225

CYLINDER - hydra-leveling, 3" I.D. x 9-15/16" stroke (Used before ldr. sn. 4110090), Includes: Ref. 2 - 19

1шт.

1a

D36882

CYLINDER

- hydra-leveling, 3" I.D. x 9-15/16" stroke (Used on ldr. sn. 4110090 and after), Includes: Ref. 2 - 19

1шт.

D37355

KIT - cyl. packing, Includes: Ref. 2 - 19

1шт.

2

131-19

LOCK NUT,1"-14, GB

NUT - lock (1" - 14 NF)

1шт.

3

D28374

PACKAGE,SERVICE

PACKING - piston

1шт.

4

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

5

D27432

SHIM

- piston rod

2шт.

6

O8347AB

X

SEAL - "O" ring, tube

1шт.

7

D28049

RING

- backup, tube seal (When stock is exhausted, use D36093)

1шт.

7a

D36093

WASHER

RING - backup, tube seal

1шт.

8

D28495

PACKING

SEAL - rod, three piece (Use D36970)

1шт.

8a

D36970

CUP

SEAL - rod, one piece

1шт.

9

D28499

RING

- backup, rod seal

3шт.

Not used on latest production.

1шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , if used 3/16" x 5/8", Slotted

1шт.

11

D31230

TUBE - cylinder (D31225 cyl. only), Includes: Ref. 12

1шт.

11a

D36883

TUBE - cylinder (D36882 cyl. only), Includes: Ref. 12

1шт.

12

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- end, 1-7/8" O.D. (If used)

2шт.

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- end, 1-3/4" O.D. (If used)

2шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

14

D28896

PISTON

- half, closed end

1шт.

15

D28897

PISTON

- half, rod end

1шт.

16

D28895

GLAND

- packing

1шт.

17

D31227

ROD

- piston (1-3/4" dia.), Includes: Ref. 18

1шт.

18

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- 1-7/8" O.D., if used

1шт.

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- 1-3/4" O.D., if used

1шт.

19

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special, if used

1шт.
