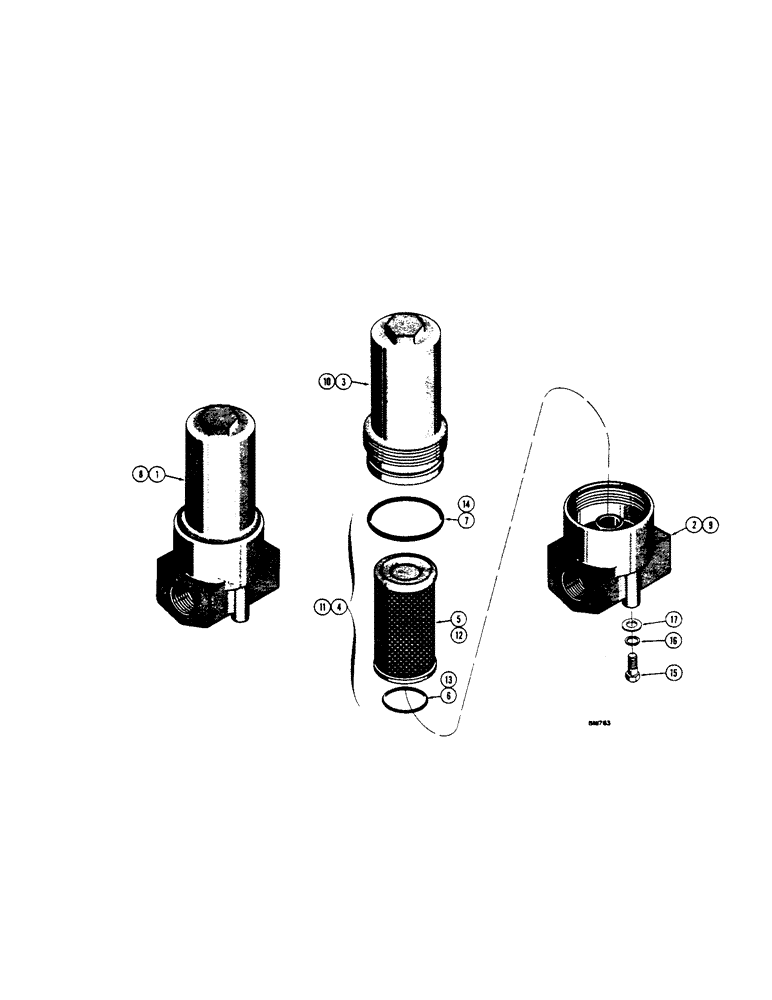

Запчасти Case 32 (070[1]) - D31338 HYDRAULIC OIL FILTER

1

D31338

X

FILTER - hyd. oil (Early production) With metal element (Use 1-D32254 filter and 2-221-65 bushings), Includes: Ref. 2 - 7

1шт.

For service, see Figure 71A.

1шт.

2

D31424

X

HEAD - D31338 filter (Use 1-D31874 head, 1-D32212 kit, and 2-221-65 bushings)

1шт.

3

R20645

HOUSING

- filter

1шт.

4

D32211

FILTER, ELEMENT

KIT - element, D31338 filter, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

ELEMENT - metal

1шт.

6

O9018AB

X

SEAL - "O" ring, element

1шт.

7

O10021AB

X

SEAL - "O" ring, cap

1шт.

8

D32254

FILTER ASSY

- hyd. oil (Late production) With paper element, Includes: Ref. 9 - 14

1шт.

For service, see Figure 71A.

1шт.

9

D31874

HEAD

- D32254 filter

1шт.

10

R20645

HOUSING

- filter

1шт.

11

D32212

FILTER, ELEMENT

KIT - element, D32254 filter, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

ELEMENT - paper

1шт.

13

O9018AB

X

SEAL - "O" ring, element

1шт.

14

O10021AB

X

SEAL - "O" ring, cap

1шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

16

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

17

195-33

WASHER,1/2"

- plin () 1/2"

2шт.
