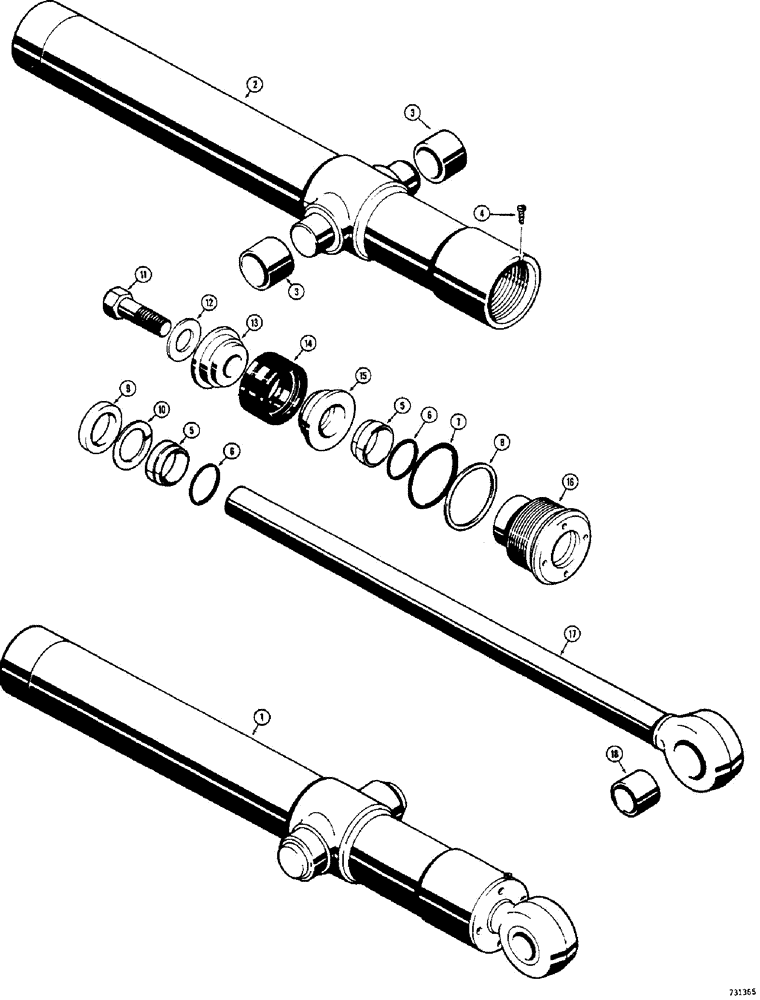

Запчасти Case 32 (068) - DUMP CYLINDER (Feb 10 2006 12:46PM)

1

D31100

HYDRAULIC CYLINDER

CYLINDER - dump, R.H. (2-1/2" I.D. x 20" stroke), Includes: Ref. 2 - 10

1шт.

D31101

CYLINDER ASSY.

CYLINDER - dump, L.H. (2-1/2" I.D. x 20" stroke), Includes: Ref. 2 - 10

1шт.

D37352

GLAND

KIT - cyl. packing, Includes: Ref. 2 - 10

1шт.

2

D23739

LOCK NUT

NUT - lock, 3/4" - 16 NF (If used)

1шт.

3

D28373

PACKING

- piston

1шт.

4

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper

2шт.

5

D27706

WIPER SEAL

WIPER - piston rod

2шт.

6

O10984AB

X

SEAL - "O" ring, tube

1шт.

7

D27856

RING

- backup, tube seal (When stock is exhausted, use D36092)

1шт.

7a

D36092

BACK-UP RING

RING - backup, tube seal

1шт.

8

D28494

SEAL

- rod, three piece (Use D36969)

1шт.

8a

D36969

CUP

SEAL - rod, one piece

1шт.

9

D28498

RING

- backup, rod seal

3шт.

Not used on latest production.

1шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , if used 3/16" x 5/8", Slotted

1шт.

11

D29306

BOLT

SCREW - cap, special (3/4" - 16 NF x 2-1/2") If used

1шт.

11a

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special (If used)

1шт.

12

D31098

TUBE

- R.H. cyl.

1шт.

13

D31099

TUBE

- L.H. cyl., Includes: Ref. 14

1шт.

14

D28373

PACKING

- cyl. tube

2шт.

15

D28364

PISTON

- half, closed end

1шт.

16

D28363

PISTON

- half, rod end

1шт.

17

D27999

GLAND

- packing

1шт.

18

D31094

X

ROD - piston (1-1/2" dia.) When stock is exhausted, use 1-D32146 rod and 1-D29306 cap screw

1шт.

19

D32146

ROD

- piston (1-1/2" dia.), Includes: Ref. 20

1шт.

20

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- piston rods

1шт.
