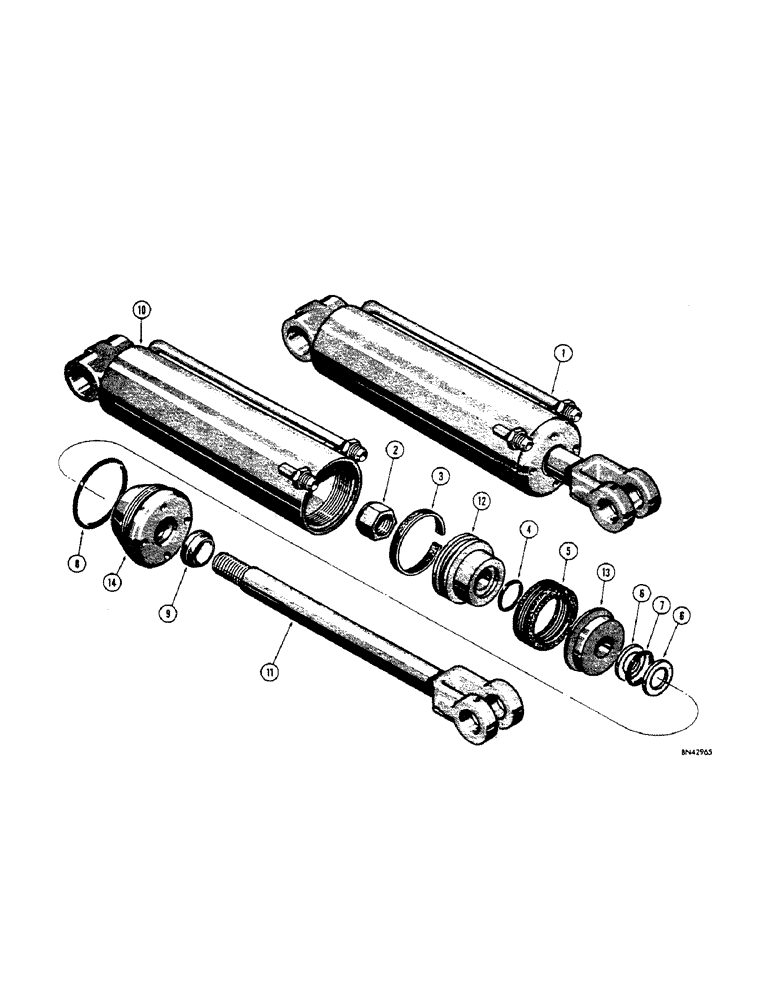

Запчасти Case 32 (068[1]) - D38367 DROTT CLAM CYLINDER

1

D38367

CYLINDER BLOCK

CYLINDER - clam (3-1/2" I.D. x 8.10" stroke), Includes: Ref. 2 - 14

1шт.

D35644

CYLINDER

KIT - cylinder packing, Includes: Ref. 2 - 14

1шт.

2

D35645

X

NUT - nylon self-locking (1-1/8" - 13 NF)

1шт.

3

A18693

RING

- wear

1шт.

4

O8346AB

X

SEAL - "O" ring

1шт.

5

A18684

PACKING

- piston

1шт.

6

A18686

WASHER

- leather

2шт.

7

A18687

O-RING

SEAL - "O" ring

1шт.

8

VT2991

X

SEAL - "O" ring

1шт.

9

A18690

RING

- wiper, piston rod

1шт.

10

D38369

TUBE - cylinder

1шт.

11

D38585

ROD

- piston

1шт.

12

A18682

PISTON

- half, closed end

1шт.

13

D35619

PISTON - half, rod end

1шт.

14

A18689

GLAND

- cylinder

1шт.
