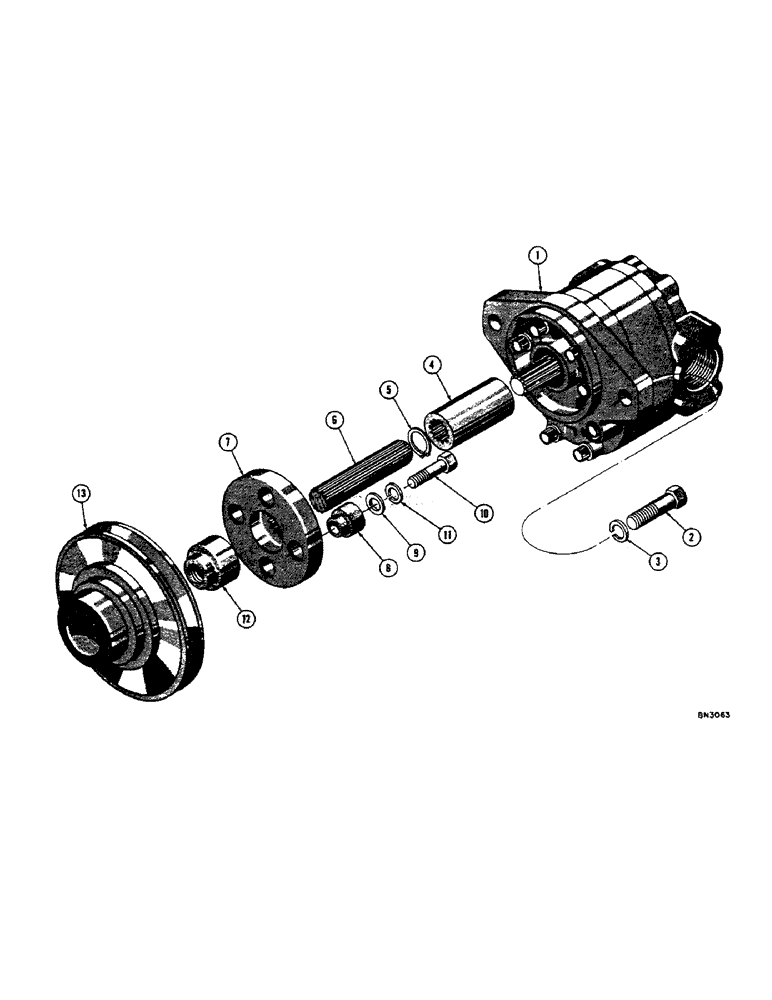

Запчасти Case 32 (066) - PUMP DRIVE

1

D31254

X

PUMP - hydraulic (Parts list Figure 34)

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

D31108

SPLINED COUPLING

COUPLING ASSEMBLY - pump to shaft, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

COUPLING

1шт.

5

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , D31108 coupling 0.75", Int, #75

1шт.

6

D30569

SHAFT

- pump drive

1шт.

7

D140524

FLEXIBLE COUPLING,13T

COUPLING - flexible, Includes: Ref. 8

1шт.

8

G36905

BLOCK

AND BUSHING - flex. coupling

4шт.

9

VT3340

X

WASHER - coupling bolt (29/64" I.D. x 3/4" O.D. x 1/16" thick)

4шт.

10

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

11

92-7

LOCK WASHER,7/16"

4шт.

12

A35673

NUT

- fan drive pulley

1шт.

13

G11342

X

PULLEY - fan and gen. drive

1шт.
