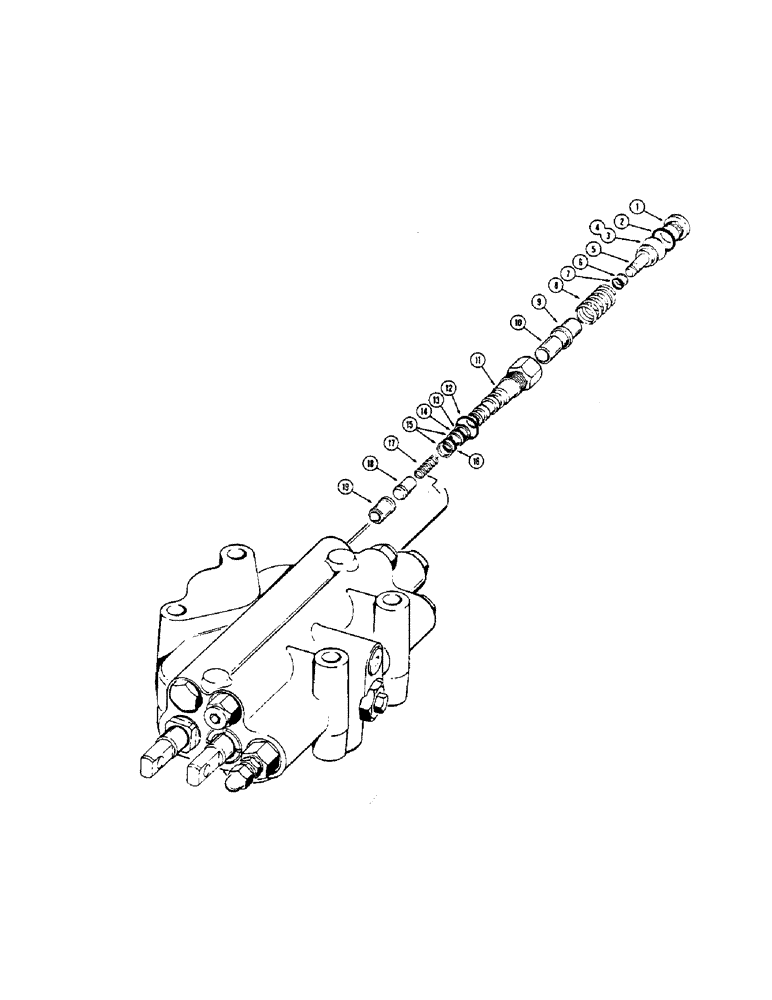

Запчасти Case 32 (065G) - LOADER CONTROL VALVE, SECONDARY RELIEF VALVE

1

D40354

PLUG

- secondary relief, Includes: Ref. 2

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, plug

1шт.

3

D40355

SHIM,.005" Thk

Spring guide .005" Thk

1шт.

4

16917

SHIM

- spring guide, .0105"

1шт.

5

D37073

GUIDE

- spring

1шт.

6

D40357

RING

- backup, spring guide

1шт.

7

D40356

O-RING

SEAL - "O" ring, spring guide

1шт.

8

D37148

SPRING

- plunger

1шт.

9

D37074

PLUNGER

- relief valve

1шт.

10

D37075

SEAT

- plunger

1шт.

11

D37072

CAP

BODY - secondary relief valve

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Valve body (Large)

1шт.

13

D37071

RING

- backup, center "O" ring

1шт.

14

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O" ring, relief body (Center)

1шт.

15

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, small "O" ring

1шт.

16

D37149

O-RING,104 mm ID

SEAL - "O" ring, relief body (Small)

1шт.

17

D37067

SPRING

- poppet

1шт.

18

D37068

VALVE POPPET

POPPET - check valve

1шт.

19

D37069

SLEEVE

SEAT - poppet

1шт.
