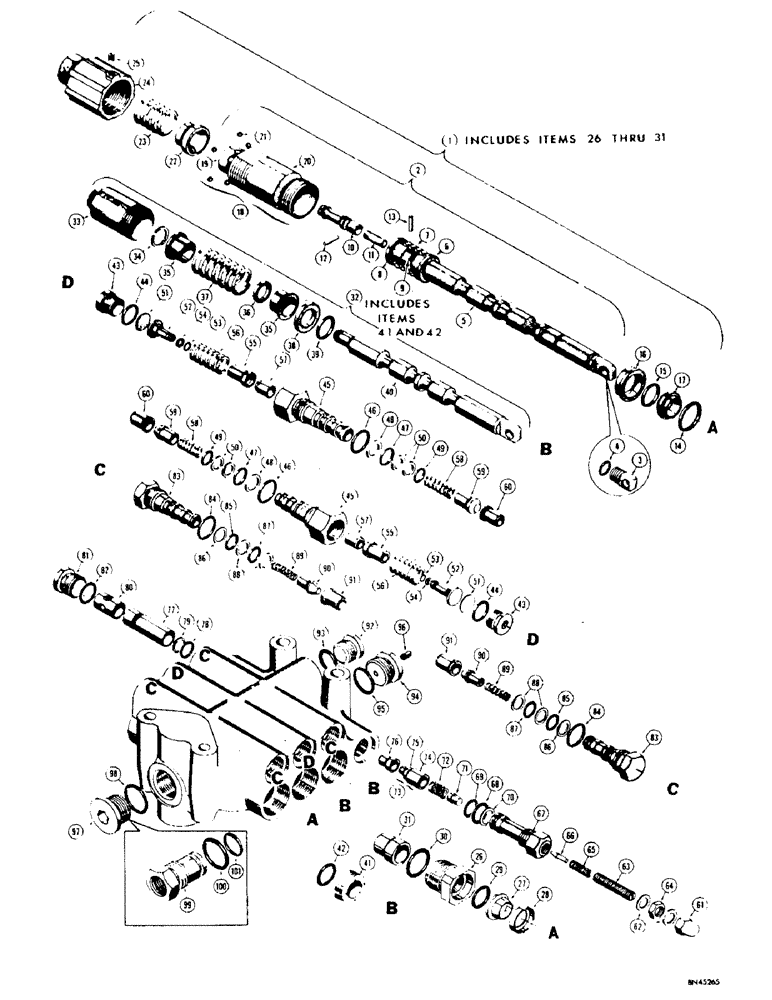

Запчасти Case 32 (060) - D36726 LOADER CONTROL VALVE

D36726

VALVE - hydraulic control (See Figure 52) Parker series VDP-22 (Use D45478 valve, Figure 65A), Includes: Ref. 1 - 96

1шт.

NSS

NOT SOLD SEPARAT

BODY - valve (Use D36826)

1шт.

1

D37054

SPOOL

ASSEMBLY - four position (Color code - black or letter code -W) .737" to .73709" (Use D46024, Figure 65E), Includes: Ref. 2 - 31

1шт.

D37055

SPOOL

ASSEMBLY - four position (Color code - blue or letter code -X) .7371" to .73719" (Use D46025, Figure 65E), Includes: Ref. 2 - 31

1шт.

D37056

SPOOL

ASSEMBLY - four position (Color code - yellow or letter code - Y) .7372" to .73729" (Use D46026, Figure 65E), Includes: Ref. 2 - 31

1шт.

D37057

SPOOL ASSEMBLY - four position (Color code - green or letter code - Z) .7373" to .7374 (Use D46027, Figure 65E), Includes: Ref. 2 - 31

1шт.

2

D37058

KIT

- D37054 spool assembly, Includes: Ref. 3 - 13

1шт.

D37059

KIT - D37055 spool assembly, Includes: Ref. 3 - 13

1шт.

D37060

SPOOL

KIT - D37056 spool assembly, Includes: Ref. 3 - 13

1шт.

D37061

KIT

- D37057 spool assembly, Includes: Ref. 3 - 13

1шт.

3

NSS

NOT SOLD SEPARAT

EYE - spool

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, spool eye

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - four position

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER - centering spring, rear

1шт.

7

A16882

SPRING

- centering

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - centering spring, front

1шт.

9

NSS

NOT SOLD SEPARAT

STUD - detent barrel

1шт.

10

D33859

SCREW

BARREL - detent

1шт.

11

D33858

LINK

- detent barrel

1шт.

12

138-2012

PIN,1/8" x 1/2", Coiled

Barrel link, rear 1/8" x 1/2", Coiled

1шт.

13

138-2013

PIN,1/8" x 9/16", Coiled

1/8" x 5/8", Coiled, barrel link, front

1шт.

14

A16877

SEAL

- "O" ring, outer

1шт.

15

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, inner

1шт.

16

D33856

RETAINER

- "O" ring, rear

1шт.

17

D33857

RETAINER

- "O" ring, front

1шт.

18

D32592

SLEEVE ASSY

CAP AND SLEEVE ASSEMBLY, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

SLEEVE - detent

1шт.

20

NSS

NOT SOLD SEPARAT

CAP - front

1шт.

21

211-5

BALL,3/16" Dia

- steel (.) 3/16" Dia

6шт.

22

A16852

RETAINER

- ball

1шт.

23

D31434

X

SPRING - detent

1шт.

24

A16884

CYLINDER END CAP

CAP - rear

1шт.

25

178-28

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

SCREW - set, socket head (1/4" - 20 NC x 1/2")

1шт.

26

D37152

RETAINER

GLAND - spool

1шт.

27

A14527

SCRAPER

RING - wiper

1шт.

28

D37153

RETAINER

- wiper ring

1шт.

29

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, gland (Front)

1шт.

30

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

SEAL - "O" ring, gland (Rear)

1шт.

31

D37076

SLEEVE

- spool

1шт.

32

D37050

SPOOL

ASSEMBLY - three position (Color code - black or letter code - W) .737" to .73709", Includes: Ref. 33 - 42

2шт.

D37051

SPOOL

ASSEMBLY - three position (Color code - blue or letter code - X) .7371" to .73719", Includes: Ref. 33 - 42

2шт.

D37052

SPOOL

ASSEMBLY - three position (Color code - yellow or letter code - Y) .7372" to .73729", Includes: Ref. 33 - 42

2шт.

D37053

SPOOL

ASSEMBLY - three position (Color code - green or letter code - Z) .7373" to .7374", Includes: Ref. 33 - 42

2шт.

33

A14529

CAP

- three position spool

1шт.

34

A13190

X

SNAP RING - spring retainer

1шт.

35

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

36

A25286

WASHER

- special

1шт.

37

A14534

SPRING

- spool return

1шт.

38

A14535

RETAINER

SPACER - three position spool

1шт.

39

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, spacer

1шт.

40

NSS

NOT SOLD SEPARAT

SPOOL - three position

1шт.

41

A25281

X

GLAND AND WIPER

1шт.

42

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

43

214389

PLUG,3/4" - 16 ORB

Secondary relief, Includes Ref. 44 Hex Hd, 3/4"-16 ORB

2шт.

44

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

45

D37072

CAP

- secondary relief

2шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Relief cap (Large)

2шт.

47

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O" ring, relief cap (Center)

2шт.

48

D37071

RING

- backup, center "O" ring

2шт.

49

D37149

O-RING,104 mm ID

SEAL - "O" ring, relief cap (Small)

2шт.

50

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, small "O" ring

4шт.

51

16917

SHIM

- spring guide

1шт.

52

D37073

GUIDE

- spring

2шт.

53

D37155

SEAL

- "O" ring, spring guide

2шт.

54

D37147

RING

- backup, spring guide

2шт.

55

D37074

PLUNGER

- relief valve

2шт.

56

D37148

SPRING

- relief valve

2шт.

57

D37075

SEAT

- relief valve

2шт.

58

D37067

SPRING

- poppet

2шт.

59

D37068

VALVE POPPET

POPPET - check valve

2шт.

60

D37069

SLEEVE

- check seat

2шт.

61

D20756

X

NUT - acorn, main relief valve

1шт.

62

D26270

WASHER, SEALING

WASHER - special

2шт.

63

82-528

SET SCREW

SCREW - adjusting, main relief valve

1шт.

64

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

1шт.

65

D26268

SPRING

- pilot

1шт.

66

D26267

PLUNGER

- relief valve

1шт.

67

A25291

CAP

- relief valve

1шт.

69

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O" ring, relief valve cap (Small)

1шт.

68

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, relief valve cap (Large)

1шт.

70

D26264

X

RING - backup, small "O" ring

1шт.

71

D26266

SEAT

- relief valve

1шт.

72

D52319

SPRING

- relief valve

1шт.

74

NSS

NOT SOLD SEPARAT

PLUNGER - poppet

1шт.

73

D37062

VALVE

POPPET ASSEMBLY, Includes: Ref. 74 and 75

1шт.

75

NSS

NOT SOLD SEPARAT

SCREEN - poppet

1шт.

76

D37063

SEAT

- poppet

1шт.

77

D37064

SLEEVE

- poppet seat

1шт.

78

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O" ring, sleeve

1шт.

79

D26264

X

RING - backup, D26265 seal

1шт.

80

D37065

SLEEVE

- drain

1шт.

83

D37066

CAP

- check valve

4шт.

81

214389

PLUG,3/4" - 16 ORB

. Main relief valve, Includes Ref. 82 Hex Hd, 3/4"-16 ORB

1шт.

84

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL -"O" ring, check valve cap (Large)

4шт.

82

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, 218-5156 plug

1шт.

85

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O" ring, check valve cap (Center)

4шт.

86

D37071

RING

- backup, center "O" ring

2шт.

87

D37149

O-RING,104 mm ID

SEAL - "O" ring, check valve cap (Small)

2шт.

89

D37067

SPRING

- check valve

2шт.

90

D37068

VALVE POPPET

POPPET - check valve

2шт.

88

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, small "O" ring, Includes: Ref. 89

4шт.

91

D37069

SLEEVE

- check seat

2шт.

95

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D38825 adapter

1шт.

92

214389

PLUG,3/4" - 16 ORB

Valve port, Includes Ref. 93 Hex Hd, 3/4"-16 ORB

1шт.

96

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, sq. hd. (1/4" NPT)

1шт.

93

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, 218-5156 plug

1шт.

94

D38825

ADAPTER

- valve port, Includes: Ref. 95

1шт.

98

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, 218-5160 plug

1шт.

100

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring (Large)

1шт.

97

273916

PLUG,Hex, 1-5/16" - 12 ORB

Valve port (If used), Includes Ref. 98 Hex Hd, 1 5/16"-12 ORB

1шт.

101

A25590

O-RING,15" ID x 1 1" OD x 3/32"

SEAL - "O" ring (Small)

1шт.

99

D35401

FITTING

- carryover (If used), Includes: Ref. 100 and 101

1шт.
