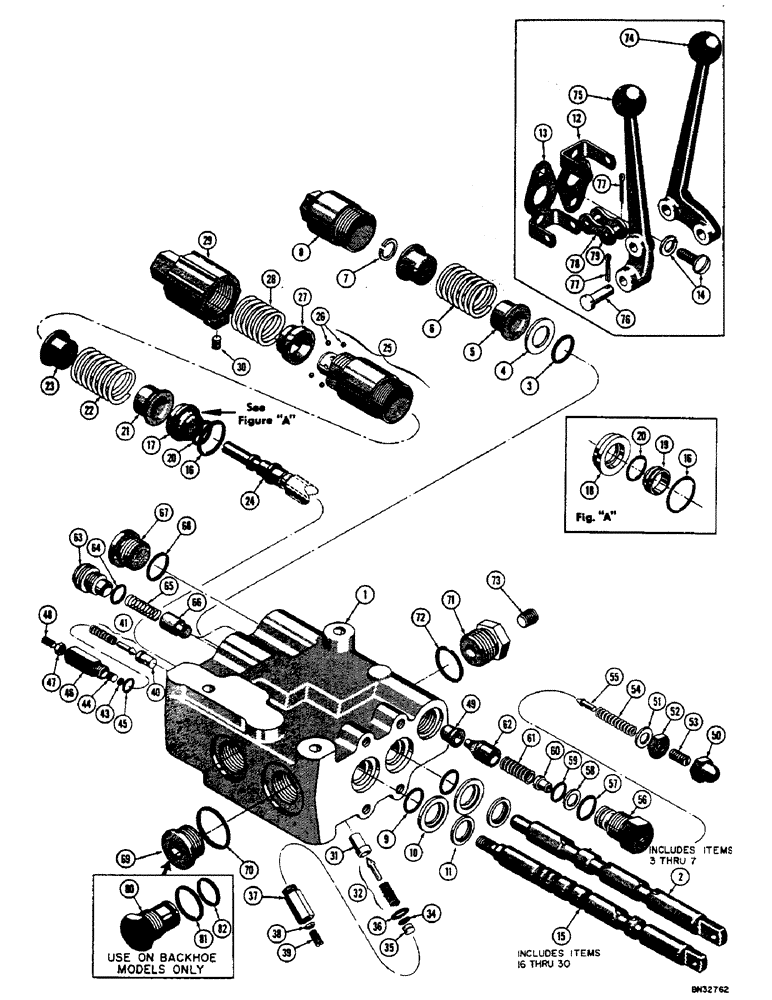

Запчасти Case 32 (036) - D31264 LOADER CONTROL VALVE

D31264

VALVE - hydraulic control (Use D32769) Parker series VDP-12, Includes: Ref. 1 - 73

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Use D31264)

1шт.

2

D26243

SPOOL ASSEMBLY - three position (Color code - black, letter code - W) .73700" to .73709", Includes: Ref. 3 - 7

1шт.

D26244

SPOOL

ASSEMBLY - three postion (Color code - blue, letter code - X) .73710" to .73719", Includes: Ref. 3 - 7

1шт.

D26245

SPOOL ASSEMBLY - three position (Color code - yellow, letter code - Y) .73720" to .73729", Includes: Ref. 3 - 7

1шт.

D26246

SPOOL ASSEMBLY - three position (Color code green, letter code - Z) .73730" to .73740", Includes: Ref. 3 - 7

1шт.

3

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

4

A14535

RETAINER

- "O" ring

1шт.

5

A14533

BRONZE BUSHING

SPACER - spring

2шт.

6

A14534

SPRING

- spool return

1шт.

7

A13190

X

SNAP RING - retaining

1шт.

8

A14529

CAP

- spool

1шт.

9

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

10

A14526

RETAINER

- "O" ring

2шт.

11

A14527

SCRAPER

SEAL - wiper

2шт.

12

D26283

BRACKET

RETAINER - handle brkt., short

1шт.

13

D32102

SPARE PART

RETAINER - handle brkt., long

1шт.

14

D20771

SCREW AND LOCKWASHER

4шт.

15

D29847

SPOOL ASSEMBLY - four position (Color code - black, letter code - W) .73700" to .73709" (Use D32605) See Figure 40, Includes: Ref. 16 - 30

1шт.

D11723

SPOOL ASSEMBLY - four position (Color code - blue, letter code - X) .73710" to .73719" (Use D32604) See Figure 40, Includes: Ref. 16 - 30

1шт.

D29848

SPOOL ASSEMBLY - four position (Color code - yellow, letter code - Y) .73720" to .73729" (Use D32606) See Figure 40, Includes: Ref. 16 - 30

1шт.

D29849

SPOOL ASSEMBLY - four position (Color code - green, letter code - Z) .73730" to .73740" (Use D32607) See Figure40, Includes: Ref. 16 - 30

1шт.

NSS

NOT SOLD SEPARAT

SPOOL - float

1шт.

16

A16877

SEAL

- "O" ring, outer

1шт.

17

D31433

RETAINER

- "O" ring (Use 1-D33856 and 1-D33857)

1шт.

18

D33856

RETAINER

- "O" ring, large

1шт.

19

D33857

RETAINER

- "O" ring, small

1шт.

20

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, inner

1шт.

21

A16879

SPACER

- spool centering, rear

1шт.

22

A16882

SPRING

- centering

1шт.

23

A16881

SEAT

SPACER - spool centering, front

1шт.

24

D29840

BARREL - detent

1шт.

25

D32592

SLEEVE ASSY

CAP AND SLEEVE ASSEMBLY, Includes: Ref. 26 - 30

1шт.

NSS

NOT SOLD SEPARAT

CAP - rear

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE - detent

1шт.

26

211-5

BALL,3/16" Dia

- steel (.) 3/16" Dia

6шт.

27

A16852

RETAINER

- ball

1шт.

28

A16853

VALVE SPRING

SPRING - detent

1шт.

29

A16884

CYLINDER END CAP

CAP - front

1шт.

30

178-28

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

SCREW - set, socket head

1шт.

D26896

VALVE - secondary relief, rear port (1800 P.S.I. at 1.6 G.P.M.), Includes: Ref. 31 - 39

1шт.

31

D29853

SEAT

- relief valve

1шт.

32

D37366

KIT

- spring and plunger

1шт.

34

D26899

O-RING,0.145" ID

SEAL - "O" ring, small

1шт.

35

D26897

FOLLOWER - spring

1шт.

36

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal, cap

1шт.

37

D26900

CAP - relief valve

1шт.

38

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, lock (1/4"-28 NF)

1шт.

39

176-395

SCREW - set, headless (1/4" - 28 NF)

1шт.

D31458

VALVE - secondary relief, front port (2500 P.S.I. at 1.6 G.P.M.), Includes: Ref. 40 - 48

1шт.

40

D31986

SEAT

- relief valve

1шт.

41

D37365

KIT

- spring and plunger

1шт.

43

D26899

O-RING,0.145" ID

SEAL - "O" ring, small

1шт.

44

D26897

FOLLOWER - spring

1шт.

36

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal, cap

1шт.

45

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal, cap

1шт.

46

D26900

CAP - relief valve

1шт.

47

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, lock (1/4"-28 NF)

1шт.

48

176-395

SCREW - set, headless (1/4" - 28 NF)

1шт.

49

D26259

SEAT

- poppet

1шт.

50

129-514

CROWN NUT,Low, 5/16" - 24

- acorn, relief valve

1шт.

51

D26270

WASHER, SEALING

WASHER - special

2шт.

52

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam

1шт.

53

82-514

SET SCREW

SCREW - adjusting

1шт.

54

D26268

SPRING

- pilot

1шт.

55

D26267

PLUNGER

- pilot

1шт.

56

D26262

CAP

- relief valve

1шт.

57

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, cap (Outer)

1шт.

58

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup

1шт.

59

L30444

O-RING,0.521" ID x 0.661" OD

SEAL - "O" ring, cap (Inner)

1шт.

60

D26266

SEAT

- relief valve

1шт.

61

D26261

VALVE SPRING

SPRING - relief valve

1шт.

62

A16888

VALVE POPPET

POPPET - relief valve

1шт.

63

A14532

CAP

- check valve

2шт.

64

A14546

O-RING

SEAL - "O" ring, cap

2шт.

65

A14520

VALVE SPRING

SPRING - check valve

2шт.

66

A16886

VALVE POPPET

POPPET - check valve

2шт.

67

86625138

PLUG,7/18" - 14

Pipe, Allen head, Includes Ref. 68 Hex Soc, 7/8"-14 ORB

1шт.

68

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plug

1шт.

69

D20774

X

PLUG - pipe, Allen head, Includes: Ref. 70

1шт.

70

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, plug

1шт.

71

D36929

ADAPTER

PLUG - service, Includes: Ref. 72

1шт.

72

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plug

1шт.

73

221-841

PLUG

- pipe, 1/4" NPT

1шт.

74

D31314

LEVER - control, outside

1шт.

75

D25228

LEVER - control, inside

1шт.

76

O4413TF

X

PIN - handle

2шт.

77

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

78

D25483

LINK

- handle (Plate)

4шт.

79

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Link 5/16" x .940"

4шт.

80

D25783

PLUG - special, power beyond

1шт.

81

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, large

1шт.

82

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL - "O" ring, small

1шт.
