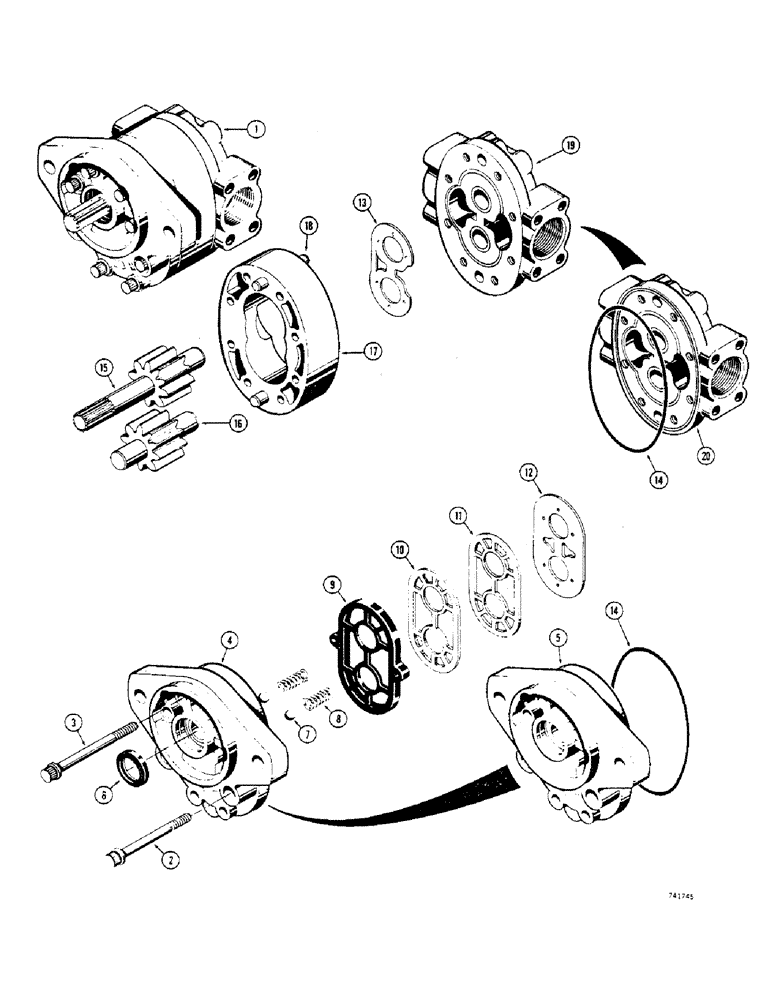

Запчасти Case 32 (035A) - D41390 HYDRAULIC PUMP, SERVICE REPLACEMENT

1

D41390

PUMP

- hydraulic (Cessna no. 24504-LAN), Includes: Ref. 2 - 20

1шт.

1

DR41390

REMAN-HYD PUMP

Remanufactured, Pump, Hydraulic,

1шт.

1

DC41390

CORE-HYDRAULIC PUMP

Return Part Number, Pump, Hydraulic

1шт.

1

87644746R

REMAN-HYD PUMP

32 - BACKHOE & LDR. FOR 530CK TRACTORS, 32S BACKHOE & LDR

1шт.

1

87644746C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 3-1/4")

4шт.

3

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 3-1/2")

4шт.

4

D31395

PLATE ASSY.

COVER - driveshaft end (Without "O" ring groove)

1шт.

5

D48879

COVER

- driveshaft end (With "O" ring groove)

1шт.

D41318

KIT

- pump rebuild (When stock is exhausted, order (1) D59656 kit for service), Includes: Ref. 6 - 14

1шт.

D59656

GASKET KIT

KIT - pump rebuild, Includes: Ref. 6 - 14

1шт.

6

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- driveshaft

1шт.

7

D31404

BALL

- steel (13/32" dia.)

2шт.

8

D31403

SPRING

- ball retaining

2шт.

9

D48888

SEAL

- diaphragm

1шт.

10

H273920

GASKET

- backup

1шт.

11

H260935

GASKET

- protector

1шт.

12

D41321

DIAPHRAGM

- pump

1шт.

13

D41322

PLATE

- thrust

1шт.

14

H756221

O-RING,4.987" ID x 5.193" OD

SEAL - "O" ring, cover seal for D48879 and D48883 cover (Part of D59656 kit only)

2шт.

D41421

GEAR-SET

GEAR SET - drive and driven (When stock is exhausted, order (1) D49380 gear set for service), Includes: Ref. 15 and 16

1шт.

D49380

GEAR

SET - drive and driven (When stock is exhausted order (1) D52929 gear set for service), Includes: Ref. 15 and 16

1шт.

D52929

GEAR

SET - drive and driven, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

DRIVESHAFT AND GEAR - pump

1шт.

16

NSS

NOT SOLD SEPARAT

IDLER SHAFT AND GEAR - pump

1шт.

17

D49371

HOUSING

- gear

1шт.

18

D49373

DOWEL

- pump housing

2шт.

19

D31407

PLATE ASSY.

COVER - port end (Without "O" ring groove)

1шт.

20

D48883

COVER

- port end (With "O" ring groove)

1шт.
