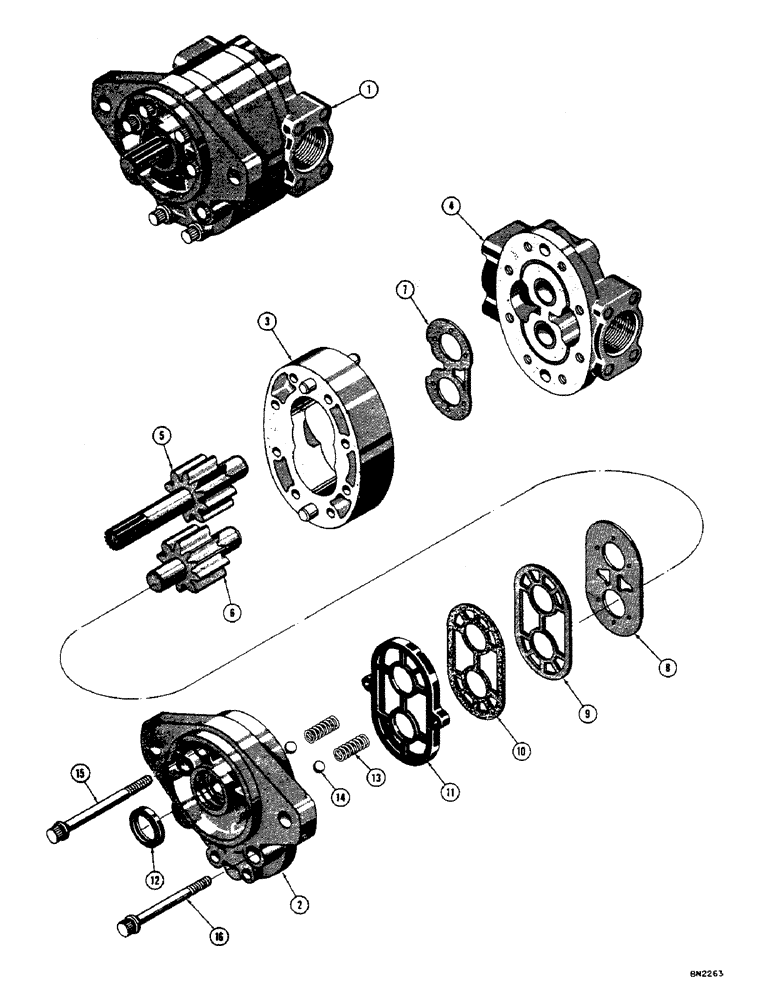

Запчасти Case 32 (034) - D31254 HYDRAULIC PUMP

1

D31254

X

PUMP - hydraulic (Cessna no. 20110-1 DBE "L" series) For pump drive components see Figure 66 (For service order D41390 pump, Figure 35A), Includes: Ref. 2 - 16

1шт.

2

D31395

PLATE ASSY.

PLATE ASSEMBLY - front (For service order D48879 cover and "O" ring, see Figure 35A)

1шт.

3

D31408

SPARE PART

BODY AND DOWEL ASSEMBLY - center (For service order D49371 body and D49373 dowel, see Figure 35A)

1шт.

4

D31407

PLATE ASSY.

PLATE ASSEMBLY - front (For service order D48879 cover and "O" ring, see Figure 35A)

1шт.

D41421

GEAR-SET

GEAR SET - drive and driven (When stock is exhausted order D49380 gear set for service)

1шт.

D49380

GEAR

SET - drive and driven (When stock is exhausted, order D52929 gear set for service)

1шт.

D52929

GEAR

SET - drive and driven

1шт.

5

NSS

NOT SOLD SEPARAT

DRIVESHAFT AND GEAR ASSEMBLY

1шт.

6

NSS

NOT SOLD SEPARAT

IDLER SHAFT AND GEAR ASSEMBLY, Includes: Ref. 7 - 14

1шт.

D31396

KIT

- major seal repair (For service order D41318 kit on Figure 35A)

1шт.

7

D41322

PLATE

- thrust

1шт.

8

D41321

DIAPHRAGM

1шт.

9

NLS

NO LONGER SERVICED

- protector (Nylatron)

1шт.

10

A41244

GASKET

- backup

1шт.

11

D48888

SEAL

- diaphragm

1шт.

12

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- shaft

1шт.

13

D31403

SPRING

- ball retaining

2шт.

14

D31404

BALL

- steel (13/32" dia.)

2шт.

15

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 3-1/2")

4шт.

16

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 3-1/4")

4шт.
