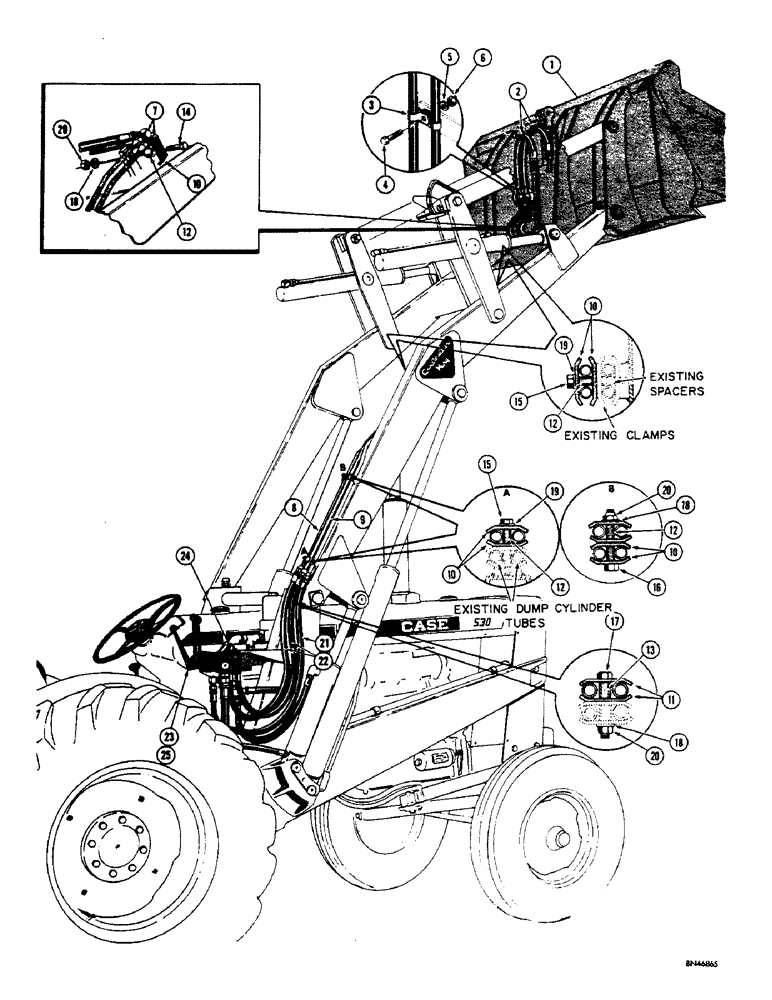

Запчасти Case 32 (032) - MULTI-PURPOSE BUCKET HYDRAULICS

1

D34409

BUCKET - multi-purpose, Drott (Parts list Figure 10)

1шт.

2

D34401

HOSE ASSY.

HOSE - at clam cyl. (3/8" I.D. x 7/8" O.D. x 60" long)

2шт.

3

49855

CLAMP

- D34401 hoses

2шт.

4

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

5

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16")

1шт.

6

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

7

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

8

D34403

TUBE

- valve to bucket, inside

1шт.

9

D34405

TUBE

- valve to bucket, outside

1шт.

10

R17319

CLAMP

- plate, tube

11шт.

11

D33316

CLAMP

- plate, hose

2шт.

12

D33551

BUSHING

SPACER - tube clamp

6шт.

13

D33554

BUSHING

SPACER - hose clamp

1шт.

14

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

15

13-530

BOLT,Hex, 5/16" - 18 x 1-7/8", Gr 5

HHCS - 5/16" - 18 NC x 1-7/8"

3шт.

16

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

17

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

HHCS - 5/16" - 18 NC x 3-1/4"

1шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16")

2шт.

19

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

3шт.

20

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

21

D36734

RING

HOSE - from valve to outside bucket cyl. tube on lift arm (1/2" I.D. x 42" long) Used before loader sn. 4110090

1шт.

22

D34399

HOSE

- from valve to clam cyl. tubes (1/2" I.D. x 38-1/2" long)

2шт.

23

D34410

VALVE - loader control, three spool (Parts list Figure 46) Used before ldr. sn. 4110090

1шт.

24

D34412

BRACKET - D34410 loader valve

1шт.

25

REF

INSTRUCTION

VALVE - loader control, three spool (See Figure 52) Used on loader sn. 4110090 and after

1шт.
