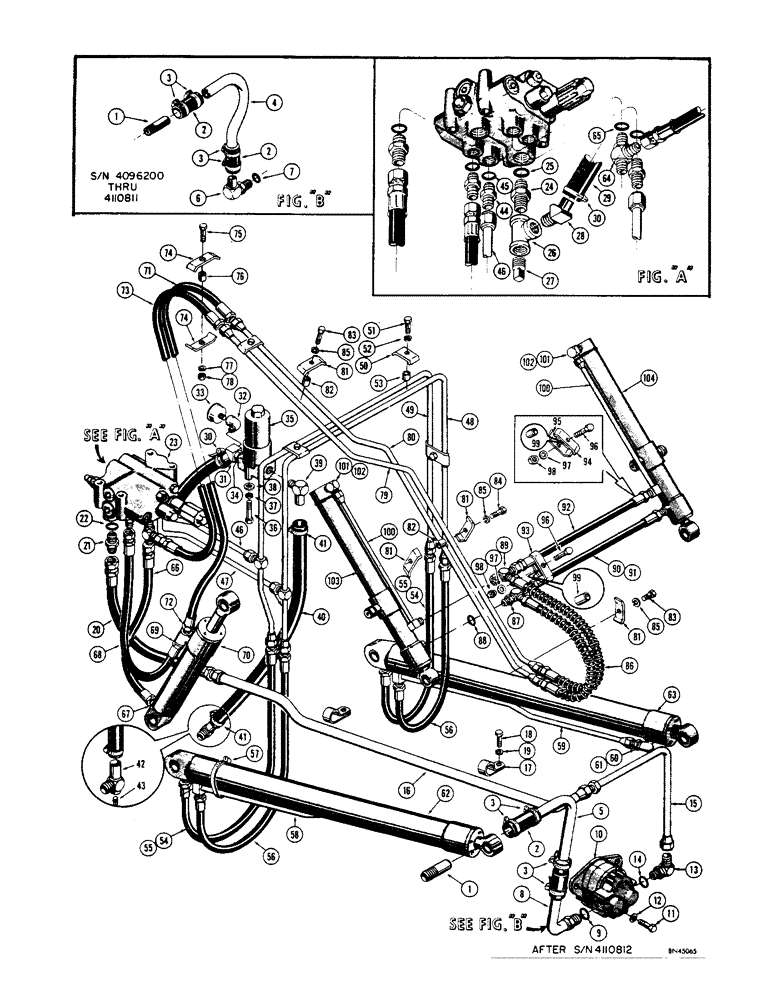

Запчасти Case 32 (026) - LOADER HYDRAULICS, (LOADER S/N 4110090 AND AFTER)

1

D33363

FITTING

CONNECTOR - reservoir, 1" NPT x 1-1/4" O.D. tube

1шт.

2

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- R13911 hose #28, 1.31/2.25 Type F Worm

4шт.

4

D33822

TUBE - suction, (Used on ldr. sn. 4096200 thru 4110811)

1шт.

5

D36752

TUBE - suction, (Used on ldr. sn. 4110812 and after)

1шт.

6

D30511

FITTING

ELBOW - 90 degree adj., 1-1/4" JIC x 1-1/4" O.D. tube (Used on ldr. sn. 4096200 thru 4110811), Includes: Ref. 7

1шт.

7

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, D30511 elbow

1шт.

8

D36747

STEM

CONNECTOR - hose, 1-1/4" JIC x 1-1/4" O.D. tube, Includes: Ref. 9

1шт.

9

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, D36747 connector

1шт.

10

REF

INSTRUCTION

PUMP - hydrualic (See Figures 34 and 35A for proper pump)

1шт.

11

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

12

29-8

LOCK WASHER

WASHER - med. sect. lock (1/2")

2шт.

13

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, 1" JIC, Incl. Ref. 14

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, 218-5110

1шт.

15

D30563

TUBE ASSY.

TUBE - from pump, short

1шт.

16

D33579

TUBE

- from pump, long

1шт.

17

R11405

CLAMP

- D33579 tube

2шт.

18

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

19

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

20

D24646

HOSE ASSY.

HOSE - to valve (3/4" I.D. x 1-1/4" O.D. x 25" long)

1шт.

21

D28890

CONNECTOR, ELEC

CONNECTOR - male (3/4" JIC x 1" JIC), Includes: Ref. 22

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D28890 connector

1шт.

23

REF

INSTRUCTION

VALVE - loader control (See Figure 60)

1шт.

24

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNECTOR - 3/4" JIC x 3/4" NPT, Includes: Ref. 25

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D31393

1шт.

26

221-445

TEE - female, 3/4" NPT

1шт.

27

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - pipe, sq. hd. (3/4" NPT)

1шт.

28

R11626

CONNECTOR, ELEC

CONNECTOR - 45 degree, 3/4" NPT x 1" O.D. tube

1шт.

29

D36798

HOSE

- to filter (1" I.D. x 1-1/2" O.D. x 10-5/8")

1шт.

30

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D36798 hose

2шт.

31

D33588

CONNECTOR - 45 degrees (1" O.D. tube x 3/4" NPT)

1шт.

32

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

33

D29650

ELECTRICAL GAUGE

GAUGE - hyd. oil pressure

1шт.

34

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducing, 1" NPT to 3/4" NPT

1шт.

35

REF

INSTRUCTION

FILTER - hyd. oil, see Figures 70 and 71A for proper filter

1шт.

36

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

37

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

38

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

39

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- 90 degree, 1" NPT x 1" O.D. tube

1шт.

40

D32678

HOSE

- return (1" I.D. x 1-1/2" O.D. x 29" long)

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D32678 hose

2шт.

42

D33590

ELBOW - 90 degree, 3/4" NPT x 1" O.D. tube

1шт.

43

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, sq. hd. (1/2" NPT)

1шт.

44

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - 5/8" JIC x 5/8" valve ports, Includes: Ref. 45

3шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5062 connector

1шт.

46

D36783

TUBE

- from rear port

1шт.

47

D36781

TUBE

- from front port

1шт.

48

D36851

TUBE

- cross-over, front

1шт.

49

D36854

TUBE

- cross-over, rear

1шт.

50

R17319

CLAMP

- cross-over tubes

3шт.

51

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

3шт.

52

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

3шт.

53

D33552

BUSHING

SPACER - clamp

3шт.

54

D30533

HOSE

- to rear cyl. ports (1/2" I.D. x 1" O.D. x 26" long, Includes: Ref. 55

2шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D30533 hose

1шт.

56

D30541

HOSE

- to front cyl. ports (1/2" I.D. x 1" O.D. x 27-1/2" long)

2шт.

57

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - tube

2шт.

58

D31460

TUBE

- R.H. lift cyl.

1шт.

59

D31459

TUBE

- L.H. lift cyl.

1шт.

60

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - 5/8" JIC x 5/8" JIC, Includes: Ref. 61

2шт.

61

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5062 connector

1шт.

62

D31463

LIFT CYLINDER

CYLINDER - lift, R.H. (Parts list Figure 66 and 66[1])

1шт.

63

D31464

CYLINDER

- lift, L.H. (Parts list Figure 66[1])

1шт.

64

D25137

TEE

- adj. (5/8" JIC) Front port, Includes: Ref. 65

1шт.

65

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25137 tee

1шт.

66

D37184

HOSE

- to lower hydra-leveling cyl. port (1/2" I.D. x 1" O.D. x 24-1/2" long), Includes: Ref. 67

1шт.

67

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D37184 hose

1шт.

68

D37185

HOSE ASSY.

HOSE - to upper hydra-leveling cyl. (1/2" I.D. x 1" O.D. x 16-1/2" long), Includes: Ref. 69

1шт.

69

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D37185 hose

1шт.

70

D36882

CYLINDER

- hydra-leveling (Parts list Figure 70)

1шт.

71

D44436

HOSE

- hydra-leveling cyl,. to inside tube (1/2" I.D. x. 1" O.D. x 20-1/2" long), Includes: Ref. 72

1шт.

72

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D36785 hose

1шт.

73

D30543

HOSE,12.7mm ID x 736.6mm L, SAE 100R2

- valve to outside tube (1/2" I.D. x 1" O.D. x 29" long)

1шт.

74

D33316

CLAMP

- plate

2шт.

75

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

76

D33554

BUSHING

SPACER - clamp

1шт.

77

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16")

1шт.

78

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

79

D31361

TUBE

- on lift arm, outside

1шт.

80

D31359

TUBE

- on lift arm, inside

1шт.

81

R17319

CLAMP

- plastic coated

5шт.

82

D33551

BUSHING

SPACER - tube clamp

4шт.

83

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

84

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

85

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

4шт.

86

D31370

HOSE

- to R.H. cylinder (1/2" I.D. x 1" O.D. x 30-7/16" long)

2шт.

87

D25137

TEE

- adj., front port (5/8" JIC), Includes: Ref. 88

1шт.

88

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25137 tee

1шт.

89

D31365

3 WAY CONNECTION

TEE - adj. (5/8" JIC x 1/2" JIC)

1шт.

90

D31368

HOSE

- cross-over, front (1/2" I.D. x 1" O.D. x 29-3/4" long), Includes: Ref. 91

1шт.

91

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D31368 hose

1шт.

92

D31366

HOSE ASSY.

HOSE - crossover, rear (1/2" I.D. x 1" O.D. x 30" long)

1шт.

93

D33316

CLAMP

- plate, plastic coated (R.H. side)

2шт.

94

D32039

CLAMP

- plate, L.H. side (Upper)

1шт.

95

D32040

CLAMP

- plate, L.H. side (Lower)

1шт.

96

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

97

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16")

2шт.

98

131-4

LOCK NUT,5/16"-18, GB

NUT - hex. lock (5/16" - 18 NC)

2шт.

99

D33554

BUSHING

SPACER - clamp plates

2шт.

100

D31372

TUBE

- bucket cylinder

2шт.

101

D25667

ELBOW

- 90 degree male, rear ports (1/2" JIC x 5/8" JIC), Includes: Ref. 102

2шт.

102

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25667 elbow

1шт.

103

D31100

HYDRAULIC CYLINDER

CYLINDER - dump, R.H. (Parts list Figure 68)

1шт.

104

D31101

CYLINDER ASSY.

CYLINDER - dump, L.H. (Parts list Figure 68)

1шт.
