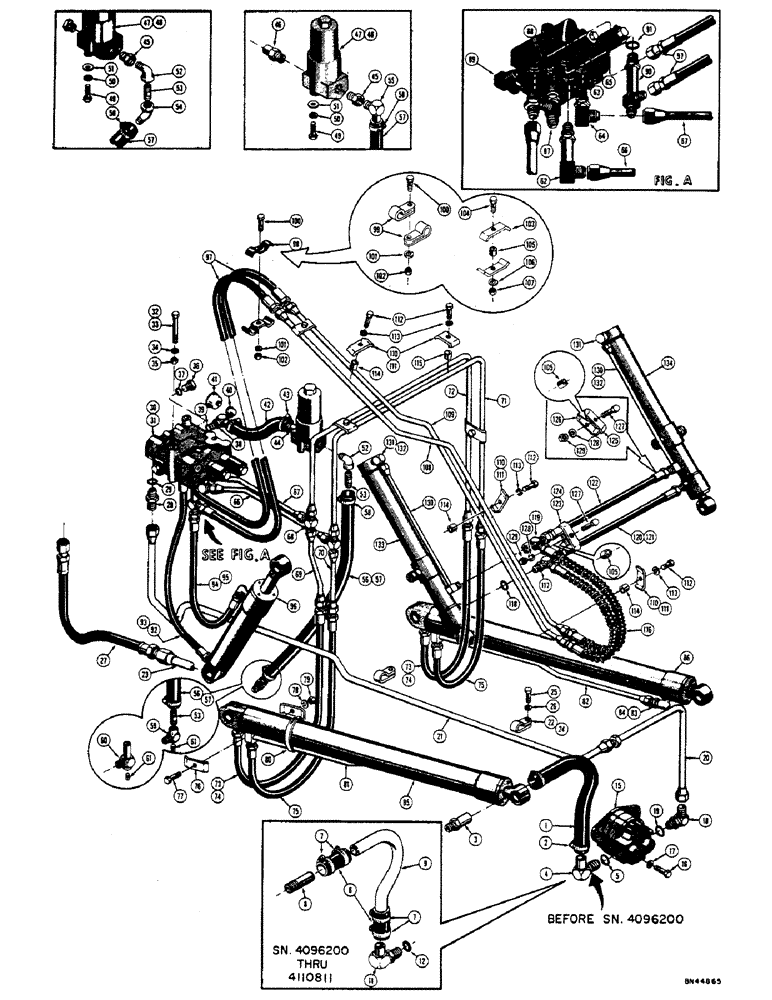

Запчасти Case 32 (018) - LOADER HYDRAULICS, (BEFORE LOADER S/N 4110090)

1

D30523

HOSE - suction (1" I.D. x 1-1/2" O.D. x 18" long) (Used before ldr. sn. 4096200)

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D30523 hose

1шт.

3

R14353

CONNECTOR, ELEC

CONNECTOR - reservoir, 3/4" NPT x 1" O.D. tube (Used before ldr. sn. 4096200)

1шт.

4

D31349

ELBOW

- 90 degree adj., 1-1/4" JIC x 1" O.D. tube (Used before ldr. sn. 4096200), Includes: Ref. 5

1шт.

5

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring , D31349 elbow

1шт.

6

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction (Used on ldr. sn. 4096200 and after) 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- R13911 hose #28, 1.31/2.25 Type F Worm

4шт.

8

D33363

FITTING

CONNECTOR - reservoir, 1" NPT x 1-1/4" O.D. tube (Used on ldr. sn. 4096200 and after)

1шт.

9

D33822

TUBE - suction, (Used on ldr. sn. 4096200 thru 4110811)

1шт.

11

D30511

FITTING

ELBOW - 90 degree adj., 1-1/4" JIC x 1-1/4" O.D. tube (Used on ldr. sn. 4096200 thru 4110811), Includes: Ref. 12

1шт.

12

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, D30511 elbow

1шт.

15

REF

INSTRUCTION

PUMP - hydraulic (See Figures 34 and 35A for proper valve)

1шт.

16

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

17

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

18

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, 1" JIC, Incl. Ref. 19

1шт.

19

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

20

D30563

TUBE ASSY.

TUBE - from pump, short

1шт.

21

D30513

TUBE ASSY.

TUBE - to valve, long (Early production) When stock is exhausted, use D33579 tube and D24646 hose

1шт.

22

D31513

CLAMP - D30513 tube (Use R11405)

2шт.

23

D33579

TUBE

- to valve, long (Late production) Used with D24646 hose

1шт.

24

R11405

CLAMP

- D30513 or D33579 tubes

2шт.

25

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

26

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

27

D24646

HOSE ASSY.

HOSE - D33579 tube to valve (3/4" I.D. x 1-1/4" O.D. x 25" long)

1шт.

28

D28890

CONNECTOR, ELEC

CONNECTOR - male (3/4" JIC x 1" JIC), Includes: Ref. 29

1шт.

29

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D28890 connector

1шт.

30

D31264

VALVE - loader control, early production (Parts list Figure 36) When stock is exhausted, use D32769

1шт.

31

D32769

CONTROL VALVE

VALVE - loader control (Parts list Figure 40)

1шт.

32

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(Inside) Hex, 3/8"-16 x 4", G5

2шт.

33

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3/4" (Outside)

1шт.

34

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

35

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

36

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Pipe, 3/4" JIC, Includes: Ref. 37 - 39 Hex Hd, 1 1/16"-12 ORB

3шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, 218-5158 plug

1шт.

38

D31363

ELBOW - 90 degree adj., 3/4" JIC x 1/8" NPT x 1" O.D. tube

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D31363 elbow

1шт.

40

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

41

D29650

ELECTRICAL GAUGE

GAUGE - hyd. oil pressure

1шт.

42

D30524

HOSE - to filter (1" I.D. x 1-1/2" O.D. x 9" long)

1шт.

43

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D30524 hose

2шт.

44

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - 3/4" NPT x 1-3/8" long (If used)

1шт.

45

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducing, 1" NPT to 3/4" NPT (Used with D32254 filter) If required

2шт.

46

217-156

FITTING,1" Hose Barb x 1" Male NPTF

CONNECTOR - filter inlet, str. (1" NPT x 1" O.D. tube) If used

1шт.

48

REF

INSTRUCTION

FILTER - hyd. oil (See Figures 70 and 71A for proper filter)

1шт.

49

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

50

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

51

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

52

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, If used 90º, 3/4"-14, NPT

1шт.

53

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - 3/4" NPT - 2" long (If used)

1шт.

54

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- street, 45 degrees (3/4" NPT) If used

1шт.

55

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- filter outlet, 90 degrees (1" NPT x 1" O.D. tube) If used

1шт.

56

D30525

HOSE

- return (1" I.D. x 1-1/2" O.D. x 28-1/2" long) Used with 221-215 nipples

1шт.

57

D32678

HOSE

- return (1" I.D. x 1-1/2" O.D. x 29" long) Used with 217-136 and D33590 elbows

1шт.

58

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - return hose

2шт.

59

D28486

ELBOW - 90 degree street (3/4" NPT) If used

1шт.

60

D33590

ELBOW - 90 degrees, 3/4" NPT x 1" O.D. tube (If used)

1шт.

61

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" NPT

1шт.

62

D23143

FITTING

ELBOW - male, 90 degrees (Long) Rear valve port to lift cyl. tube (5/8" JIC x 5/8" JIC), Includes: Ref. 63

1шт.

63

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D23143 elbow

1шт.

64

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (Short) Front valve port to lift cyl. tube (5/8" JIC x 5/8" JIC), Incl. Ref. 65

1шт.

65

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5007 elbow

1шт.

66

D31357

TUBE - from rear port

1шт.

67

D31350

TUBE - from front port

1шт.

68

218-595

TEE,7/8"-14, 37 Degree

- male (5/8" JIC)

2шт.

69

NLS

NO LONGER SERVICED

- to R.H. lift cyl. (Long)

1шт.

70

D31356

TUBE

- to R.H. lift cyl. (Short)

1шт.

71

D30531

TUBE ASSY.

TUBE - cross-over (Front)

1шт.

72

D30565

TUBE

- cross-over (Rear)

1шт.

73

D30533

HOSE

- to rear cylinder ports (1/2" I.D. x 1" O.D. x 26" long), Includes: Ref. 74

2шт.

74

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D30533 hose

1шт.

75

D30541

HOSE

- to front cyl. ports (1/2" I.D. x 1" O.D. x 27-1/2" long)

2шт.

76

70724

CLAMP - plate (If used)

4шт.

77

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(If used) Hex, 5/16"-18 x 2", G5

2шт.

78

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, , if used 5/16"

2шт.

79

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC) If used

2шт.

80

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - tube (If used)

2шт.

81

D31460

TUBE

- R.H. lift cyl.

1шт.

82

D31459

TUBE

- L.H. lift cyl.

1шт.

83

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - 5/8" JIC x 5/8" JIC, Includes: Ref. 84

2шт.

84

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5062 connector

1шт.

85

D31463

LIFT CYLINDER

CYLINDER - lift, R.H. (Parts list Figure 66 and 66[1])

1шт.

86

D31464

CYLINDER

- lift, L.H. (Parts list Figure 66[1])

1шт.

87

D25137

TEE

- adj. (5/8" JIC) Rear valve port to bucket cyl. hose, Includes: Ref. 88

1шт.

88

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25137 tee

1шт.

89

50003

ELBOW

- 90 degree swivel, 5/8" JIC

1шт.

90

D26168

TEE - adj. (5/8" JIC) Front vlave port to bucket cyl. hose

1шт.

91

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D26168 tee

1шт.

92

D30537

HOSE

- to rear port hydra-leveling cyl. (1/2" I.D. x 1" O.D. x 19-3/8" long), Includes: Ref. 93

1шт.

93

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D30537 hose

1шт.

94

D30539

HOSE ASSY.

HOSE - to front port hydra-leveling cyl. (1/2" I.D. x l" O.D. x 23-1/8" long), Includes: Ref. 95

1шт.

95

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D30539 hose

1шт.

96

D31225

CYLINDER - hydra-leveling (Parts list Figure 70)

1шт.

97

D30543

HOSE,12.7mm ID x 736.6mm L, SAE 100R2

- to bucket cyl. tubes (3/8" I.D. x 1" O.D. x 29" long)

2шт.

98

R15257

CLAMP

- plate, plastic coated (If used) See refs 102-106

2шт.

99

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose, plastic coated (If used) See refs 102-106

2шт.

100

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

101

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

1шт.

102

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

103

D33316

CLAMP

- plate, plastic coated

2шт.

104

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

105

D33554

BUSHING

SPACER - clamp plates

3шт.

106

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (3/8" I.D. x 7/8" O.D. x 5/64" thick)

1шт.

107

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

108

D31361

TUBE

- on lift arm, outside

1шт.

109

D31359

TUBE

- on lift arm, inside

1шт.

110

38331

PLATE

CLAMP - tube, metal (Use R17319)

7шт.

111

R17319

CLAMP

- tube, plastic coated

7шт.

112

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

7шт.

113

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

7шт.

114

D33551

BUSHING

SPACER - R17319 clamp (Bucket cyl. tubes only)

4шт.

115

D33552

BUSHING

SPACER - R17349 clamp (Cross-over tubes only)

3шт.

116

D31370

HOSE

- to R.H. cylinder (1/2" I.D. x 1" O.D. x 30-7/16" long)

2шт.

117

D25137

TEE

- adj., front port (5/8" JIC), Includes: Ref. 118

1шт.

118

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25137 tee

1шт.

119

D31365

3 WAY CONNECTION

TEE - adj. (5/8" JIC x 1/2" JIC)

1шт.

120

D31368

HOSE

- cross-over, front (1/2" I.D. x 1" O.D. x 29-3/4" long), Includes: Ref. 121

1шт.

121

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D31368

1шт.

122

D31366

HOSE ASSY.

HOSE - cross-over, rear (1/2" I.D. x 1" O.D. x 30" long)

1шт.

123

31665

COLLAR CLAMP

CLAMP - plate, metal (Use D33316)

2шт.

124

D33316

CLAMP

- plate, plastic coated (R.H. side)

2шт.

125

D32039

CLAMP

- plate, L.H. side (Upper)

1шт.

126

D32040

CLAMP

- plate, L.H. side (Lower)

1шт.

127

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

128

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

129

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

130

D31372

TUBE

- bucket cyl.

2шт.

131

D25667

ELBOW

- 90 degree male, rear ports (1/2" JIC x 5/8" JIC)

2шт.

132

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25667 elbow

1шт.

133

D31100

HYDRAULIC CYLINDER

CYLINDER - dump, R.H. (Parts list Figure 68)

1шт.

134

D31101

CYLINDER ASSY.

CYLINDER - dump, L.H. (Parts list Figure 68)

1шт.
