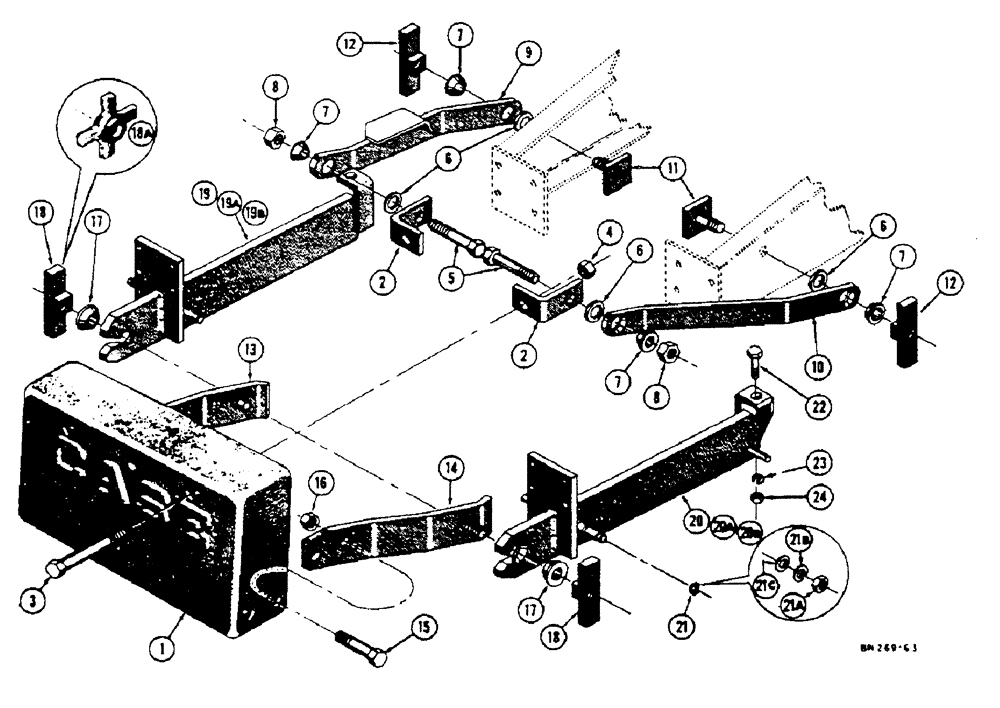

Запчасти Case 32 (016[1]) - 1400 LB. COUNTERWEIGHT (QUICK DETACHABLE)

1

D31204

BALANCER

COUNTERWEIGHT - 1400 lb.

1шт.

2

D31530

BRACKET

BRACKET - attaching, top

2шт.

3

13-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

2шт.

4

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

2шт.

5

D30716

BOLT

SPARE PART BOLT - bracket (1-1/4" - 7 NC x 4-1/2")

2шт.

6

D24516

WASHER

WASHER - special (1-1/4" I.D. x 2-1/2" O.D. x 1/4" thick)

4шт.

7

D30717

WASHER

WASHER - cone, 15 degrees

4шт.

8

25-1620

NUT,1 1/4"-7, G5, Hvy

NUT - hex., 1-1/4" - 7 NC

2шт.

9

D31726

SPARE PART BRACE - stabilizer, L.H.

1шт.

10

D31725

SPARE PART BRACE - stabilizer, R.H.

1шт.

11

D32520

STUD

STUD ASSEMBLY - in ldr. frame

2шт.

12

D31496

SPECIAL NUT

NUT - wrench and hammer

2шт.

13

D31529

SUPPORT

ARM - support, L.H.

1шт.

14

D31528

SUPPORT

ARM - support, L.H.

1шт.

15

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

16

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

4шт.

17

D30714

WASHER

WASHER - cone, 45" (If used)

2шт.

18

D31495

BLOCK

NUT - wrench and hammer (If used)

2шт.

18a

D34027

NUT

NUT - star knock off (If used)

2шт.

19

D31722

X

SUPPORT - L.H., used with wrench and hammer nut (When stock is exhausted, use 1-D35944 and 1-D34027)

1шт.

19a

D35944

SPARE PART SUPPORT - L.H. used with star nut and stabilizer bar on draft arms

1шт.

19b

D37082

SPARE PART SUPPPORT - L.H., used with star nut and stabilizer chain on draft arms

1шт.

20

D31721

X

SUPPORT - R.H., used with wrench and hammer nut (When stock is exhausted, use 1-D35943 and 1-D34027)

1шт.

20a

D35943

SPARE PART SUPPORT - R.H., used with star nut and stabilizer bar on draft arms

1шт.

20b

D37081

SPARE PART SUPPORT - R.H., used with star nut and stabilizer chain on draft arms

1шт.

21

B18206

SNAP RING,#87, Ext

Ring, Snap, , support studs #87, Ext

4шт.

21a

25-1010

NUT,5/8"-11, G5

If used

2шт.

21b

92-10

LOCK WASHER,5/8"

If used

2шт.

21c

95-10

WASHER,5/8"

WASHER - standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) If used

2шт.

22

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

23

192-167

LOCK WASHER,3/4"

2шт.

24

25-1012

NUT,3/4"-10, G5

2шт.
