Запчасти Case 310C (46) - 36070 HYDRAULIC BOOM CYLINDER (3-1/2" DIA.)

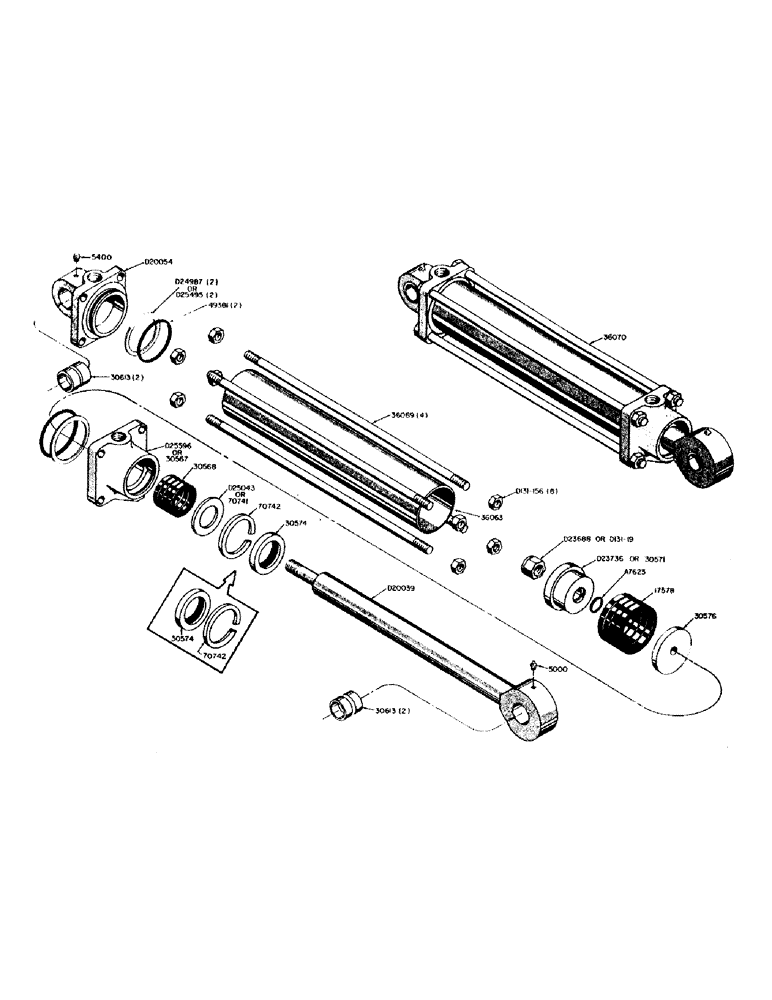

Схема запчастей Case 310C - (46) - 36070 HYDRAULIC BOOM CYLINDER (3-1/2" DIA.)

Артикул

Название

Примечание

Количество

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring (Used with D23736 piston only)

1шт.

17578

PACKING

- piston

1шт.

30567

FLANGE

CAP - end, cylinder (Has no. 30567 on casting) (Use D25596 and D25043)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24987 backup ring, as replacement end or cap will have .210" wide O-ring groove.

1шт.

30568

PACKING

- piston rod

1шт.

30571

PISTON - cylinder (No "O" ring) (Use D23736, A7623, and D23688)

1шт.

1" - 14 NF hex. lock nut (D131-19)

1шт.

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

NLS

NO LONGER SERVICED

WASHER - packing, piston

1шт.

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end and piston rod yoke

4шт.

36063

LUBE NIPPLE

TUBE - cylinder

1шт.

36069

TOY

ROD - tie

4шт.

1/2" - 20 NF hex. lock nut (D131-156)

8шт.

36070

TOY

CYLINDER - boom, hydraulic (3-1/2" O.D.) (Complete)

1шт.

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring, cylinder tube

2шт.

70741

X

WASHER - packing, piston rod (Used with 30567 cylinder end cap only) See D25043

1шт.

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

D20039

ROD - piston (Includes 2-30613 bushings)

1шт.

1/8" NPT straight grease fitting (Lincoln #5000)

1шт.

D20054

END - cylinder (Includes 2-30613 bushings)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24987 backup ring, as replacement end or cap will have .210" wide O-ring groove.

1шт.

1/8" NPT, 90 degrees grease fitting (Lincoln #5400)

1шт.

D23688

X

NUT - lock, D23736 piston only (1" - 14 NF)

1шт.

D23736

PISTON - cylinder (With "O" ring) (When replacing 30571 piston without "O" ring and 1-D23688 lock nut)

1шт.

D24987

RING

- leather backup (Used only with cylinder end or cap which has .210" wide "O" ring groove) See D25495

2шт.

D25043

WASHER

- packing, piston rod (Used with D25596 cylinder end cap only) See 70741

1шт.

D25495

RING

- plastic backup (Used only with cylinder end or cap which has .185" wide "O" ring groove)

2шт.

D25596

CAP - end, cylinder (Has no. D25596 on casting) See 30567

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24987 backup ring, as replacement end or cap will have .210" wide O-ring groove.

1шт.

Выбрано товаров: 29
