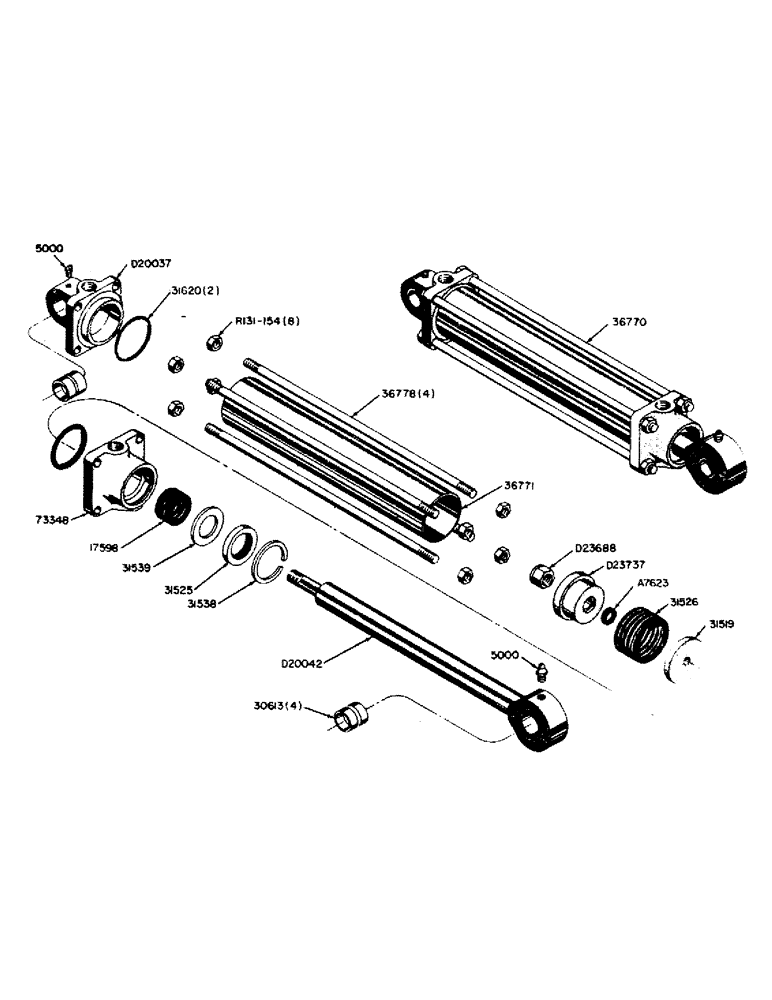

Запчасти Case 310B (56) - 36770 HYDRAULIC CROWD CYLINDER

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring (Use with D23737 piston only)

1шт.

17598

PACKING

- piston rod

1шт.

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end and piston rod

4шт.

31519

LOCKING PLATE

WASHER - piston packing

1шт.

31520

PISTON - cylinder (Use D23737)

1шт.

31525

WIPER SEAL

- piston rod wiper

1шт.

31526

PACKING

- piston

1шт.

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , seal, piston rod 2.75", Int, #275

1шт.

31539

WASHER

- piston rod packing (See D25044) (1/8" thick)

1шт.

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring, cylinder ends to tube

2шт.

36770

CYLINDER - hydraulic (Complete)

1шт.

36771

TUBE - cylinder

1шт.

36778

FORK

ROD - tie

4шт.

5/8" - 18NF locknut (R131-154)

8шт.

73348

CAP - cylinder end

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24988 backup ring, as replacement end has .210" wide O-ring groove.

1шт.

D20037

END - cylinder (Includes 2 - 30613 bushings)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24988 backup ring, as replacement end has .210" wide O-ring groove.

1шт.

1/8" NPT straight grease fitting (Lincoln no. 5000)

1шт.

D20042

PISTON ROD - (Includes 2 - 30613 bushings)

1шт.

1/8" NPT straight grease fitting (Lincoln no. 5000)

1шт.

D23688

X

LOCKNUT - piston rod

1шт.

D23737

PISTON - cylinder (When replacing 31520 piston rod order A7623 "O" ring)

1шт.

D24988

RING

- leather backup (Used only with cylinder end or cap with .210" wide "O" ring groove)

2шт.

D25044

WASHER

- piston rod packing (1/4" thick) (See 31539)

1шт.

D25496

BACK-UP RING

RING - plasic backup (Field installed - used only with cylinder end or cap with .185" wide "O" ring groove) (Not shown)

2шт.
