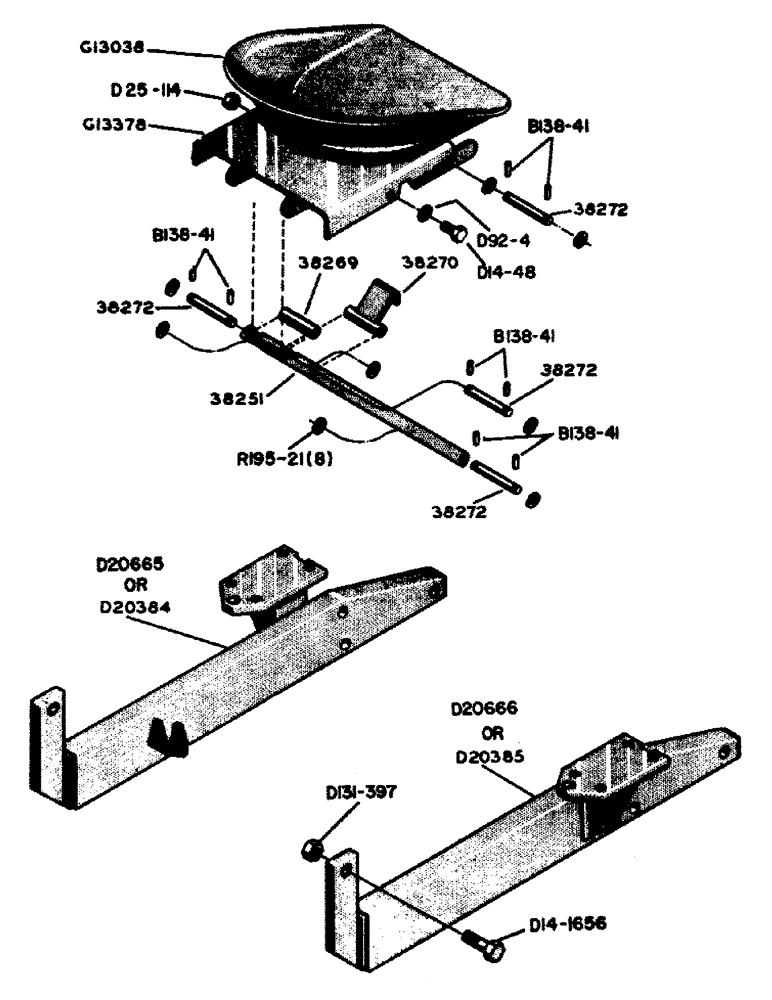

Запчасти Case 310B (04) - TRACTOR MODIFICATION PARTS

G13038

SEAT - includes guide and lock assembly

1шт.

G13378

CHANNEL - seat mounting

1шт.

1/4" - 28 x 1/2" NF hex. hd. cap screw (D14-48)

1шт.

1/4" lockwasher (D92-4)

1шт.

1/4" - 28NF regular hex. nut (D25-114)

1шт.

38251

BRACE - seat

1шт.

38269

SPACER - seat brace

1шт.

38270

KNIFE

LOCK - seat

1шт.

38272

ROD - seat brace

4шт.

11/32" I.D. x 11/16" O.D. plain washer (R195-21)

8шт.

3/32" x 3/4" roll pin (B138-41)

8шт.

D20384

ARM - support, L.H. (Before backhoe serial number 4010319)

1шт.

1" - 14 x 3-1/2" NF hex. hd. cap screw (D14-1656)

1шт.

1" - 14NF locknut (D131-397)

1шт.

D20385

ARM - support, R.H. (Before backhoe serial number 4010319)

1шт.

1" - 14 x 3-1/2" NF hex. hd. cap screw (D14-1656)

1шт.

1" - 14NF locknut (D131-397)

1шт.

D20665

ARM - support, L.H. (Backhoe serial number 4010319 and after)

1шт.

1" - 14 x 3-1/2" NF hex. hd. cap screw (D14-1656)

1шт.

1" - 14NF locknut (D131-397)

1шт.

D20666

ARM - support, R.H. (Backhoe serial number 4010319 and after)

1шт.

1" - 14 x 3-1/2" NF hex. hd. cap screw (D14-1656)

1шт.

1" - 14 NF locknut (D131-397)

1шт.
