Запчасти Case 310B (52) - D23252 AND D23253 HYDRAULIC SWING CYLINDERS

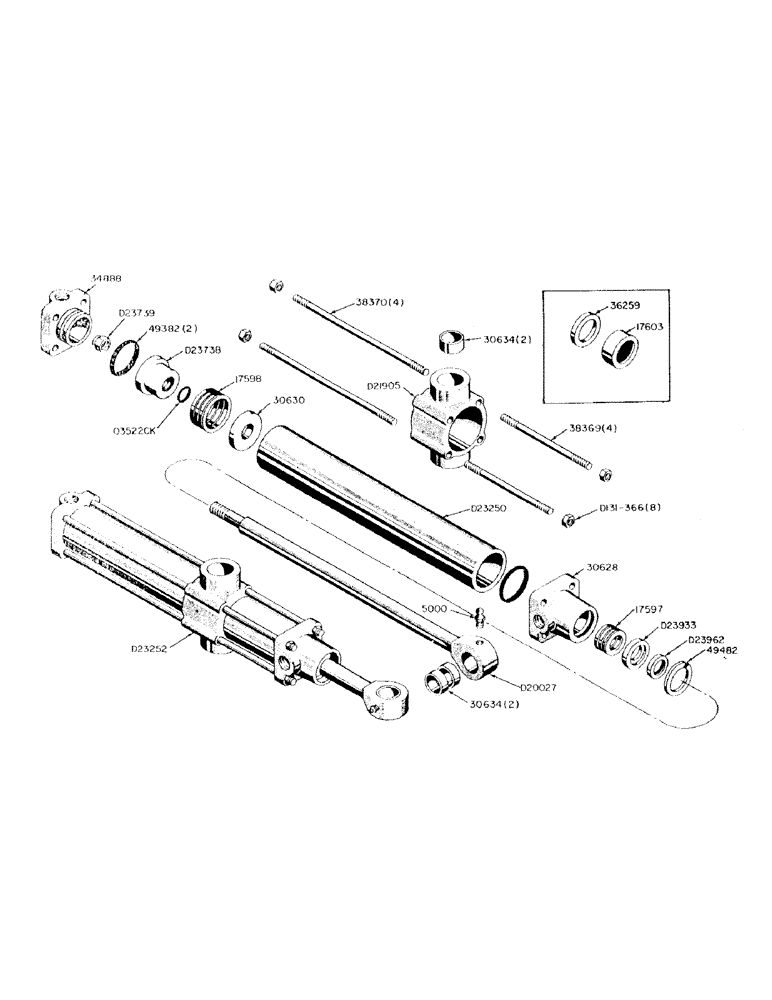

Схема запчастей Case 310B - (52) - D23252 AND D23253 HYDRAULIC SWING CYLINDERS

Артикул

Название

Примечание

Количество

03522CK

SEAL - O-ring piston rod

1шт.

17597

PACKING

- piston rod

1шт.

17598

PACKING

- piston

1шт.

17603

WIPER SEAL

- piston rod wiper (Use D23962)

1шт.

30628

CAP - cylinder end

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end has .210" wide O-ring groove.

1шт.

30630

CARTRIDGE

WASHER - piston packing

1шт.

30631

X

PISTON - cylinder (Does not use O-ring) (Use D23738)

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod and trunnion

4шт.

34888

END

- cylinder

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end has .210" wide O-ring groove.

1шт.

36259

WASHER

- piston rod packing (Use D23933)

1шт.

38369

ROD - tie, short

4шт.

3/8" - 24NF locknut (D131-366)

4шт.

38370

ROD - tie, long

4шт.

3/8" - 24NF locknut (D131-366)

4шт.

38372

TUBE - cylinder (3" O.D.) (See D23250)

1шт.

Measure the outside diameter of the cylinder tube. D23252 and D23253 cylinders have 2.875" OD tube; whereas 38374 and 38375 cylinders have 3" OD tube.

1шт.

38374

WASHER

CYLINDER - hydraulic, L.H. (Complete) (Use D23252)

1шт.

38375

CYLINDER - hydraulic, R.H. (Complete) (Use D23253)

1шт.

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring, cylinder ends to tube

2шт.

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

D20027

ROD - (Includes 2 - 30634 bushings)

1шт.

1/8" NPT straight grease fitting (Lincoln no. 5000)

1шт.

3/4" - 16NF locknut (D131-152 with 30631 piston)

1шт.

3/4" - 16NF locknut (D23739 with D23738 piston)

1шт.

D20528

TRUNNION - hydraulic cylinder (Includes 2 - 30634 bushings) (3" O.D. cylinder tube only)

1шт.

D21905

TRUNNION - hydraulic cylinder (Includes 2 - 30634 bushings) (2.875" O.D. cylinder tube only)

1шт.

D23250

TUBE - cylinder (2.875" O.D.) (See 38372)

1шт.

Measure the outside diameter of the cylinder tube. D23252 and D23253 cylinders have 2.875" OD tube; whereas 38374 and 38375 cylinders have 3" OD tube.

1шт.

D23252

CYLINDER - hydraulic, L.H. (Complete)

1шт.

D23253

CYLINDER - hydraulic, R.H. (Complete)

1шт.

D23738

BLOCK

PISTON - cylinder (When replacing 30631 piston order 03522CK O-ring)

1шт.

D23933

GLAND

- wiper seal

1шт.

D23962

SEAL

- wiper, piston rod

1шт.

D24985

RING

- leather backup (Used only with cylinder end or cap which have .210" wide O-ring groove)

2шт.

Выбрано товаров: 36
