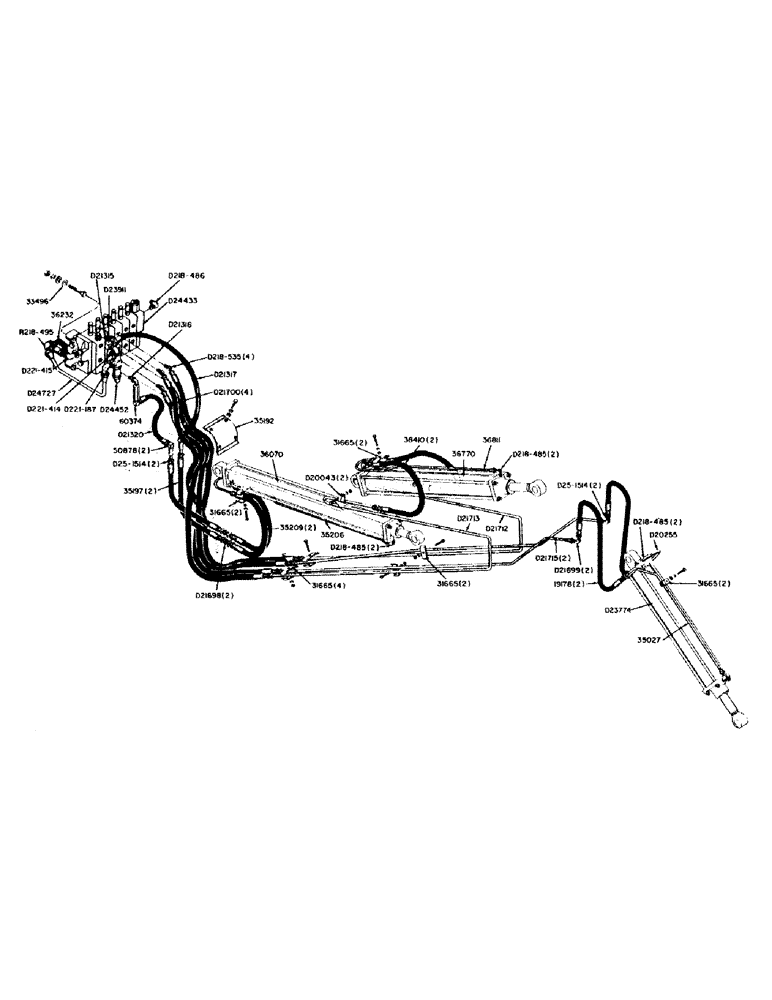

Запчасти Case 310B (30) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS, (WITH HIGH PRESSURE CARRY-OVER)
№
Артикул
Название
Примечание
Количество
33496
BRAKE LINING
valve mounting
1шт.
1/2" - 20NF x 2-1/2" hex. hd. cap screw (D14-840)
3шт.
1/2" plain washer (D195-33)
3шт.
1/2" lockwasher (D92-8)
3шт.
1/2" - 20NF hex. nut (D25-118)
3шт.
35192
BRACKET - hose mounting
1шт.
3/8" - 24NF x 1-3/4" hex. hd. cap screw (D14-628)
4шт.
3/8" lockwasher (D92-6)
4шт.
3/8" - 24NF hex. (D25-116)
4шт.
36232
HOSE ASSY.
valve to pump pressure line (3/4" I.D. x 1-5/32" O.D. x 32")
1шт.
3/4" NPT street elbow, valve to pump pressure line hose (D221-415)
1шт.
D24433
VALVE
hydraulic, complete (See Figure 48 for breakdown)
1шт.
3/4" J.I.C. x 3/4" NPT, 90 degree male elbow (D218-486)
1шт.
D24727
TUBE - relief valve to return line
1шт.
1/2" NPT, 90 degree street elbow (D221-414)
1шт.
5/8" J.I.C. x 1/2" NPT, 90 degree male elbow, relief valve (D218-485)
1шт.
31665
COLLAR CLAMP
hose, boom cyl hyd system
2шт.
5/16" - 24NF x 1-3/4" hex. hd. cap screw (D14-528), boom cyl hyd system
1шт.
5/16" lockwasher (D92-5), boom cyl hyd system
1шт.
5/16" - 24NF hex. nut (D25-115), boom cyl hyd system
1шт.
35197
SHEAVE
bulkhead elbow to tower (Boom cylinder hoses) (1/2" I.D. x 7/8" O.D. x 22"), boom cyl hyd system
2шт.
35206
rear port, boom cyl hyd system
1шт.
5/8" J.I.C. x 1/2" NPT, 90 degree male elbow, ports (D218-485), boom cyl hyd system
2шт.
35209
HOSE ASSY.
tower to (5/8" I.D. x 1" O.D. x 32"), boom cyl hyd system
2шт.
36070
TOY
complete (See Figure 55 for breakdown), boom cyl hyd system
1шт.
50878
ROLLER
ELBOW - 90 degree special, tubes to hoses, boom cyl hyd system
2шт.
(7/8" - 14 NF hex. jam nut (D25-1514)), boom cyl hyd system
2шт.
60374
VALVE
flow control (See Figure 41 for breakdown), boom cyl hyd system
1шт.
D21315
NIPPLE - pipe (1/2" NPT x 3-1/2" extra strong) backhoe valve to tee, boom cyl hyd system
1шт.
D21316
NIPPLE - pipe (1/2" NPT x 2" extra strong) backhoe valve to flow control valve, boom cyl hyd system
1шт.
D21317
pipe tee to R.H. male elbow (1/2" I.D. x 7/8" O.D. x 22-1/2"), boom cyl system
1шт.
D21320
HOSE - flow control valve to L.H. male elbow (1/2" I.D. x 7/8" O.D. x 15"), boom cyl hyd system
1шт.
D21698
UNION
bulkhead tower, boom cylinder hoses, hyd system
2шт.
D23911
FITTING
TEE - female (1/2" NPT) boom down pressure line, cyl hyd system
1шт.
D24452
VALVE
relief (See Figure 43 for breakdown), boom cyl hyd system
1шт.
1/2" NPT x 1-1/2" pipe nipple (D221-187), boom cyl hyd system
1шт.
31665
COLLAR CLAMP
crowd and bucket cylinder tubes, hyd system
8шт.
5/16" - 24NF x 1-3/4" hex. hd. cap screw (D14-528), crowd cyl hyd system
5шт.
5/16" lockwasher (D92-5), crowd cyl hyd system
5шт.
5/16" - 24NF hex. nut (D25-115), crowd cyl hyd system
5шт.
NLS
NO LONGER SERVICED
valve to crowd cylinder (Use D21700), hyd system
2шт.
NLS
NO LONGER SERVICED
R.H., valve to crowd cylinder (Use D21712),hyd system
1шт.
36760
PIN
L.H., valve to crowd cylinder (Use D21713), hyd system
1шт.
36770
complete (See Figure 56 for breakdown), crowd cyl hyd system
1шт.
36811
ELECTRIC CABLE
TUBE - crowd cylinder rear port, hyd system
1шт.
5/8" J.I.C. x 1/2" NPT, 90 degree male elbow (D218-485), crowd cyl hyd system
2шт.
38410
HOSE
(1/2" I.D.x 7/8" O.D. x 22-1/2"), crowd cyl hyd system
2шт.
38462
HOSE ASSY.
tube to crowd cylinder (Use 38410), hyd system
2шт.
D20043
CLAMP - crowd cylinder tubes, hyd system
2шт.
1/4" - 28NF x 1" hex. hd. cap screw (D14-416), crowd cyl hyd system
2шт.
1/4" lockwasher (D92-4), crowd cyl hyd system
2шт.
1/4" - 28NF hex. nut (D25-114), crowd cyl hyd system
2шт.
D21700
HOSE
valve to crowd cylinder tubes (1/2" I.D. x 7/8" O.D. x 65"), hyd system
2шт.
5/8" J.I.C. x 1/2" NPT, 45 degree male elbow; valve to D21700 hose (D218-535), crowd cyl hyd system
2шт.
D21712
TUBE - R.H., valve hose to crowd cylinder hose, hyd system
1шт.
D21713
TUBE - L.H., valve hose to crowd cylinder hose, hyd system
1шт.
19178
HOSE
(1/2" I.D. x 7/8" O.D. x 33-1/2"), bucket cyl hyd system
2шт.
31665
COLLAR CLAMP
tubes, bucket cyl hyd system
2шт.
5/16" - 24NF x 1-1/4" hex. hd. cap screw (D14-520), bucket cyl hyd system
1шт.
5/16" lockwasher (D92-5), bucket cyl hyd system
1шт.
5/16" - 24NF hex. nut (D25-115), bucket cyl hyd system
1шт.
35027
HYD TUBE
rear port, bucket cyl hyd system
1шт.
35195
TUBE - valve hose to (Use D21715), bucket cyl hyd system
2шт.
D20255
front port, bucket cyl hyd system
1шт.
1/2" NPT x 5/8" J.I.C., 90 degree male elbow, cylinder to tube (D218-485), bucket hyd system
1шт.
D21699
bulkhead, bucket cylinder hose 90 degree (7/8" - 14NF straight thread), hyd system
2шт.
7/8" - 14NF hex. jam nut (D25-1514), bucket cyl hyd system
2шт.
D21700
HOSE
valve to bucket cylinder tubes (1/2" I.D. x 7/8" O.D. x 65"), hyd system
2шт.
5/8" J.I.C. x 1/2" NPT, 45 degree male elbow, valve to D21700 hose (D218-535), bucket cyl hyd system
2шт.
D21715
valve hose to bucket cyl hyd system
2шт.
D23774
complete (See Figure 57 for breakdown), bucket cyl hyd system
1шт.
Выбрано товаров: 71
