Запчасти Case 310B (26) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS, (WITHOUT HIGH PRESSURE CARRY-OVER)

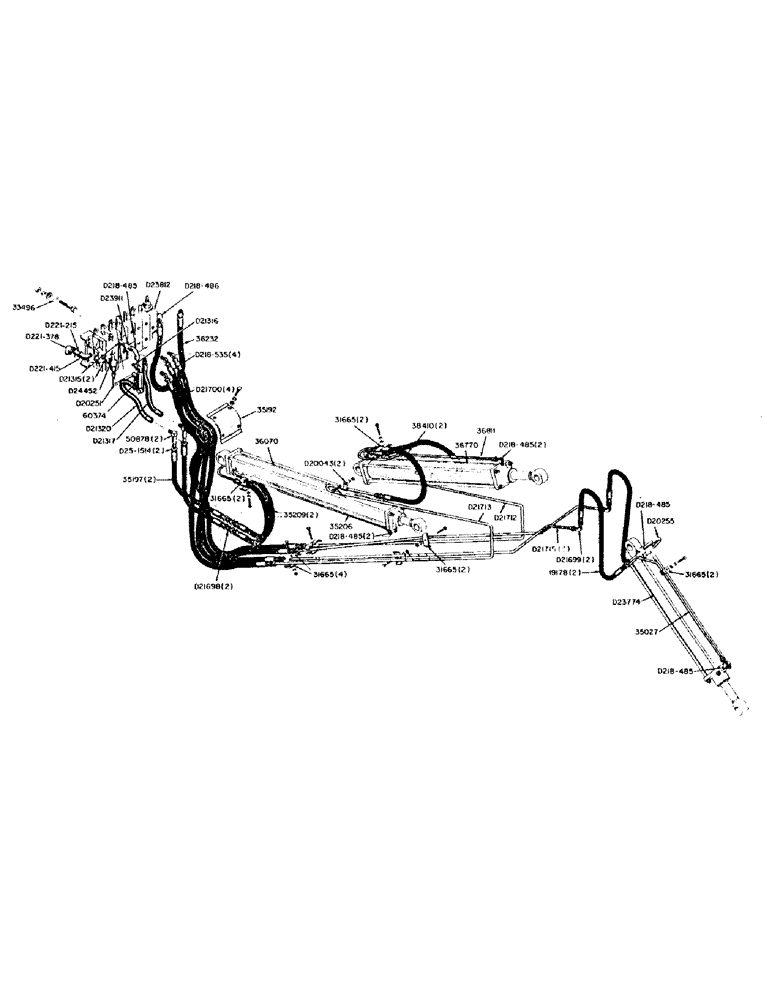

Схема запчастей Case 310B - (26) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS, (WITHOUT HIGH PRESSURE CARRY-OVER)

Артикул

Название

Примечание

Количество

NLS

NO LONGER SERVICED

valve mounting

1шт.

1/2" - 20NF x 2-1/2" hex. hd. cap screw (D14-840)

3шт.

1/2" plain washer (D195-33)

3шт.

1/2" lockwasher (D92-8)

3шт.

1/2" - 20NF hex. nut (D25-118)

3шт.

35192

BRACKET - hose mounting

1шт.

3/8" - 24NF x 1-3/4" hex. hd. cap screw (D14-628)

4шт.

3/8" lockwasher (D92-6)

4шт.

3/8" - 24NF hex. nut (D25-116)

4шт.

36232

HOSE ASSY.

valve to pump pressure line (3/4" I.D. x 1-5/32" O.D. x 32")

1шт.

3/4" J.I.C. x 3/4" NPT , 90 degree male elbow, valve to pump pressure line hose (D218-486)

1шт.

D20251

TUBE - valve to relief valve

1шт.

1/2" NPT x 5/8" J.I.C., 90 degree male elbow (D218-485)

1шт.

D21315

NIPPLE - (1/2" NPT x 3-1/2") pipe tee, and relief valve

2шт.

D23812

VALVE

hydraulic complete (See Figure 44 for breakdown)

1шт.

3/4" NPT, 90 degree street elbow (D221-415)

1шт.

3/4" NPT x 2" pipe nipple (D221-215)

1шт.

3/4" NPT pipe elbow (D221-378)

1шт.

D24452

VALVE

relief (See Figure 43 for breakdown)

1шт.

31665

COLLAR CLAMP

hose, boom cyl hyd system

2шт.

5/16" - 24 NF x 1-3/4" hex. hd. cap screw (D14-528), boom cyl hyd system

1шт.

5/16" lockwasher (92-5), boom cyl hyd system

1шт.

5/16" - 24NF hex. nut (D25-115), boom cyl hyd system

1шт.

D27478

HOSE ASSY.

bulkhead elbow to tower, boom cyl hyd system

2шт.

35206

boom cylinder rear port, hyd system

1шт.

5/8" J.I.C. x 1/2" NPT, 90 degree male elbow, boom cylinder ports (D218-485), hyd system

2шт.

35209

HOSE ASSY.

tower to boom cylinder (5/8" I.D. x 1" O.D. x 32"), hyd system

2шт.

36070

TOY

CYLINDER, boom, complete (See Figure 55 for breakdown), hyd system

1шт.

50878

ROLLER

ELBOW - 90 degree special, tubes to boom cylinder hoses, hyd system

2шт.

7/8" - 14NF hex. jam nut (D25-1514), boom cyl hyd system

2шт.

60374

VALVE

flow control (See Figure 41 for breakdown), boom cyl hyd system

1шт.

5/8" J.I.C. x 1/2" NPT, 90 degree male elbow (D218-485), boom cyl hyd system

1шт.

1/2" NPT, 90 degree street elbow (D221-414), boom cyl hyd system

1шт.

D21316

NIPPLE - pipe (1/2" NPT x 2" extra strong) backhoe valve to flow control , boom cyl hyd system

1шт.

D21317

pipe tee to R.H. male elbow (1/2" I.D. x 7/8" O.D. x 22-1/2"), boom cyl hyd system

1шт.

D21320

HOSE - flow control valve to L.H. male elbow (1/2" I.D. x 7/8" O.D. x 15"), boom cyl hyd system

1шт.

D21698

UNION

bulkhead tower, boom cylinder hoses, hyd system

2шт.

D23911

FITTING

TEE - female, (1/2" NPT) boom down pressure, cyl hyd system

1шт.

D24452

VALVE

relief (See Figure 43 for breakdown), boom cyl hyd system

1шт.

31665

COLLAR CLAMP

dipper arm and bucket cylinder tubes, crowd cyl hyd system

8шт.

5/16" - 24NF x 1-3/4" hex. hd. cap screw (D14-528), crowd cyl hyd system

5шт.

5/16" lockwasher (D92-5), crowd cyl hyd system

5шт.

5/16" - 24NF hex. nut (D25-115), crowd cyl hyd system

5шт.

36770

complete (See Figure 56 for breakdown), crowd cyl hyd system

1шт.

36811

ELECTRIC CABLE

TUBE - crowd cylinder rear port, hyd system

1шт.

5/8" J.I.C. x 1/2" NPT, 90 degree male elbow (D218-485), crowd cyl hyd system

2шт.

38410

HOSE

(1/2" I.D. x 7/8" O.D. x 22-1/2"), crowd cyl hyd system

2шт.

D20043

CLAMP - crowd cylinder tubes, hyd system

2шт.

1/4" - 28NF x 1" hex. hd. cap screw (D14-416), crowd cyl hyd system

2шт.

1/4" lockwasher (D92-4), crowd cyl hyd system

2шт.

1/4" - 28NF hex. nut (D25-114), crowd cyl hyd system

2шт.

D21700

HOSE

valve to crowd cylinder tubes (1/2" I.D. x 7/8" O.D. x 65"), hyd system

2шт.

5/8" J.I.C. x 1/2" NPT, 45 degree male elbow, valve to D21700 hose (D218-535), crowd cyl hyd system

2шт.

D21712

TUBE - R.H. valve hose to crowd cylinder hose, hyd system

1шт.

D21713

TUBE - L.H. valve hose to crowd cylinder hose, hyd system

1шт.

19178

HOSE

bucket cylinder (1/2" I.D. x 7/8" O.D. x 33-1/2"), hyd system

2шт.

31665

COLLAR CLAMP

bucket cylinder tubes, hyd system

2шт.

5/16" - 24NF x 1-1/4" hex. hd. cap screw (D14-520), bucket cyl hyd system

1шт.

5/16" lockwasher (D92-5), bucket cyl hyd system

1шт.

5/16" - 24NF hex. nut (D25-115), bucket cyl hyd system

1шт.

35027

HYD TUBE

rear port, bucket cyl hyd system

1шт.

1/2" NPT x 5/8" J.I.C. male elbow cylinder to tube (D218-485), buckethyd system

1шт.

D20255

front port, bucket cyl hyd system

1шт.

1/2" NPT x 5/8" J.I.C., 90 degree male elbow, cylinder to tube (D218-485), bucket hyd system

1шт.

D21699

90 degree bulkhead, hose (7/8" - 14 NF straight head), bucket cyl hyd system

2шт.

D21700

HOSE

valve to tubes (1/2" I.D. x 7/8" O.D. x 65"), bucket cyl hyd system

2шт.

D21715

valve hose to , bucket cyl hyd system

2шт.

D23774

complete (See Figure 57 for breakdown), bucket cyl hyd system

1шт.
