Запчасти Case 310B (18) - PRIMARY HYDRAULIC SYSTEM, (REAR MOUNTED FILTER WITHOUT EQUALIZER TUBES)

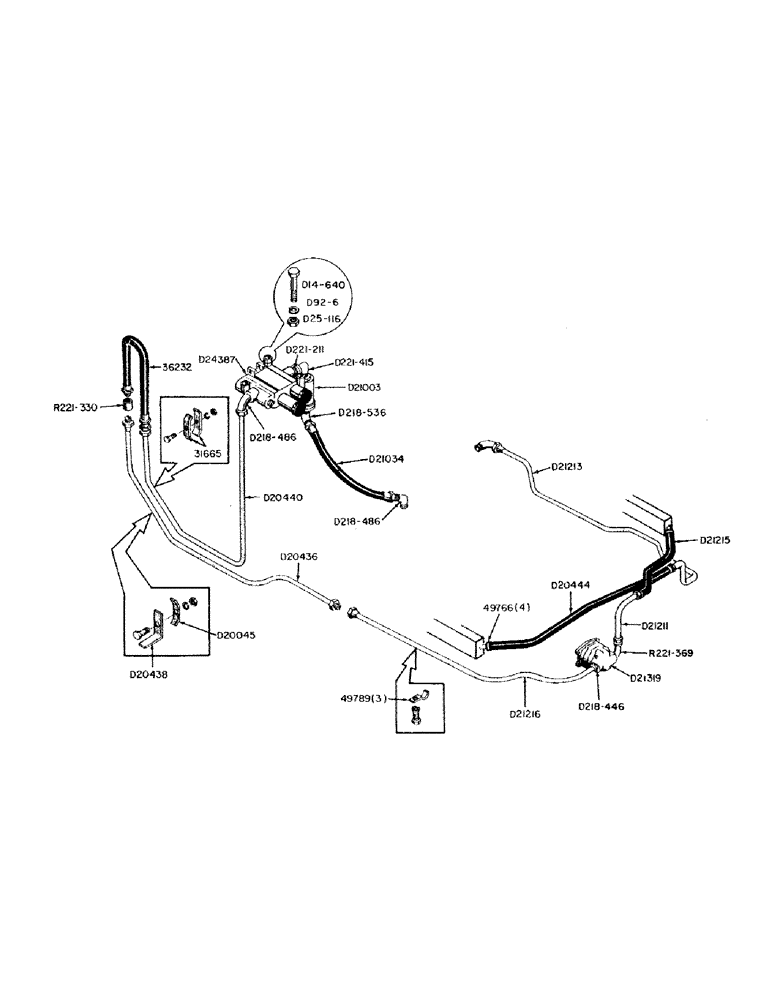

Схема запчастей Case 310B - (18) - PRIMARY HYDRAULIC SYSTEM, (REAR MOUNTED FILTER WITHOUT EQUALIZER TUBES)

Артикул

Название

Примечание

Количество

31614

PUMP - hydraulic (Use D21319) (See Figure 37 for breakdown)

1шт.

31665

COLLAR CLAMP

CLAMP - tube

1шт.

5/16" - 24NF x 1-3/4" hex. hd. cap screw (D14-528)

1шт.

5/16" lockwasher (D92-5)

1шт.

5/16" - 24NF hex. nut (D25-115)

1шт.

36232

HOSE ASSY.

HOSE - backhoe valve to loader valve pressure tube (3/4" I.D. x 1-5/32" O.D. x 28")

1шт.

3/4" NPT pipe coupling pump pressure line to 36232 hose (R221-330)

1шт.

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, pump suction line

4шт.

49789

CLAMP

- tube, pump pressure line

3шт.

1/4" - 28NF x 1/2" hex. hd. cap screw (D14-48)

3шт.

1/4" lockwasher (D92-4)

3шт.

D20045

PLATE ASSY.

CLAMP - tube

1шт.

5/16" - 24NF x 1-3/4" hex. hd. cap screw (D14-528)

1шт.

5/16" lockwasher (D92-5)

1шт.

5/16" - 24NF hex. nut (D25-115)

1шт.

D20436

TUBE - pressure line, rear section

1шт.

D20438

BRACKET - pump pressure line clamp

1шт.

D20440

TUBE - pressure, backhoe valve to loader valve

1шт.

D20444

HOSE - low pressure, joins R.H. and L.H. hydraulic reservoir

1шт.

D21003

FILTER

- hydraulic oil (See Figure 35 for breakdown)

1шт.

3/4" J.I.C. x 3/4" NPT, 45 degrees male elbow (D218-536)

1шт.

D21034

HOSE - filter to reservoir (3/4" I.D. x 1-5/32" O.D. x 22")

1шт.

3/4" NPT x 3/4" J.I.C., 90 degrees male elbow, hose to reservoir (D218-486)

1шт.

D21211

TUBE - pump inlet from reservoir

1шт.

D21213

TUBE - R.H. to L.H. reservoir

1шт.

D21215

LARGE HOSE

HOSE - pump inlet (1" I.D. x 1-1/2" O.D. x 7-1/2")

1шт.

D21216

TUBE - pressure line from pump

1шт.

D21319

PUMP - hydraulic (Webster 2XES1-L 19 G.P.M.) (See Figure 38 for breakdown)

1шт.

3/4" NPT, 45 degrees elbow on L.H. side of pump (R221-369)

1шт.

3/4" straight fitting on R.H. side of pump (D218-446)

1шт.

1/2" - 20NF x 2-1/2" hex. hd. cap screw (D14-840)

4шт.

1/2" lockwasher (D92-8)

4шт.

1/2" - 20NF hex. nut (D25-118)

4шт.

D24387

SPOOL

VALVE - hydraulic, complete (Does not include handles)

1шт.

3/8" - 24NF x 2-1/2" hex. hd. cap screw (D14-640)

3шт.

3/8" lockwasher (D92-6)

3шт.

3/8" - 20NF hex. nut (D25-116)

3шт.

3/4" NPT, 90 degrees street elbow (D221-415)

1шт.

3/4" NPT pipe nipple, close (Loader valve return) (D221-211)

1шт.

Выбрано товаров: 39
