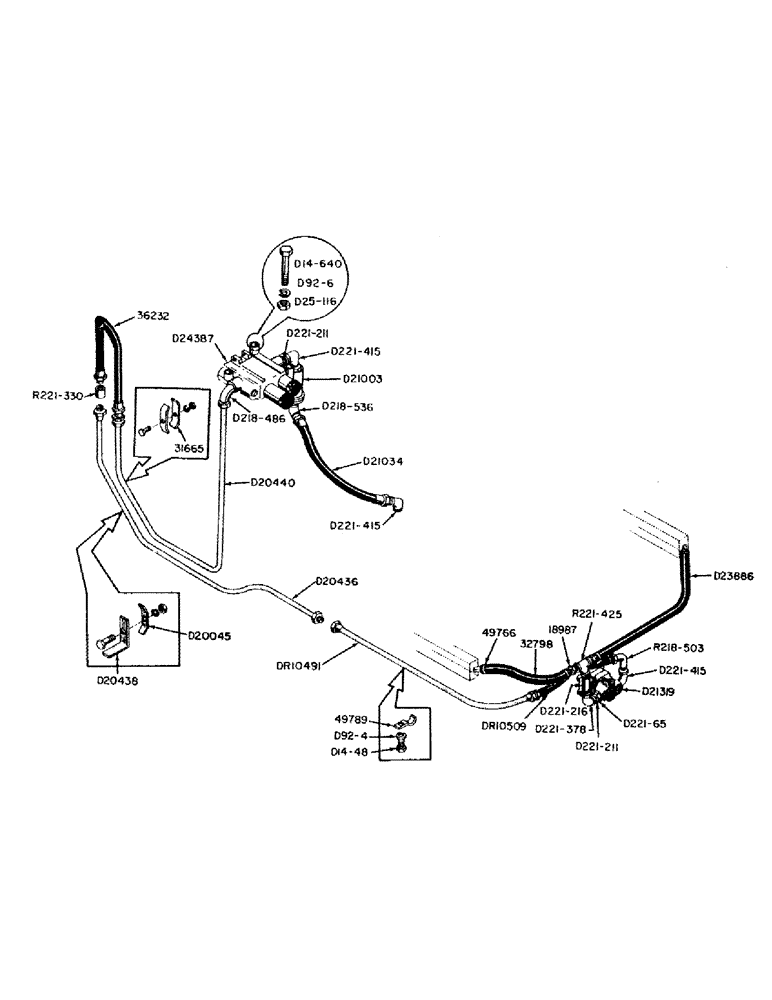

Запчасти Case 310 (16) - PRIMARY HYDRAULIC SYSTEM, (FRONT MOUNTED FILTER WITH EQUALIZER TUBES)

18987

TUBE - pump section line

2шт.

3/4" NPT pipe tee (R221-425)

1шт.

3/4" NPT x 2-1/2" pipe nipple (D221-216)

1шт.

3/4" NPT pipe elbow (D221-378)

1шт.

3/4" NPT x 1-3/8" pipe nipple (D221-211)

1шт.

1" NPT to 3/4" NPT reducer bushing (D221-65)

1шт.

31614

PUMP - hydraulic (Use D21319) (See Figure 37 for breakdown)

1шт.

31665

COLLAR CLAMP

CLAMP - tube

2шт.

5/16" - 24NF x 1-3/4" hex. hd. cap screw (D14-528)

1шт.

5/16" lockwasher (D92-5)

1шт.

5/16" - 24NF hex. nut (D25-115)

1шт.

32798

HOSE

- R.H. reservoir to pump suction line tee (1" I.D. x 1-1/2" O.D. x 6")

1шт.

36232

HOSE ASSY.

HOSE - backhoe valve to loader valve pressure tube (3/4" I.D. x 1-5/32" O.D. x 28")

1шт.

3/4" NPT pipe coupling (R221-330)

1шт.

49766

AUGER

CLAMP - hose, pump suction line

4шт.

49789

CLAMP

- tube (DR10491 tube)

3шт.

1/4" - 28NF x 1/2" hex. hd. cap screw (D14-48)

3шт.

1/4" lockwasher (D92-4)

3шт.

D20045

PLATE ASSY.

CLAMP - tube

1шт.

3/16" - 24NF x 1-3/4" hex. hd. cap screw (D14-528)

1шт.

5/16" lockwasher (D92-5)

1шт.

5/16" - 24NF hex. nut (D25-115)

1шт.

D20436

TUBE - pressure line to backhoe valve hose

1шт.

D20438

BRACKET - pump pressure lines

1шт.

D20440

TUBE - pressure, backhoe valve to loader valve

1шт.

3/4" J.I.C. x 3/4" NPT, 90 degrees male elbow, tube to loader valve (D218-486)

1шт.

D21003

FILTER

- hydraulic oil (Rear mounted) (See Figure 35 for breakdown)

1шт.

3/4" J.I.C. x 3/4" NPT, 45 degrees male elbow (D218-536)

1шт.

D21034

HOSE - rear mounted filter to reservoir (3/4" I.D. x 1-5/32" O.D. x 22")

1шт.

D21319

PUMP - hydraulic (Webster 2XES1-L 19 G.P.M.) (See Figure 38 for breakdown)

1шт.

1/2" - 20NF x 2-1/2" hex. hd. cap screw (D14-840)

4шт.

1/2" lockwasher (D92-8)

4шт.

1/2" - 20NF hex. nut (D25-118)

4шт.

D23886

HOSE

- L.H. reservoir to pump suction line (1" I.D. x 1-1/2" O.D. x 17")

1шт.

D24387

SPOOL

VALVE - hydraulic, complete (Does not include handles)

1шт.

3/8" - 24NF x 2-1/2" hex. hd. cap screw (D14-640)

3шт.

3/8" lockwasher (D92-6)

3шт.

3/8" - 24NF hex. nut (D25-116)

3шт.

3/4" NPT pipe nipple, close, loader valve return (D221-211)

1шт.

3/4" NPT, 90 degrees street elbow (D221-415)

1шт.

DR10491

TUBE - pump pressure line

1шт.

DR10509

HOSE - pump to pump pressure tube (3/4" I.D. x 1-5/32" O.D. x 12-1/4")

1шт.

3/4" NPT street elbow (D221-415)

1шт.

3/4" J.I.C. x 3/4" NPT, 90 degrees extra long male elbow, pump pressure line (R218-503)

1шт.
