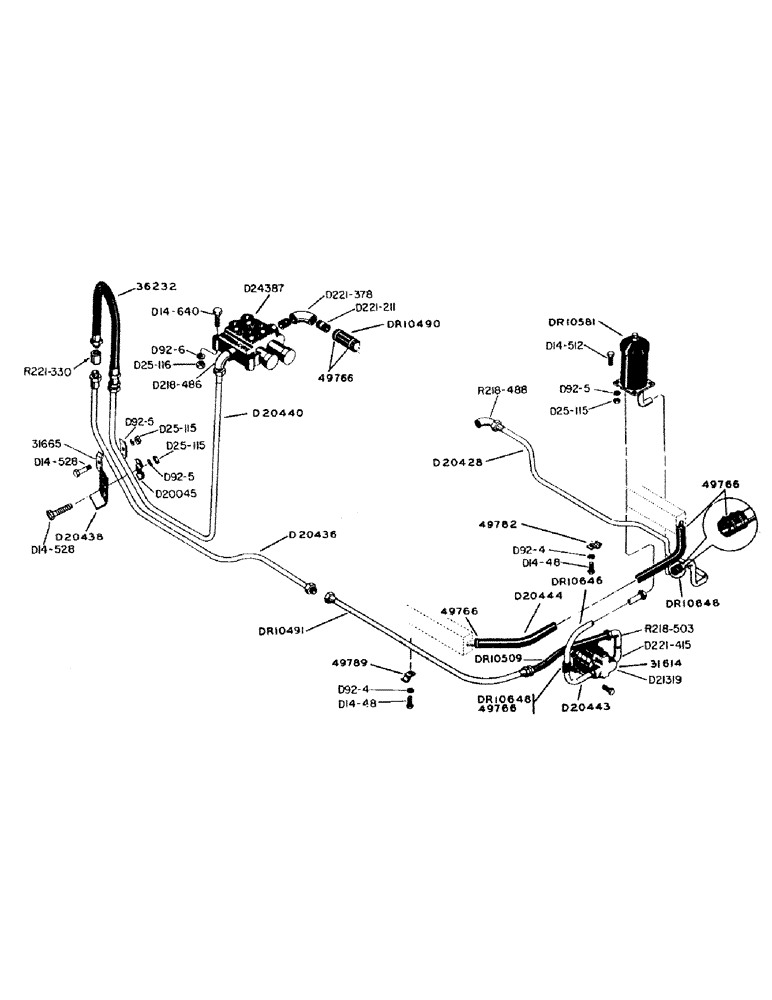

Запчасти Case 310 (14) - PRIMARY HYDRAULIC SYSTEM, (FRONT MOUNTED FILTER WITHOUT EQUALIZER TUBES)

31665

COLLAR CLAMP

CLAMP - tube

2шт.

5/16" - 24NF x 1-3/4" hex. hd. cap screw (D14-528)

1шт.

5/16" lockwasher (D92-5)

1шт.

5/16" - 24NF hex. nut (D25-115)

1шт.

36232

HOSE ASSY.

HOSE - backhoe valve to loader valve pressure tube (3/4" I.D. x 1-5/32" O.D. x 28")

1шт.

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, pump section and return lines

8шт.

49782

CLAMP - tube (D20428 tube)

2шт.

1/4" - 28NF x 1/2" hex. hd. cap screw (D14-48)

2шт.

1/4" lockwasher (D92-4)

2шт.

49789

CLAMP

- tube (DR10491 tube)

3шт.

1/4" - 28NF x 1/2" hex. hd. cap screw (D14-48)

3шт.

1/4" lockwasher (D92-4)

3шт.

D20045

PLATE ASSY.

CLAMP - tube

1шт.

5/16" - 24NF x 1-3/4" hex. hd. cap screw (D14-528)

1шт.

5/16" lockwasher (D92-5)

1шт.

5/16" - 24NF hex. nut (D25-115)

1шт.

D20428

TUBE -, Serial Range: reservoir-filter

1шт.

1" J.I.C. x 1" NPT, 90 degrees male elbow (R218-448)

1шт.

D20436

TUBE - pressure line to backhoe valve

1шт.

D20438

BRACKET - pump pressure line

1шт.

D20440

TUBE - pressure, backhoe valve to loader valve

1шт.

3/4" J.I.C. x 3/4" NPT, 90 degrees male elbow (D218-486)

1шт.

D20443

TUBE - pump inlet

1шт.

D20444

HOSE - low pressure, joins R.H. and L.H. hydraulic reservoirs (1" I.D. x 1-1/2" O.D. x 28-1/2")

1шт.

D21319

PUMP - hydraulic (Webster 2XES1-L 19 G.P.M.) (See Figure 38 for breakdown)

1шт.

1/2" - 20NF x 2-1/2" hex. hd. cap screw (D14-840)

4шт.

1/2" lockwasher (D92-8)

4шт.

1/2" - 20NF hex. nut (D25-115)

4шт.

3/4" NPT, 90 degrees street elbow (D221-415)

1шт.

3/4" J.I.C. x 3/4" NPT extra long male elbow (R218-503)

1шт.

D24387

SPOOL

VALVE - hydraulic, complete (Does not includes handles)

1шт.

3/8" - 24NF x 2-1/2" hex. hd. cap screw (D14-640)

3шт.

3/8" lockwasher (D92-6)

3шт.

3/8" - 24NF hex. nut (D25-116)

3шт.

3/4" NPT pipe nipple, close (D221-211)

2шт.

3/4" J.I.C. x 3/4" NPT male elbow, loader valve return (D218-486)

1шт.

3/4" NPT pipe elbow, loader valve return (D221-378)

1шт.

DR10490

HOSE - connection, tube (Loader valve return line)

1шт.

DR10491

TUBE - pressure line from pump

1шт.

DR10509

HOSE - pump pressure line (1/2" I.D. x 7/8" O.D. x 12-1/4")

1шт.

DR10581

FILTER - hydraulic (Front mounted) (See Figure 34 for breakdown)

1шт.

5/16" - 24 NF x 3/4" hex. hd. cap screw (D14-512)

4шт.

5/16" lockwasher (D92-5)

4шт.

5/16" - 24NF hex. nut (D25-115)

4шт.

DR10646

TUBE -, Serial Range: filter-pump

1шт.

DR10648

HOSE - connector, tube (Filter inlet and outlet)

2шт.
