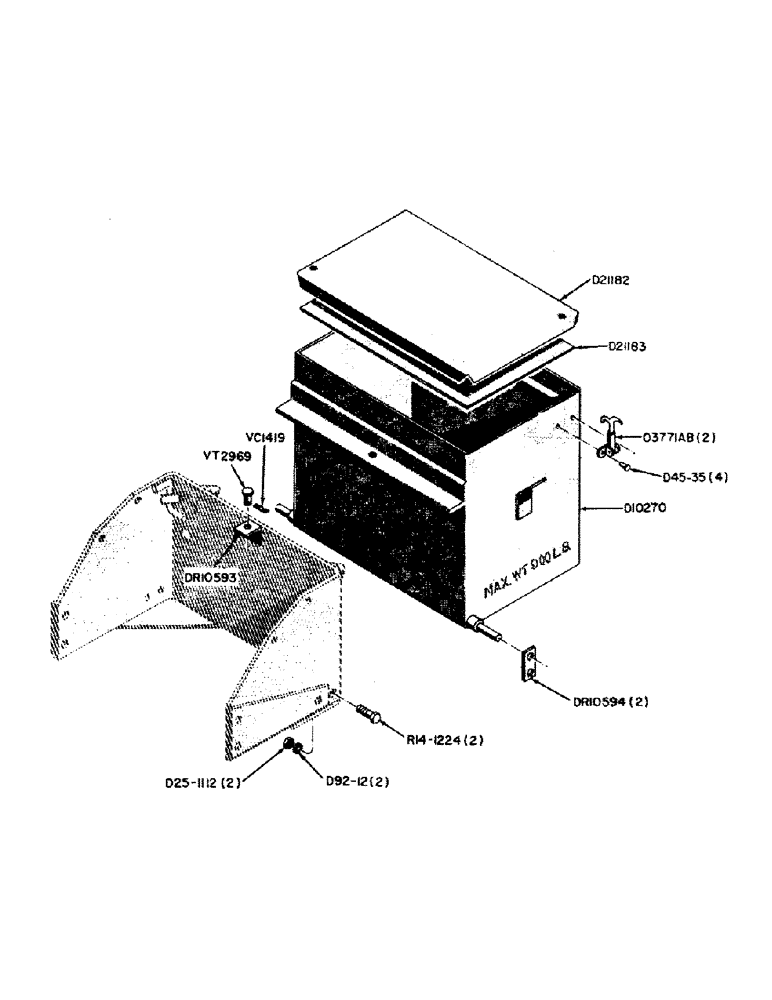

Запчасти Case 310 (58) - 900 LB. WEIGHT BOX (TRACTOR WITH BACKHOE REMOVED)

03771AB

CATCH - lid

2шт.

3/16" x 5/16" button head rivet (D45-35)

4шт.

VT2969

X

PIN - upper bracket

1шт.

VC1419

X

PIN - hair

1шт.

D10270

BOX - weight (Complete with lid, shelf, and catches)

1шт.

D21182

LID - weight box

1шт.

D21183

SHELF - wieght box

1шт.

DR10593

BRACKET - upper

1шт.

DR10594

STRAP - support, lower

2шт.

3/4" - 16NF x 1-1/2" hex. hd. cap screw (R14-1224)

2шт.

3/4" lockwasher (D92-12)

2шт.

3/4" - 16NF hex. nut (D25-1112)

2шт.
