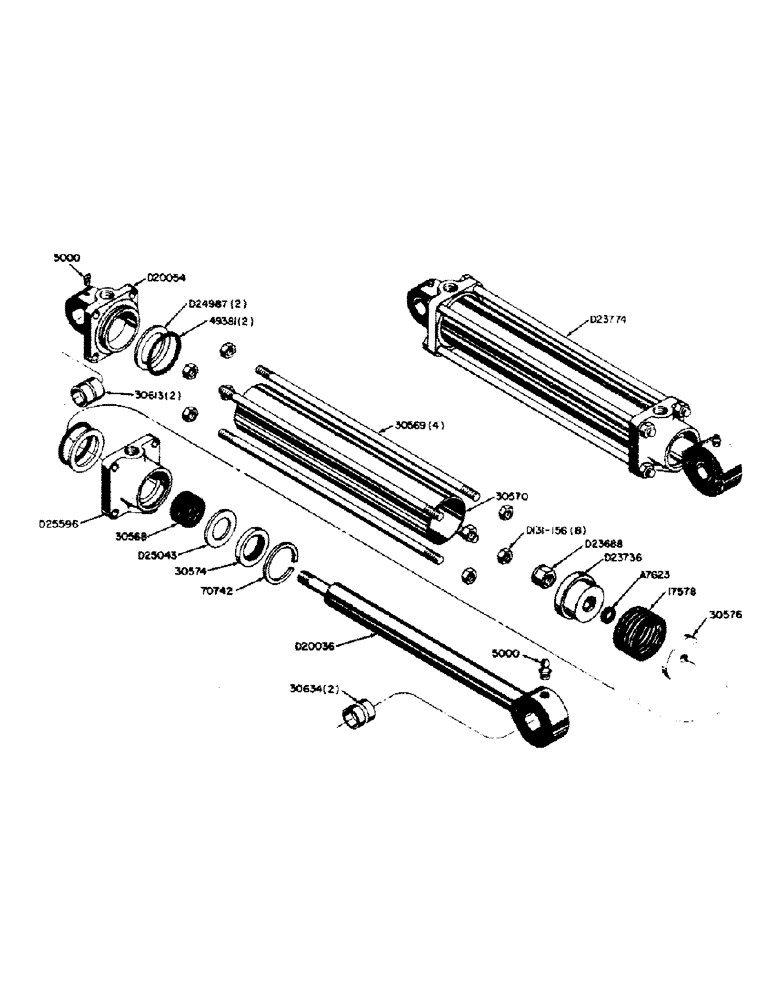

Запчасти Case 310 (57) - D23774 HYDRAULIC BUCKET CYLINDER

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - O-ring, piston to piston rod

1шт.

17578

PACKING

- piston

1шт.

30530

BOLT,Hex Flg, 5/16" - 18 x 2 1/4"

CYLINDER - hydraulic (Complete) (Use D23774) (Not shown)

1шт.

30567

FLANGE

CAP - cylinder end (Has no. 30567 on castings) (See D25596) (Not shown)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24987 backup ring, as replacement end has .210" wide O-ring grooves.

1шт.

30568

PACKING

- piston rod

1шт.

30569

ROD

- tie

4шт.

1/2" - 20NF locknut (D131-156)

8шт.

30570

DRAWBAR

TUBE - cylinder

1шт.

30574

WIPER SEAL

SEAL - piston rod wiper

1шт.

NLS

NO LONGER SERVICED

WASHER - piston packing

1шт.

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - O-ring, cylinder ends to tube

2шт.

70741

X

WASHER - piston rod packing (Used with 30567 cylinder end cap) (Not shown)

1шт.

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

D20036

ROD

PISTON ROD - (Includes 2 - 30634 bushings)

1шт.

1/8" NPT straight grease fitting (Lincoln no. 5000)

1шт.

D20054

END - cylinder (Includes 2 - 30634 bushings)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24987 backup ring, as replacement end has .210" wide O-ring grooves.

1шт.

1/8" NPT straight grease fitting (Lincoln no. 5000)

1шт.

D23688

X

LOCKNUT - piston rod

1шт.

D23736

PISTON - cylinder

1шт.

D23774

CYLINDER - hydraulic (Complete)

1шт.

D24987

RING

- backup, leather (Used only with cylinder end or cap which have .210" wide O-ring grooves)

2шт.

D25043

WASHER

- piston rod packing (Used with D25596 cylinder end cap only)

1шт.

D25495

RING

- plastic backup (Field installed - used only with cylinder end or cap which have .185" wide O-ring groove) (Not shown)

2шт.

D25596

CAP - cylinder end (Has no. D25596 on casting) (See 30567)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24987 backup ring, as replacement end has .210" wide O-ring grooves.

1шт.
