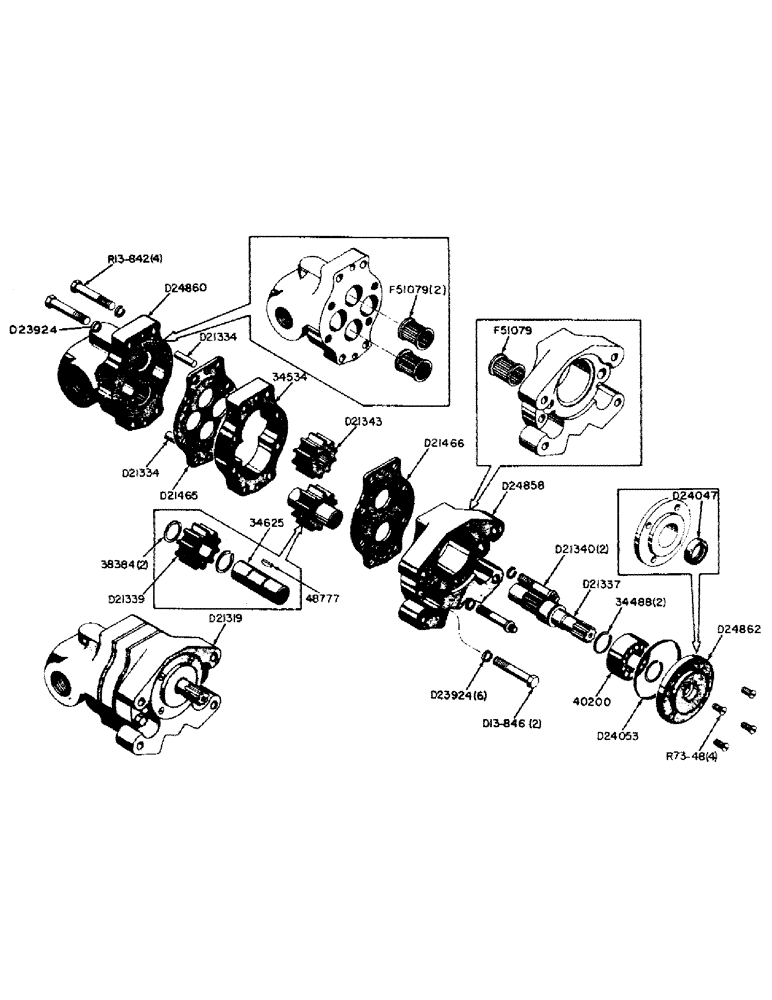

Запчасти Case 310 (39) - D21319 HYDRAULIC PUMP (19 G.P.M.), (CODE E-9 AND LATER)

F51079

NEEDLE BEARING

BEARING - needle (Torrington JH-1616-OH)

3шт.

34488

RING, SNAP

SNAP RING - bearing retaining

2шт.

34534

CAM

PLATE - gear

1шт.

34625

GUARD

SHAFT - idler gear

1шт.

38384

SNAP RING - idler gear

2шт.

40200

BEARING ASSY,1.1811" ID x 2.4409" OD x 0.9375"

- ball, drive shaft (ND no. 5206)

1шт.

48777

X

KEY - Woodruff, idler gear

1шт.

D21319

PUMP - hydraulic (Complete) Webster no. 2XESI-L, 19 G.P.M.

1шт.

D21334

PIN - dowel, pump cover and gear plate

2шт.

D21337

SHAFT - pump drive

1шт.

D21339

GEAR

- idler

1шт.

D21340

X

SCREW - body (1/2" - 13NC x 3" counterbore head)

2шт.

D21343

GEAR - drive

1шт.

D21465

PLATE - wear, pump cover and gear plate

1шт.

D21466

PLATE - wear, pump body and gear plate

1шт.

D23924

WASHER - lock

6шт.

D24047

SEAL

- oil, pilot plate (Double lip)

1шт.

D24053

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

SEAL - "O" ring, pilot, Serial Range: plate-body

1шт.

D24858

BODY - pump (Includes 1 - F51075 needle bearing)

1шт.

1/2" - 13NC x 2-5/8" hex. hd. cap screw (R13-842)

4шт.

1/2" - 13NC x 2-7/8" hex. hd. cap screw (D13-846)

2шт.

D24860

COVER - pump (Includes 2 - F51079 needle bearings)

1шт.

D24862

PLATE

- pilot (Includes 1 - D24047 oil seal)

1шт.

1/4" - 20NC x 1/2" flat hd. machine screw (R73-48)

4шт.
