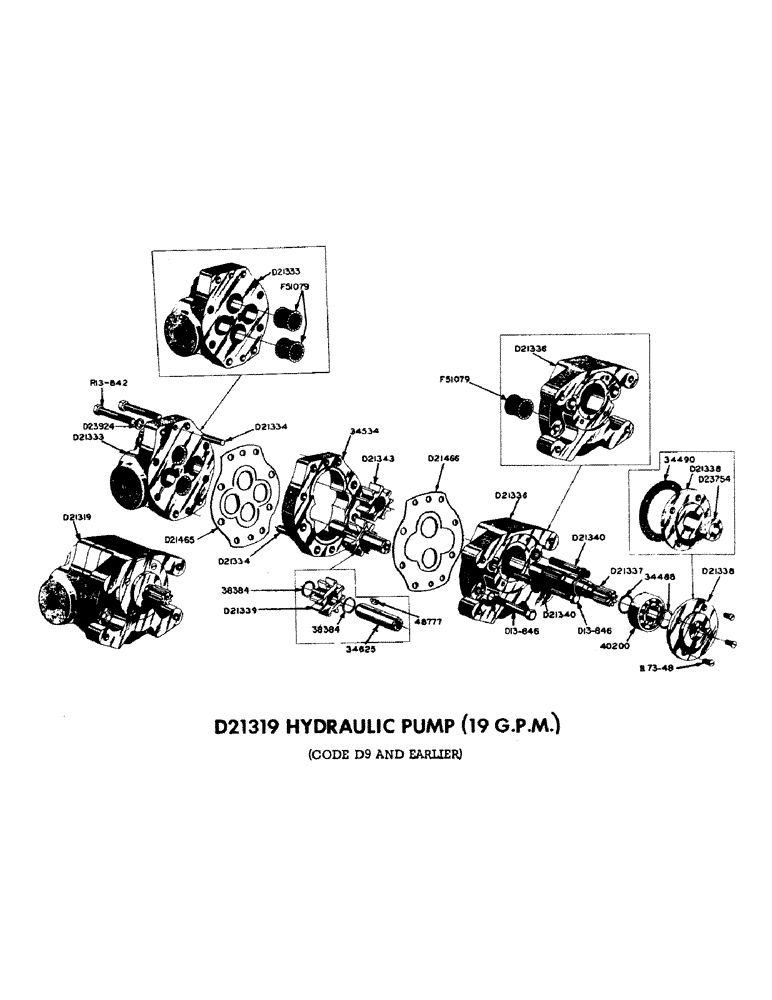

Запчасти Case 310 (38) - D21319 HYDRAULIC PUMP (19 G.P.M.), (CODE D9 AND EARLIER)

F51079

NEEDLE BEARING

BEARING - needle (Torrington JH-1616-OH)

3шт.

34488

RING, SNAP

SNAP RING - bearing retaining

2шт.

34490

SPRING

GASKET - pilot plate

1шт.

34534

CAM

PLATE - gear

1шт.

34625

GUARD

SHAFT - idler gear

1шт.

38384

SNAP RING - idler gear

2шт.

40200

BEARING ASSY,1.1811" ID x 2.4409" OD x 0.9375"

- ball, drive shaft (N.D. #5206)

1шт.

48777

X

KEY - Woodruff, idler gear

1шт.

D21319

PUMP - hydraulic (Complete) Webster #2XESI-L, 19 G.P.M.

1шт.

D21333

COVER - pump (Includes 2 - F51079 needle bearings)

1шт.

D21334

PIN, dowel, pump cover and gear plate

2шт.

D21336

X

BODY - pump (Includes 1 - F51079 needle bearings)

1шт.

1/2" - 13NC x 2-5/8" hex. hd. cap screw (R13-842)

4шт.

1/2" - 13NC x 2-7/8" hex. hd. cap screw (D13-846)

2шт.

D21337

SHAFT - pump drive

1шт.

D21338

PLATE

- pilot (Includes 1 - D23754 oil seal)

1шт.

1/4" - 20NC x 1/2" flat hd. machine screw (R73-48)

4шт.

D21339

GEAR

- idler

1шт.

D21340

X

SCREW - body (1/2" - 13NC x 3" counter bore head)

2шт.

D21343

GEAR - drive

1шт.

D21465

PLATE - wear, pump cover to gear plate

1шт.

D21466

PLATE - wear, pump body to gear plate

1шт.

D23754

X

SEAL - oil, pilot plate (Double lip)

1шт.

D23924

WASHER - lock

6шт.
